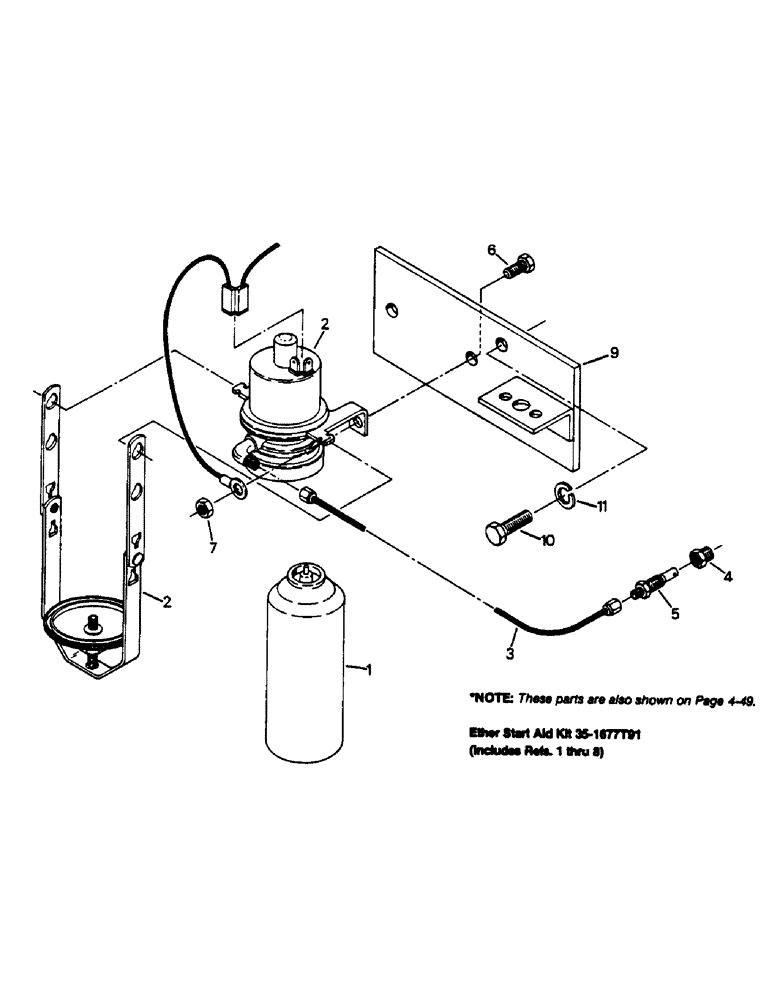

Запчасти Case IH 9130 (04-46) - ETHER START AID (04) - Drive Train

1

1-1392

FLUID

- ether start

1шт.

2

6-1600

SOLENOID

ASSEMBLY

1шт.

3

31-2667

TUBE

TUBING

1шт.

4

31-15

REDUCER,1/4"-18 Male NPTF x 1/8"-27 Female NPTF

ADAPTER, 1/4 NPT male x 1/8 NPT female

1шт.

5

6-1603

JET

ATOMIZER - ether fluid

1шт.

6

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

2шт.

7

19-508

LOCK NUT

- lock, 5/16 UNC G-B

2шт.

8

1964751C1

SWITCH

- rocker (Not shown) (See Figure 1-10 for proper switch location) (1-6154)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

9

90-6277T1

BRACKET

- solenoid mounting

1шт.

10

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

CAPSCREW, M10 x 1.5 x 20 MM

2шт.

11

19-118

LOCK WASHER,7/16"

7/16"

2шт.
