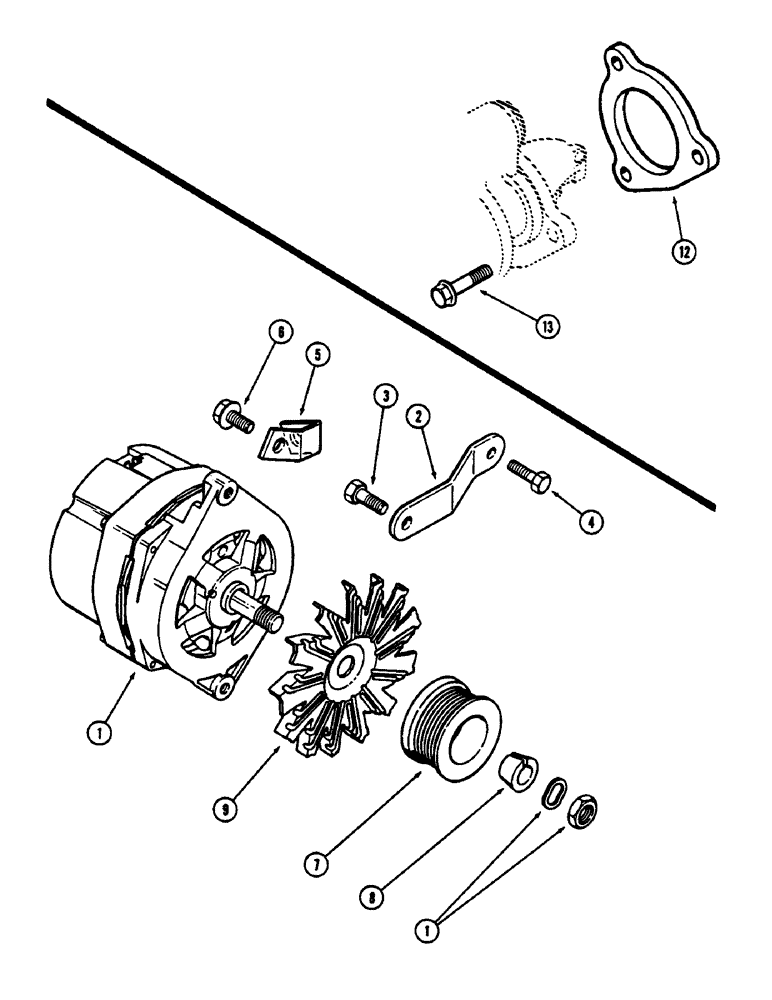

Запчасти Case IH 9130 (04-42) - ALTERNATOR MOUNTING (04) - Drive Train

1

REF

INSTRUCTION

ALTERNATOR - 12 volt, 105 ampere

1шт.

2

J907674

LINK

BRACE - alternator

1шт.

3

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, M10 x 1.5 x 25 MM

1шт.

4

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

5

J910278

BRACE

- alternator

1шт.

6

J903990

BOLT,Hex Flg, M10 x 20, 10.9

SCREW - hex

1шт.

7

J908560

PULLEY

- alternator

1шт.

8

J908563

RETAINER

- pulley

1шт.

9

221425R1

FAN

- alternator

1шт.

12

J908328

SPACER

- starter mounting

1шт.

13

A177921

BOLT,12 Pt Hd, M12 x 1.75 x 50mm, Gr 8.8

- starter to engine, mounting

3шт.
