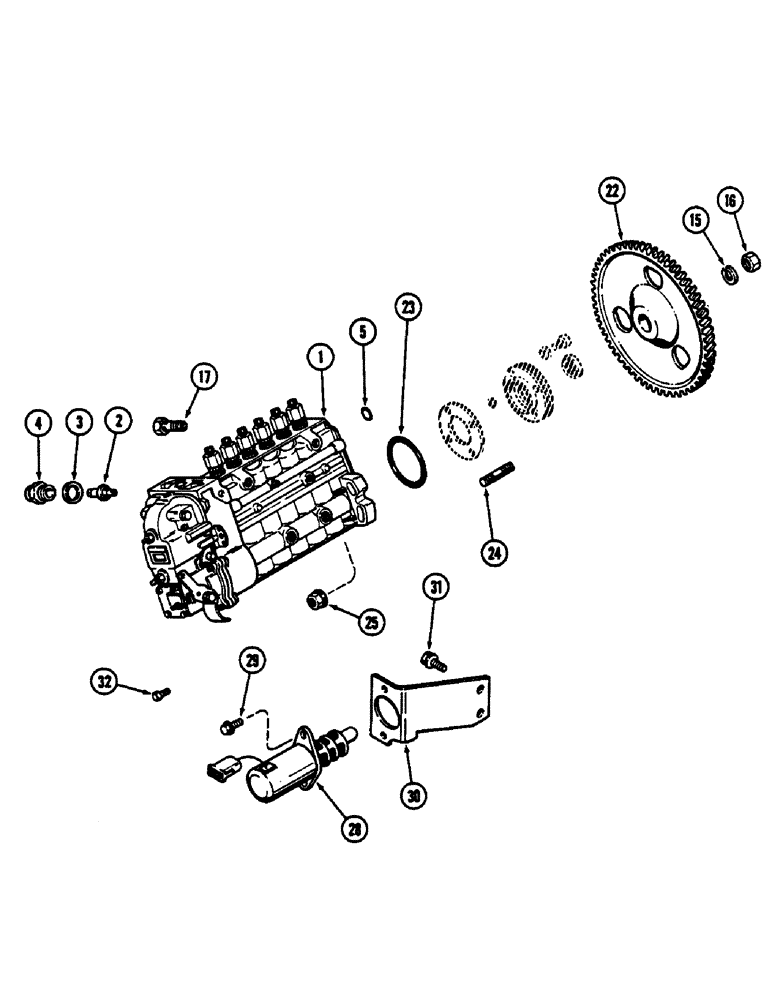

Запчасти Case IH 9130 (04-38) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE (04) - Drive Train

JR911265

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured (North America only), Includes: Ref. 2 - 17

1шт.

JC911265

CORE-INJECTION PUMP

RETURN NUMBER - injection pump (Use this part number to return pump core for credit)

1шт.

1

J911265

PUMP, FUEL INJECTION

PUMP ASSEMBLY - injection, fuel (New), Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - timing

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - plug

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - timing

1шт.

5

J910501

O-RING

- port, oil

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - banjo

1шт.

22

J912615

GEAR

- pump, fuel

1шт.

23

A41856

O-RING,3mm Thk x 75mm ID

- sealing (Replaces J910502)

1шт.

24

J907978

STUD

- mounting, pump

4шт.

25

J902662

FLANGE NUT

- hex flange, M10

4шт.

28

J914093

SOLENOID

- shut off, fuel (12 volt)

1шт.

J906649

NUT

- crown

1шт.

29

J902261

BOLT,Hex Flg

- hex flange, M6 x 16 MM

2шт.

30

J913299

BRACKET

- mounting, solenoid

1шт.

31

J903990

BOLT,Hex Flg, M10 x 20, 10.9

- hex flange, M10 x 20 MM

2шт.

32

J910768

BOLT

- hex, ground wire

1шт.
