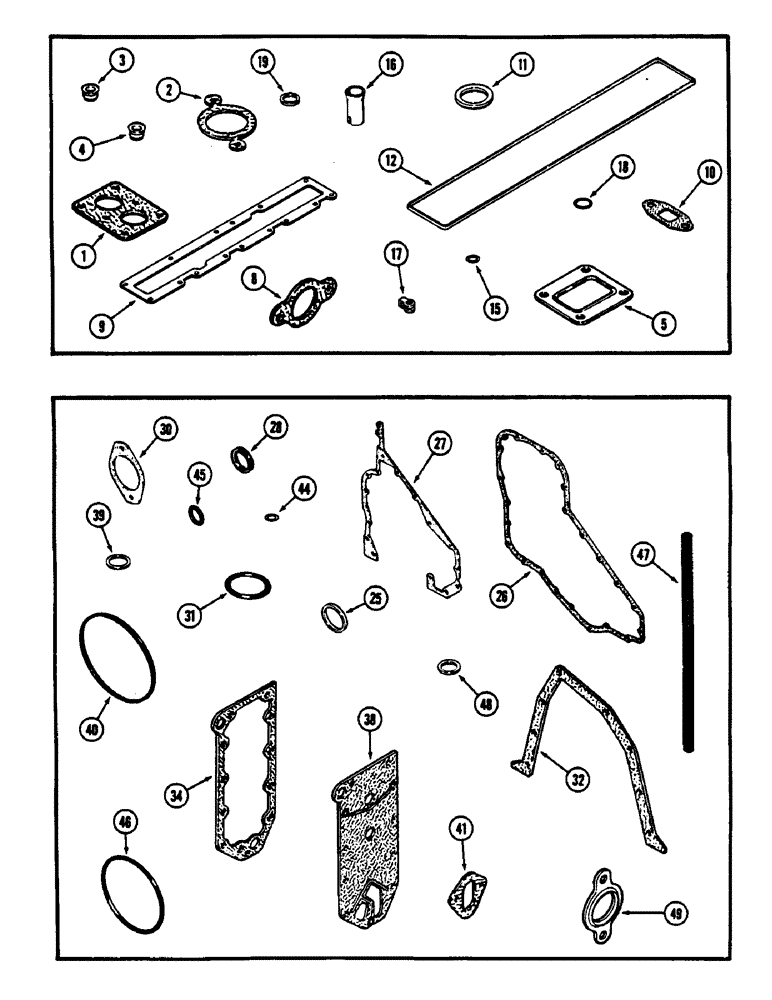

Запчасти Case IH 9130 (04-32) - ENGINE GASKET KITS, 6TA-830 ENGINE, VALVE GRIND (04) - Drive Train

A77630

GASKET KIT

- valve grind, Includes: Ref. 1 - 19

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 4-14.

1шт.

1

J910505

GASKET

- cover, thermostat housing

1шт.

2

J909919

GASKET

- connection, water outlet

1шт.

3

J904579

SEAL

- steam, intake valve

6шт.

4

J904578

SEAL

- steam, exhaust valve

6шт.

5

J907973

GASKET

- mounting, turbocharger

1шт.

8

J911942

GASKET

- manifold, exhaust

6шт.

9

J910779

MANIFOLD GASKET

- manifold, intake

1шт.

10

J901805

GASKET

- tube, turbocharger drain

1шт.

11

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil fill cap

1шт.

12

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover, rocker

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

16

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

17

J903380

SEAL

- connector, banjo

6шт.

18

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- breather tube

1шт.

19

J906659

SEAL

- injection nozzle

1шт.

A77631

SEAL PACKAGE

GASKET KIT - cylinder block, Includes: Ref. 25 - 49

1шт.

For complete engine overhaul, order 1 - valve grind kit 1 - cylinder block kit, 1 - oil pan kit Figure 4-30, front and rear crankshaft seal kit Figure 4-24 and required cylinder head gasket Figure 4-14.

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, front, cylinder block

1шт.

26

J906612

GASKET

- cover, front, cylinder block

1шт.

27

J907623

GASKET

- housing, front gear, cylinder block

1шт.

28

J906693

GASKET

O-RING - housing, timing pin, cylinder block

1шт.

30

J910055

GASKET

- cover, accessory drive, cylinder block

1шт.

31

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - mounting, water pump, cylinder block

1шт.

32

J901734

GASKET

- cover, rear, cylinder block

1шт.

34

J908332

GASKET

- cover, oil cooler, cylinder block

1шт.

38

J908333

GASKET

- cover, oil cooler, cylinder block

1шт.

39

J901798

SEALING WASHER

WASHER - sealing, regulator plug, cylinder block

1шт.

40

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- housing flywheel, cylinder block

1шт.

41

J904044

GASKET

- mounting, lift pump, cylinder block

1шт.

44

J901837

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, rocker arm, cylinder block

6шт.

45

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- plug, flywheel housing, cylinder block

1шт.

46

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, cylinder block

6шт.

47

J907739

HOSE ASSY.

HOSE - breather, cylinder block

1шт.

48

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil filter cap, cylinder block

1шт.

49

J906719

MANIFOLD GASKET

- manifold, exhaust, cylinder block

1шт.

J903927

O-RING,15.6 mm ID

cylinder block

1шт.
