Запчасти Case IH 9130 (04-26) - FLYWHEEL AND HOUSING, 6TA-830 ENGINE (04) - Drive Train

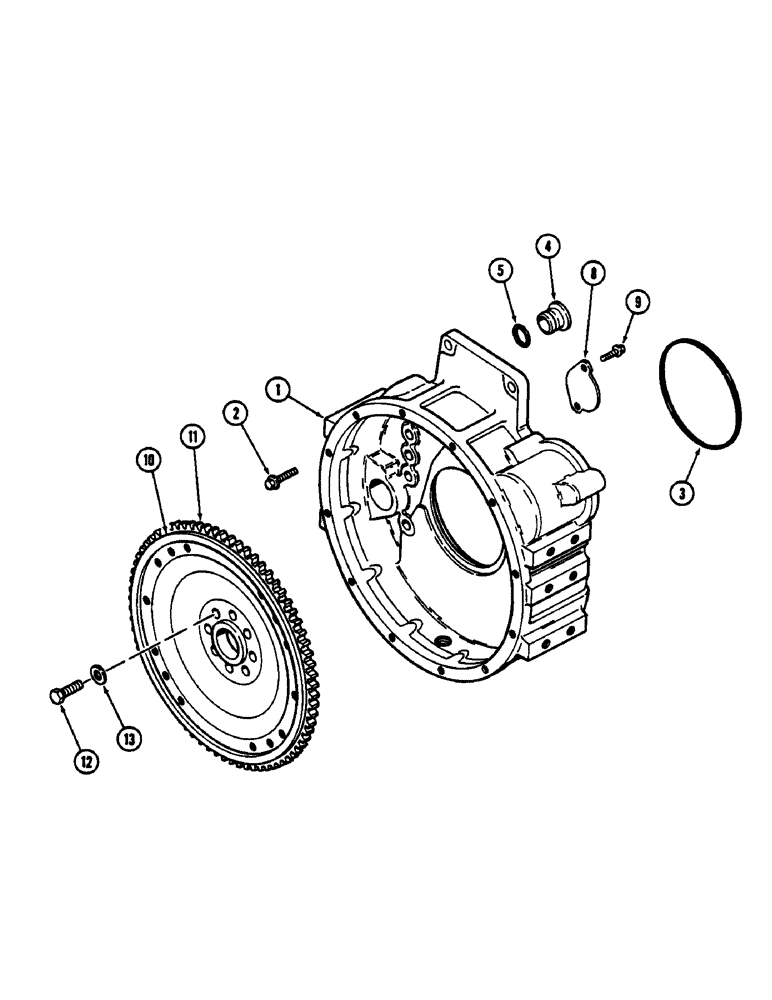

Схема запчастей Case IH 9130 - (04-26) - FLYWHEEL AND HOUSING, 6TA-830 ENGINE (04) - Drive Train
2
3
12
11
8
13
5
4
6
10
9

Артикул

Название

Примечание

Количество

1

J906689

HOUSING

- flywheel

1шт.

2

J910540

FLANGE BOLT,Hex, M12 x 40mm, Cl 10.9

BOLT - hex flange, M12 x 40 MM

12шт.

3

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- housing

1шт.

4

J910248

PLUG

- hole, barring

1шт.

5

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- sealing

1шт.

8

J908095

PLATE

- cover

1шт.

9

J902735

BOLT,M8 - 1.25 x 21 mm

SCREW - self tapping

2шт.

10

J906809

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 11

1шт.

11

J902127

FLYWHEEL

GEAR - ring, flywheel

1шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex cup, M12 x 32 mm

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, mounting

8шт.

Выбрано товаров: 11
