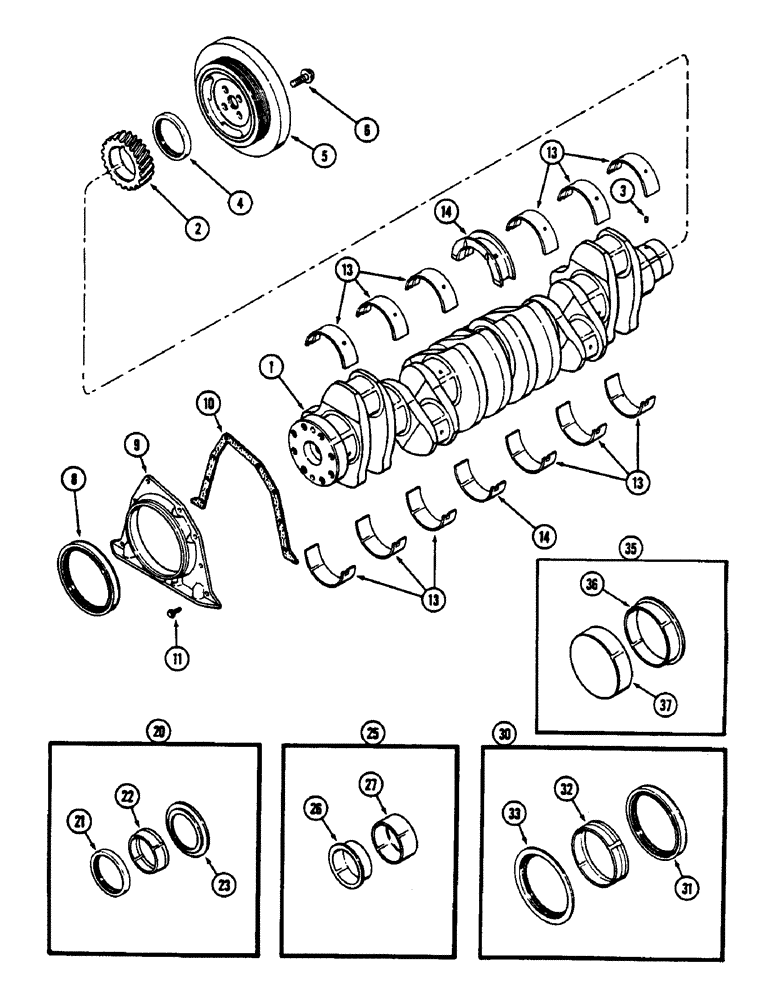

Запчасти Case IH 9130 (04-24) - CRANKSHAFT, 6TA-830 ENGINE (04) - Drive Train

JR904363

CRANKSHAFT

ASSEMBLY - engine, remanufactured, Includes: Ref. 2 & 3

1шт.

JC904363

CRANKSHAFT

RETURN NUMBER - crankshaft assembly (Use this part number to return crankshaft for credit)

1шт.

1

J904363

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 & 3

1шт.

2

J907645

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Order ref. 20)

1шт.

5

J912681

DAMPER

PULLEY - damper, vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

SCREW - hex flange, M14 x 35 MM

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Order ref. 30)

1шт.

9

J907535

COVER ASSY

RETAINER - seal, rear

1шт.

10

J901734

GASKET

- retainer, rear

1шт.

11

J902261

BOLT,Hex Flg

SCREW - hex flange, M6 x 16 MM

6шт.

13

A77569

BEARING SET

BEARING - main, upper and lower, standard

6шт.

13

A77570

BEARING LINER

BEARING KIT - main, upper and lower, 0.25 MM oversize

6шт.

13

A77571

BEARING LINER

BEARING KIT - main, upper and lower, 0.5 MM oversize

6шт.

13

A77572

BEARING LINER

BEARING KIT - main, upper and lower, 0.75 MM oversize

6шт.

13

A77573

BEARING LINER

BEARING KIT - main, upper and lower, 1.0 MM oversize

6шт.

14

A77574

BEARING LINER

BEARING KIT - main thrust, upper and lower, standard

1шт.

14

A77575

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.25 MM oversize

1шт.

14

A77576

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.5 MM oversize

1шт.

14

A77577

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 0.75 MM oversize

1шт.

14

A77578

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 1.0 MM oversize

1шт.

20

J908139

SEAL

KIT - oil front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J908277

SLEEVE

WEAR SLEEVE KIT - crankshaft front, Includes: Ref. 26 & 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909410

GASKET KIT

SEAL KIT - oil, rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36 & 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
