Запчасти Case IH 9130 (04-18) - CYLINDER BLOCK, 6TA-830 ENGINE (04) - Drive Train

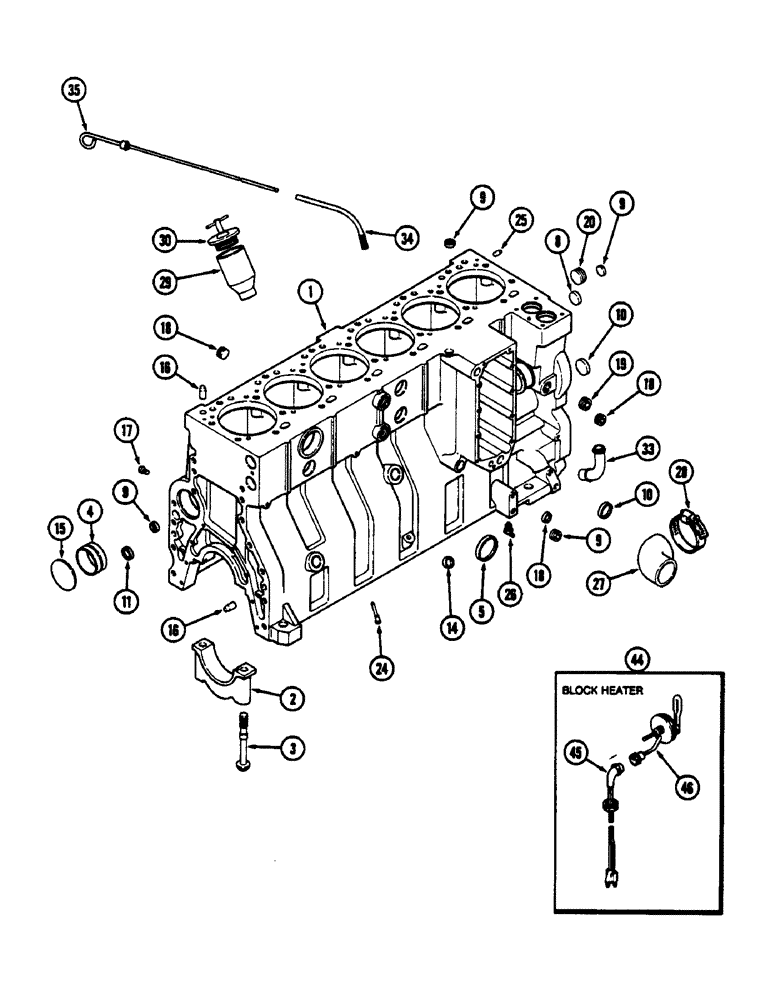

Схема запчастей Case IH 9130 - (04-18) - CYLINDER BLOCK, 6TA-830 ENGINE (04) - Drive Train
1
9
10
5
16
46
4
3
8
17
14
19
28
2
44
10
9
29
18
26
8
16
33
25
35
45
27
24
18
20
30
15
11
34
9
18

Артикул

Название

Примечание

Количество

JR913779

ENGINE, EXCHANGE

BLOCK ASSEMBLY - short, engine, remanufactured (North America only), Includes: Ref. 1 - 11

1шт.

JC913779

SKELETON ENGINE

RETURN NUMBER - engine short block (Use this part number to return block core for credit)

1шт.

J913779

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order J909415), Includes: Ref. 1 - 11

1шт.

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY - cylinder, stripped, remanufactured, Includes: Ref. 1 - 11

1шт.

JC911898

SKELETON ENGINE

RETURN NUMBER - Use this part number to return block core for credit

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, stripped, new (Also order J909415 kit), Includes: Ref. 2 - 11

1шт.

2

J905397

CAP

- bearing main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

- hex flange cap, M14 x 128 MM

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, See Figue 4-24

7шт.

5

J900965

PLUG

- expansion cup, 58 MM OD

1шт.

8

A77586

PLUG

- cup, 28.9mm OD

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 MM OD

3шт.

11

A77530

PLUG

- expansion, 1-3/16 inch OD

2шт.

J909415

KIT

HARDWARE KIT - block, Includes: Ref. 14 - 26

1шт.

14

A77439

PLUG

- expansion, 22 MM OD

1шт.

15

J901969

PLUG

- expansion, 69 MM OD

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex pipe, 1/8 inch PT

6шт.

18

A77429

PLUG

- hex socket head, 1/2 inch PT

4шт.

19

A77505

PLUG

- hex pipe, 3/4 inch PT

2шт.

20

A77533

PLUG

- hex pipe, 1 inch PT

1шт.

24

J905928

NOZZLE INJECTION

NOZZLE - cooling, piston

6шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm

2шт.

26

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

27

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

- Elbow, Water 50.08 mm ID, 60.08 mm ID x 39.70 mm

1шт.

28

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

1шт.

29

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

- filler, oil

1шт.

30

A77424

FILLER CAP

CAP - filler

1шт.

33

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, turbocharger

1шт.

34

J905425

TUBE,9.52 mm OD x 93 mm L

- oil dipstick

1шт.

35

J908772

DIPSTICK

- oil

1шт.

45

J905113

CABLE

- heater

1шт.

46

J911608

HEATER

ELEMENT - heater, 12 volt 1000 watts

1шт.

Выбрано товаров: 34
