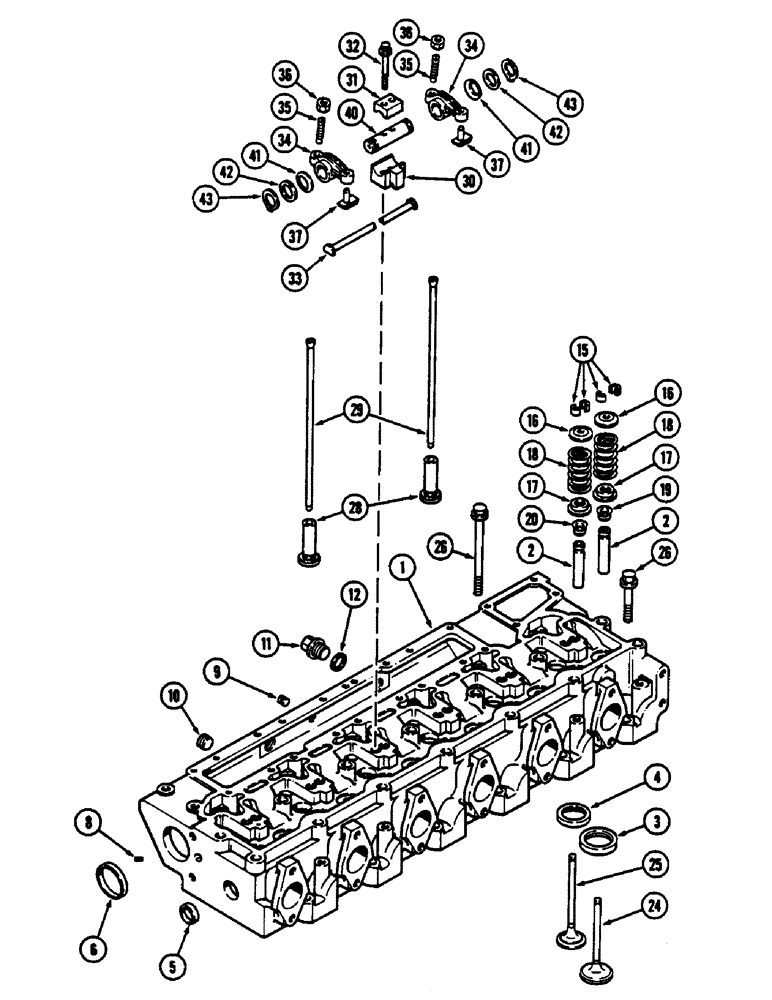

Запчасти Case IH 9130 (04-16) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-830 ENGINE (04) - Drive Train

JR909416

HEAD

ASSEMBLY - cylinder, remanufactured, Includes: Ref. 1 - 26

1шт.

JC909416

HEAD (CYLINDER)

RETURN NUMBER - cylinder head, Use this part number to return head core for credit

1шт.

1

J909416

HEAD ASSY.

HEAD ASSEMBLY - cylinder (New), Includes: Ref. 1 - 26

1шт.

1

J911287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 6

1шт.

2

J901187

GUIDE

- stem, valve

12шт.

3

J905861

INSERT

- seat, intake valve

6шт.

4

J904388

INSERT

- seat, exhaust valve

6шт.

5

A77530

PLUG

- expansion

6шт.

6

J900965

PLUG

- expansion, 58 MM OD

2шт.

8

A77534

PLUG

- hex pipe, 1/16 - 27 inch PT

1шт.

9

A77428

PLUG

- square head pipe, 1/4 inch PT

1шт.

10

A77429

PLUG

- hex socket pipe, 1/2 inch PT

2шт.

11

J904386

PLUG

- hex flange, M22

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing

2шт.

15

J901177

VALVE

KEEPER - valve

24шт.

16

J907990

RETAINER

- spring

12шт.

17

J901178

GUIDE

- spring, valve

12шт.

18

J906412

VALVE SPRING

SPRING, VALVE

12шт.

19

J904579

SEAL

- stem, intake valve

6шт.

20

J904578

SEAL

- stem, exhaust valve

6шт.

24

J902253

VALVE

- intake

6шт.

25

J902254

VALVE

- exhaust

6шт.

26

J907233

BOLT

- hex flange, M14 x 150 MM

14шт.

26

J907234

BOLT

- hex flange, M14 x 70 MM

12шт.

28

J931623

TAPPET

- valve

12шт.

29

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

30

J905870

SUPPORT

- shaft, rocker arm

6шт.

31

J901693

CLAMP

- retaining, shaft

6шт.

32

J901617

12 PT SCREW,M10 x 1.25 x 65mm, Cl 12.9

BOLT - twelve point cap

12шт.

33

J910911

MANIFOLD

- oil, rocker arm

1шт.

34

J901717

ROCKER

ARM ASSEMBLY - rocker, Includes: Ref. 35 - 37

12шт.

35

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, 3/8 inch NF x 40 MM

1шт.

36

A77558

JAM NUT

- hex, 3/8 inch NF

1шт.

37

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

40

J906249

SHAFT

- rocker

6шт.

J907555

PLUG

- expansion, 1/4-18 PT

2шт.

41

J906100

SPRING CUP

WASHER - spring

12шт.

42

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, end

12шт.

43

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
