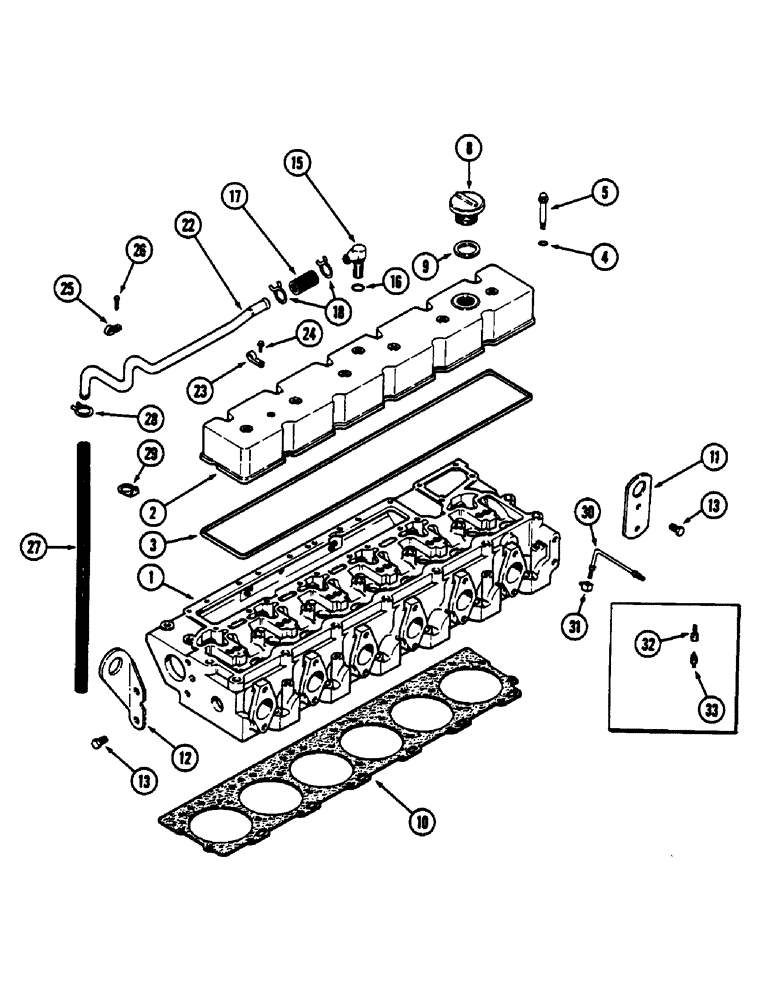

Запчасти Case IH 9130 (04-14) - CYLINDER HEAD COVERS, 6TA-830 ENGINE (04) - Drive Train

1

REF

INSTRUCTION

HEAD - cylinder, See Figure 4-16

1шт.

2

J907734

COVER ASSY

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

4

J901837

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- sealing

6шт.

5

J901838

BOLT

- hex, M8 x 56 MM

6шт.

8

J902468

FILLER CAP,Male

CAP - filler, oil

1шт.

9

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal cap

1шт.

10

J907682

CYLINDER HEAD GASKET

- head, cylinder (Standard, no notches)

1шт.

10

J908119

CYLINDER HEAD GASKET

- head, cylinder (0.13 MM thicker)

1шт.

10

J908120

CYLINDER HEAD GASKET

- head, cylinder (0.50 MM thicker)

1шт.

11

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

12

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

13

813-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, M12 x 25 MM

4шт.

15

J906794

CONNECTION

CONNECTOR - vent

1шт.

16

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

17

J907169

HOSE

Connector

1шт.

18

214-113

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP - spring, hose

2шт.

22

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

23

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Tube M15.88, M9.52 Bolt Hole

1шт.

24

J902735

BOLT,M8 - 1.25 x 21 mm

SCREW - self tapping

1шт.

25

A77538

CLIP

- tube, P style

1шт.

26

J902641

SCREW

BOLT - clip retaining, 22 MM long

1шт.

27

J907739

HOSE ASSY.

HOSE - breather

1шт.

28

214-109

HOSE CLAMP,#14, 7/8", Spring

CLAMP - spring, hose

1шт.

29

J909670

CLIP

- hose, P style

1шт.

30

J908762

VENTILATION PIPE,6.35 mm OD x 240.7 mm L

TUBE ASSEMBLY - vent, air

1шт.

31

A77535

ELBOW UNION

ELBOW - adapter

1шт.

32

J908763

TEE

- hose

1шт.

33

J909394

COCK, DRAIN

VALVE ASSEMBLY - drain

1шт.
