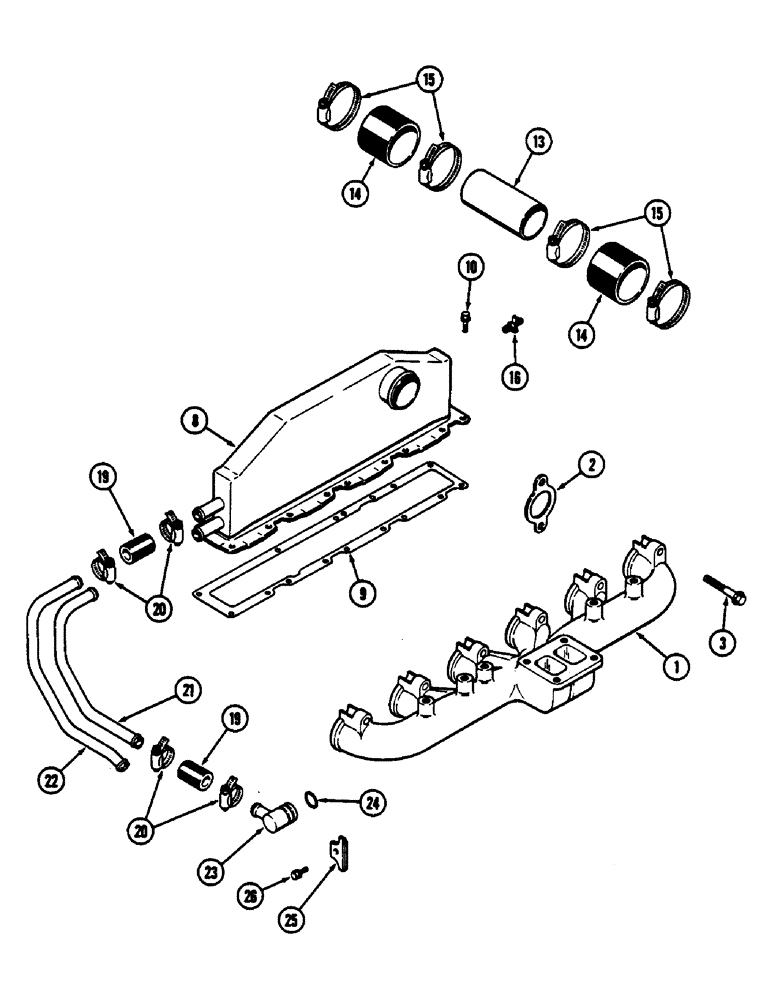

Запчасти Case IH 9130 (04-10) - MANIFOLDS, 6TA-830 ENGINE, EXHAUST (04) - Drive Train

1

J906720

MANIFOLD

- exhaust

1шт.

2

J911942

GASKET

- exhaust manifold

1шт.

3

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, M10 x 70 MM

12шт.

8

J907171

COOLER ASSY.

AFTERCOOLER - intake

1шт.

9

J907171

COOLER ASSY.

GASKET - mounting, intake aftercooler

1шт.

10

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- aftercooler retaining, intake

18шт.

13

J909345

TUBE,63.5 mm OD x 140 mm L

- crossover, intake aftercooler

1шт.

14

J904422

HOSE

- crossover tube, intake aftercooler

2шт.

15

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose retaining, intake aftercooler

4шт.

16

J909394

COCK, DRAIN

VALVE - drain, intake aftercooler

1шт.

19

J907169

HOSE

. Aftercooler, Intake

4шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose retaining, intake aftercooler

8шт.

21

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet, intake aftercooler

8шт.

22

J908402

TUBE,19.05 mm OD

- water outlet, intake aftercooler

1шт.

23

J906438

ELBOW

- hose adapter, intake aftercooler

2шт.

24

A58292

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- elbow, intake aftercooler

2шт.

25

J906439

PLATE

- mounting, intake aftercooler

1шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, , intake aftercooler Hex Flg, M8 x 16, 8.8, Full Thd

1шт.
