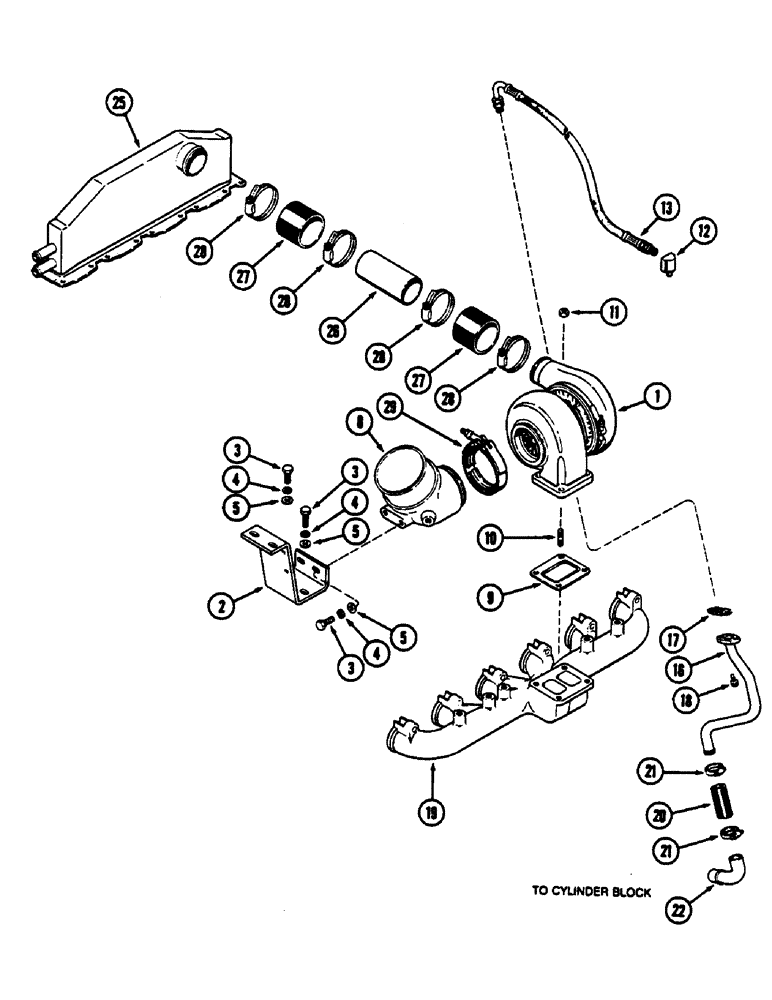

Запчасти Case IH 9130 (04-06) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (04) - Drive Train

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, See Figure 4-08

1шт.

2

1289168C1

BRACKET

- elbow

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

3

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, M10

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

(13/32") M10 x 20 x 2

4шт.

8

A184232

ELBOW UNION

ELBOW - turbocharger

1шт.

9

J907973

GASKET

- mounting, turbocharger

1шт.

10

J905417

STUD

- mounting, turbocharger, M10 x 1.25 and 1.50

4шт.

11

J901961

NUT

- hex, stud, M10 x 1.25

4шт.

12

A77588

ELBOW

- adapter, 90 degree

1шт.

13

J909545

HOSE

Supply, Oil

1шт.

ORDER REDUCE # J916857 WHICH IS 7/16" ORING MALE AND 5/8" female (this number changes to j919687)

1шт.

#13- IF DLR SAYS TUBE HOLE on Turbocharger IS 7/16" (12mm), AND he needs 5/8" NEED TO

1шт.

16

J906739

TUBE

- drain, oil

1шт.

17

J901805

GASKET

- mounting, drain tube

1шт.

18

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

19

REF

INSTRUCTION

MANIFOLD - exhaust, See Figure 4-10

1шт.

20

J903745

LARGE HOSE

HOSE - tube, drain

1шт.

21

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.

22

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain

1шт.

25

REF

INSTRUCTION

AFTERCOOLER - intake, See Figure 4-10

1шт.

26

J909345

TUBE,63.5 mm OD x 140 mm L

- air, crossover

1шт.

27

J904422

HOSE

- tube, air

2шт.

28

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

4шт.

29

A170807

CLAMP,102mm ID

elbow

1шт.
