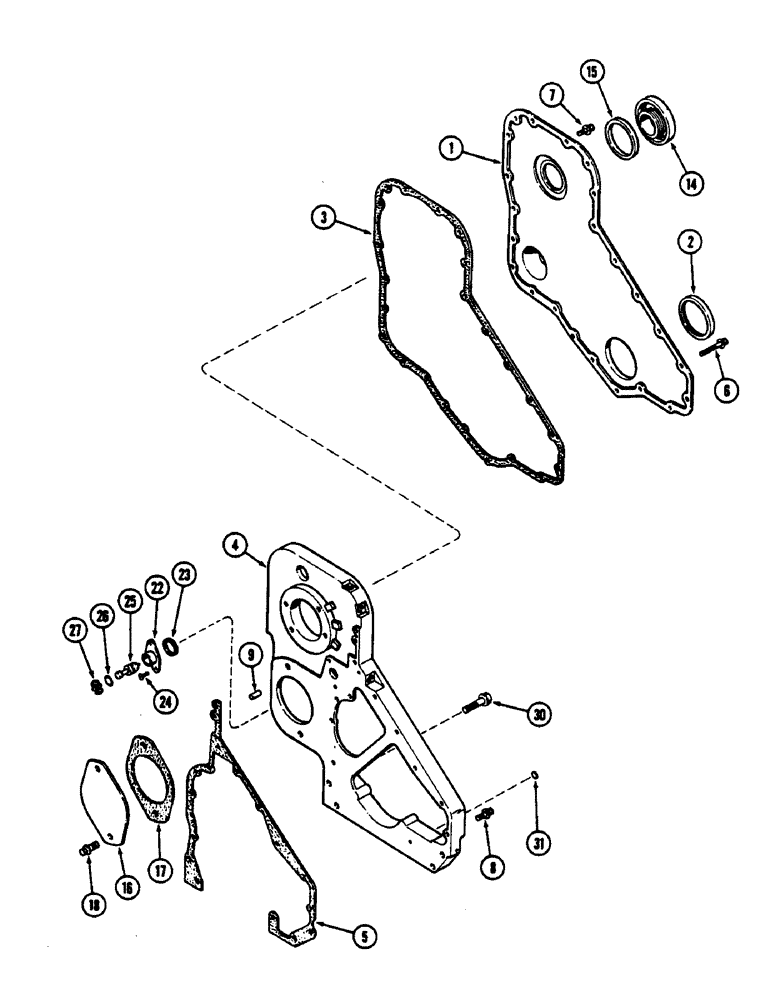

Запчасти Case IH 9130 (04-04) - FRONT GEAR COVER, 6TA-830 ENGINE (04) - Drive Train

1

J906706

COVER ASSY

COVER ASSEMBLY - gear, front, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, See Figure 4-24

1шт.

3

J905471

GASKET

- cover, gear

1шт.

4

J911715

MOTOR HOUSING

HOUSING - gear

1шт.

5

J929253

GASKET

- housing, gear (Replaces J906612)

1шт.

6

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex flange, M8 x 50 MM

6шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

8

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- hex flange, M8 x 20 MM

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

14

J903463

PLUG,M63 x 5

- access

1шт.

15

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

16

J909918

PLATE

- cover, access

1шт.

17

J910055

GASKET

- cover

1шт.

18

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flange, M12 x 25 MM

2шт.

22

J905933

HOUSING

- pin, timing

1шт.

23

J906693

GASKET

- housing

1шт.

24

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

25

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

26

J903927

O-RING,15.6 mm ID

- sealing

1шт.

27

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, 0.875", Int, #87

1шт.

30

J902116

FLANGE BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

BOLT - hex flange, M12 x 1.75 x 50 MM

4шт.

31

A77552

PLUG

- expansion, lower dowel hole, 29/64 inch diameter

1шт.
