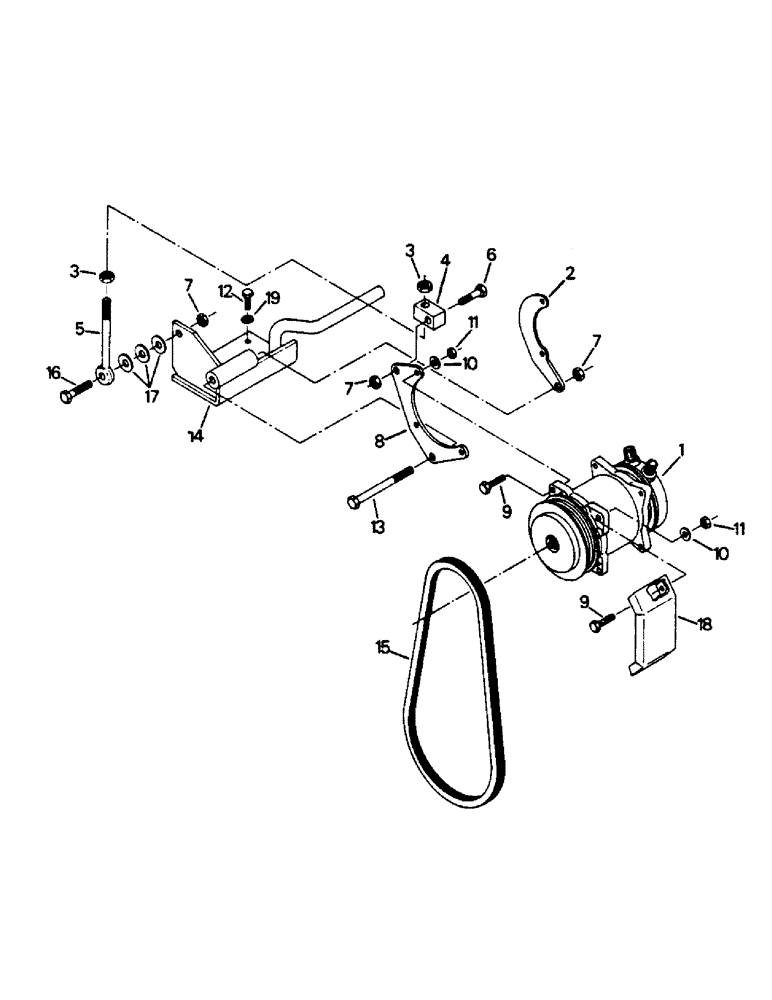

Запчасти Case IH 9130 (03-11) - AIR CONDITIONER COMPRESSOR AND MOUNTING (03) - Climate Control

1

COMPRESSOR ASSEMBLY - A/C, See Figure 3-12

1шт.

2

2-5295T2

BRACKET

- compressor

1шт.

3

19-1060

JAM NUT,1/2" - 20, Gr 8

- jam, 1/2 UNC G-C

2шт.

4

1-6899T1

BLOCK

- compressor adjusting

1шт.

5

22-1086T1

ROD

- tilt adjusting

1шт.

6

19-46

BOLT,1/2" - 13 x 2", Gr 5

CAPSCREW, 1/2 UNC x 2 G-5

1шт.

7

19-82

LOCK NUT

- lock, 1/2 UNC G-B

3шт.

8

90-6110T1

BRACKET

- compressor

1шт.

9

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

CAPSCREW, M10 x 1.5 x 34 MM

6шт.

10

19-107

WASHER

- flat, 3/8

6шт.

11

19-455

NUT

M 10 x 1.5

6шт.

12

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

CAPSCREW, M10 x 1.5 x 20MM

4шт.

13

19-745

BOLT,Hex, 1/2" - 13 x 5", Gr 5

CAPSCREW, 1/2 UNC x 5 G-5

1шт.

14

90-6100T1

MOUNTING PARTS

MOUNT - compressor

1шт.

15

6-1451

V-BELT,0.53" W x 51.75" L

0.53" W x 51.75", A/C compressor

1шт.

16

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

CAPSCREW, 1/2 UNC x 2-1/4 G-5

1шт.

17

19-109

WASHER,1/2"

- flat, 1/2

3шт.

18

1-4027

GUARD

(Early models only)

1шт.

19

19-118

LOCK WASHER,7/16"

7/16"

4шт.
