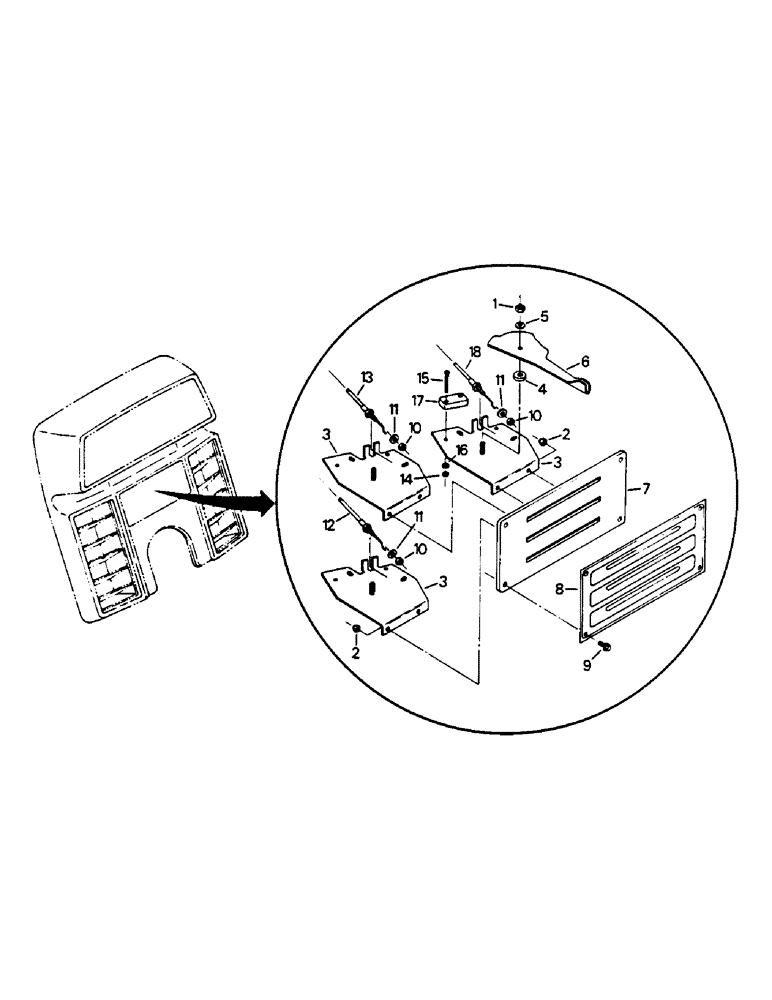

Запчасти Case IH 9130 (03-07) - AIR CONDITIONER AND HEATER CONTROLS (03) - Climate Control

1

280129

NUT,1/4"-20

NUT - lock, 1/4 UNC G-B

3шт.

2

19-481

SERRATED NUT

- lock, no. 10 UNF G-B

6шт.

3

60-4365T2

SUPPORT

BRACKET - lever mounting (60-4365T1)

3шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

4

60-4208T1

SPACER

- lever

3шт.

5

19-5924

SPRING WASHER

- spring lock, 1/4

3шт.

6

60-4529T1

LEVER

- cable actuating

3шт.

7

60-4221T1

PANEL

- climate control

1шт.

8

60-5932T1

DECAL

- control panel (With gray interiors)

1шт.

9

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

TAPPING SCREW, no. 8 UNS x 5/8

4шт.

10

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

3шт.

11

19-105

WASHER,1/4", SAE

- flat, 1/4

3шт.

12

60-4372T1

CABLE

- heater shut off valve

1шт.

13

60-4543T1

CABLE

- heater/defrost

1шт.

14

225-14104

NUT,#4-40

no. 4 UNC G-A

4шт.

15

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

MACHINE SCREW, no. 4 UNC x 1

4шт.

16

19-6100

WASHER

- flat, no. 4

4шт.

17

20-1976T1

IGNITION SWITCH

SWITCH - micro

2шт.

18

60-4781T1

CABLE

- recirculation door

1шт.
