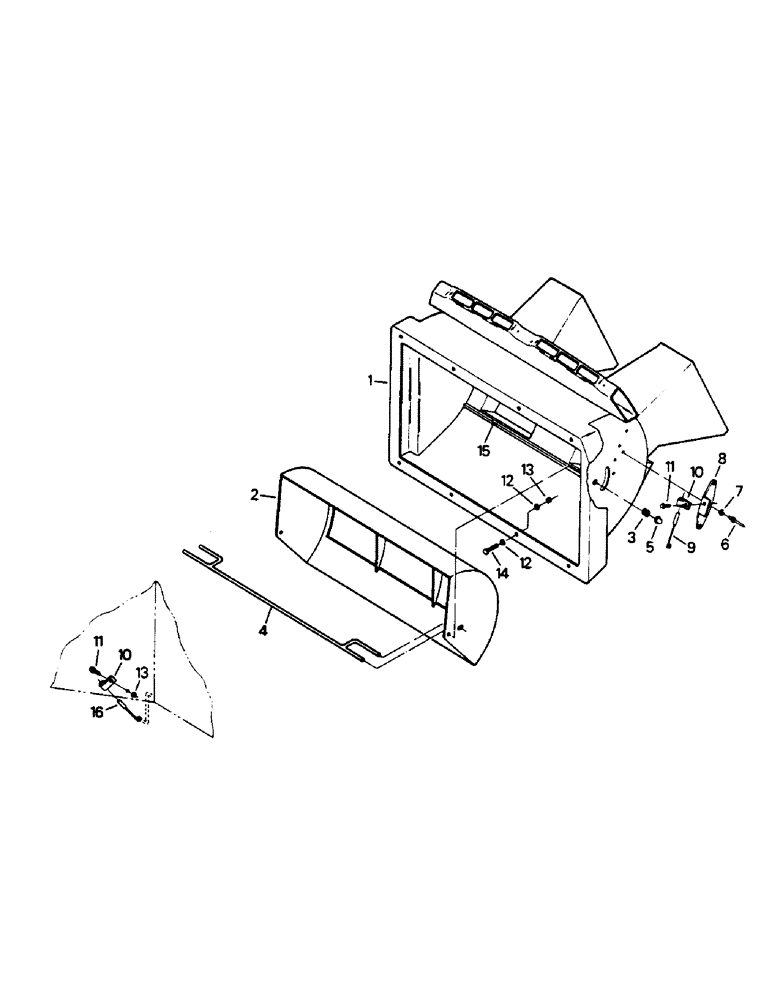

Запчасти Case IH 9130 (03-06) - AIR CONDITIONER AND HEATER PLENUM (03) - Climate Control

1

60-4917T1

DEFLECTOR

PLENUM - A/C and heater

1шт.

2

60-4698T1

FLAP

DOOR - heat/defrost

1шт.

3

19-6129

NYLON BEARING

BEARING - snap in

2шт.

4

60-4680T1

PIVOT

- plenum door

1шт.

5

19-5758

PUSH-ON NUT

- push on

2шт.

6

19-157

RIVET

- pop, 1/8 x 3/8

5шт.

7

19-6100

WASHER

- flat, no. 4

5шт.

8

60-4976T1

FIXING BRACKET

MOUNT - cable

1шт.

9

60-4543T1

CABLE

- door actuating

1шт.

10

31-2511

CLAMP

- cable

2шт.

11

9423772

SCREW,Hex Washer, #10 - 24 x 5/8"

MACHINE SCREW, no. 10 UNC x 5/8

2шт.

12

19-195

WASHER,#10

- flat, no. 10

16шт.

13

19-5563

LOCK NUT

- lock, no. UNC G-A

10шт.

14

163-46

SCREW,Hex, #10 - 24 x 1", Gr 5

MACHINE SCREW, no. 10 UNC x 1

8шт.

15

60-4681T1

SEAL

- door

1шт.

16

60-4781T1

CABLE

- recirculation door

1шт.
