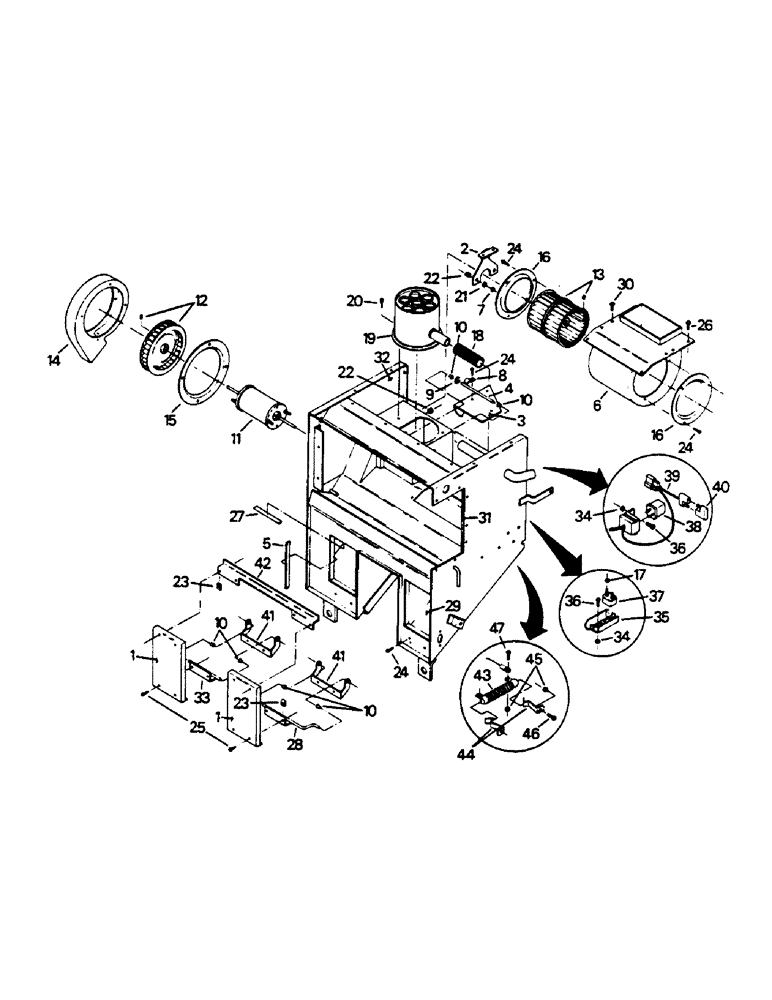

Запчасти Case IH 9130 (03-04) - AIR CONDITIONER AND HEATER MODULE ASSEMBLY, INTERNAL PARTS (03) - Climate Control

1

60-4765T1

FLAP

DOOR - air recirculation

2шт.

2

60-4266T1

BRACKET - motor mount

1шт.

3

60-4626T1

PANEL

DOOR - pressurization valve

1шт.

4

60-4627T1

SHAFT

- door pivot

1шт.

5

60-4773T1

SEAL

- recirculation door

4шт.

6

60-4721T1

HOUSING

- blower wheel, wide

1шт.

7

231-24109

LOCK NUT,#10-32, GB

NUT - lock, no. 10 UNF G-A

4шт.

8

31-1870

CLAMP

CLIP - pivot shaft

2шт.

9

19-6046

WASHER

- nylon, 5/16 x 5/8 x 1/32 thk

2шт.

10

19-6129

NYLON BEARING

BEARING - flanged

6шт.

11

60-5613T1

MOTOR

- blower (60-2564T2)

1шт.

dealer wanted more info on item # 11 - reference f - marcia replied S/N JCB0003600 & After used the 60-5613T2 - the best bet is to have the dealer measure the shaft - if it is 4.69 it is 60-5613T2 if it 3.250 it is 60-2564T2.

1шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

12

60-4117T1

BLOWER,Fan

WHEEL - blower, narrow

1шт.

13

60-4118T1

BLOWER,Fan

WHEEL - blower, wide

1шт.

14

60-3847T1

HOUSING

- blower wheel, narrow (Replaces 60-3487T1)

1шт.

15

60-2640T1

FLANGE ASSY

FLANGE - inlet, narrow wheel

1шт.

16

60-3888T1

FLANGE

- inlet, wide wheel

1шт.

17

19-481

SERRATED NUT

- Keps. no. 10 UNF

2шт.

18

31-1635

HOSE,1.00" ID x 4.00"

Precleaner 1.00" ID x 4.00"

1шт.

19

60-3902T1

PRECLEANER

- fresh air

1шт.

20

9426646

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/4"

TAPPING SCREW, no. 6 UNS x 1/4

3шт.

21

19-195

WASHER,#10

- flat, no. 10

4шт.

22

31-2451

GROMMET

- motor mounting

5шт.

23

19-6157

STEEL SHEET NUT

NUT - clip, U type

8шт.

24

9419320

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

TAPPING SCREW, no. 10 UNS x 3/8

16шт.

25

9419322

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

TAPPING SCREW, no. 10 UNS x 3/4

8шт.

26

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 1/2 G-5

7шт.

27

60-4774T1

SEAL

- recirculation door

2шт.

28

60-4760T1

THREADED ROD

ROD - recirculation door actuating

1шт.

29

60-4726T1

FOAM

- insulating

1шт.

30

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 5/8 G-5

2шт.

31

60-4728T1

FOAM

- insulating

1шт.

32

60-4730T1

FOAM

- insulating

1шт.

33

60-4761T1

THREADED ROD

ROD - recirculation door pivot

1шт.

34

19-5571

SERRATED NUT

- Keps. no. 10 UNC

3шт.

35

20-1171T1

SUPPORT

BRACKET - circuit breaker

1шт.

36

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

3шт.

37

22-673

BREAKER

CIRCUIT BREAKER - 30 amp.

1шт.

38

1-7877

RELAY

- electrical

1шт.

39

20-2376T1

HARNESS

- motor (20-1977T1)

1шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

40

22-738

DIODE

- motor

1шт.

41

60-4762T1

SUPPORT

BRACKET - pivot mount

2шт.

42

60-4769T1

SUPPORT

ANGLE - door mounting

1шт.

20-2387T1

RESISTOR ASSEMBLY - motor, Includes: Ref. 43 & 44

1шт.

43

20-2374T1

RESISTOR

- motor

1шт.

44

20-2375T1

BRACKET

- resistor

2шт.

45

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- Keps. no. 8 UNC

4шт.

46

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

MACHINE SCREW, no. 8 UNC x 3/4

2шт.

47

159585

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW, no. 8 UNC x 3/8

2шт.
