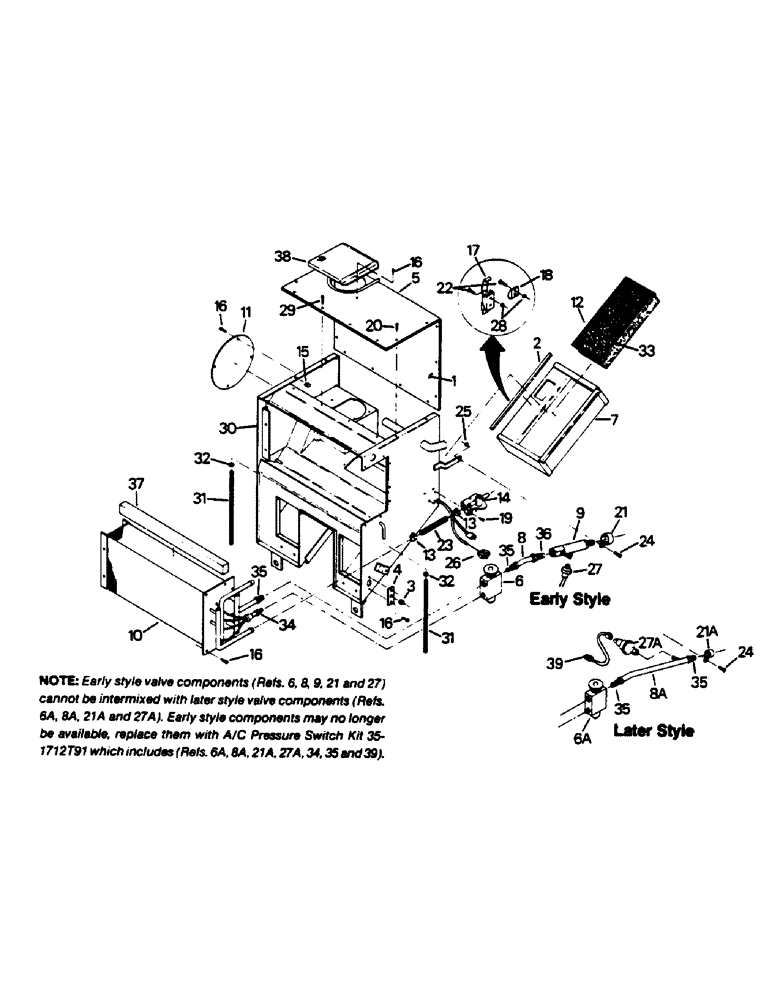

Запчасти Case IH 9130 (03-02) - AIR CONDITIONER AND HEATER MODULE ASSEMBLY, EXTERNAL PARTS (03) - Climate Control

1

60-4499T1

FOAM

- cover insulating

1шт.

2

60-4500T1

FOAM

- filter box sealing

1шт.

3

60-4666T1

GROMMET

- actuator rod

1шт.

4

60-4768T1

LARGE PLATE

PLATE - actuator rod adjustment

1шт.

5

60-5065T1

COVER

- module (60-4634T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

6

60-4087T1

VALVE

- thermal expansion (Early style) (See note)

1шт.

6a

60-5880T1

VALVE

- thermal expansion (Later style) (See note)

1шт.

7

60-4615T1

BOX

- filter housing

1шт.

8

60-4536T1

ADAPTER

- valve (Early style) (See note)

1шт.

8a

60-5879T1

TUBE,0.57" ID, 0.625" OD, 9.4, 1.85" Length

(Later style) (See note)

1шт.

9

60-4088T1

VALVE

- suction throttling (Early style only) (See note)

1шт.

10

60-4042T1

COIL

- heater/ evaporator

1шт.

11

60-3889T1

COVER

- blower motor

1шт.

12

60-4452T1

FILTER

1шт.

13

25-285

SQUARE NUT,Sq, 5/16"-18

CLAMP - hose, 1/2 x 7/8 inch

2шт.

14

60-2392T1

DRAIN VALVE

VALVE - shut off

1шт.

15

19-6157

STEEL SHEET NUT

NUT - clip, U-type

14шт.

16

9419320

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

TAPPING SCREW, no. 10 UNS x 3/8

19шт.

17

60-4640T1

LATCH

- filter box

1шт.

18

60-4641T1

LATCH

KEEPER - latch

1шт.

19

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNC x 1/2

3шт.

20

9419322

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

TAPPING SCREW, no. 10 UNS x 3/4

14шт.

21

31-1348

CLAMP

- STV valve (Early style) (See note)

1шт.

21a

31-2488

CLAMP

- TUBE (Later style) (See note)

1шт.

22

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

MACHINE SCREW, no. 8 UNC x 3/4

3шт.

23

31-2452

HOSE,0.63" ID x 5.00"

Core to Valve 0.63" ID x 5.00"

1шт.

24

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

1шт.

25

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

26

20-2376T1

HARNESS

- motor (20-1977T1)

1шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

27

60-4223T1

SWITCH

- pressure (Early style) (See note)

1шт.

27a

60-5881T1

PRESSURE SWITCH

SWITCH - pressure (Later style) (See note)

1шт.

28

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- Keps. no. 8 UNC

3шт.

29

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, 1/4 UNC x 1/2

4шт.

30

60-4456T3

HOUSING

- module (60-4456T2)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

31

31-208

ELBOW

HOSE - drain, 3/8 x 12 inch

2шт.

32

32-29

HOSE CLAMP

CLAMP - hose, 7/16 x 3/4

2шт.

33

60-4948T1

SUPPORT

- filter

1шт.

34

31-1808

O-RING

O-RING - hose

1шт.

35

31-1809

O-RING

- hose

3шт.

36

31-1810

O-RING,1.78mm Thk x 17mm ID

- hose (Early style only)

1шт.

37

60-4727T1

FOAM

- coil sealing

1шт.

38

60-5796T1

SCREEN

- filter (Later models only)

1шт.

39

20-2493T1

HARNESS

- pressure switch (Later style only) (See note)

1шт.
