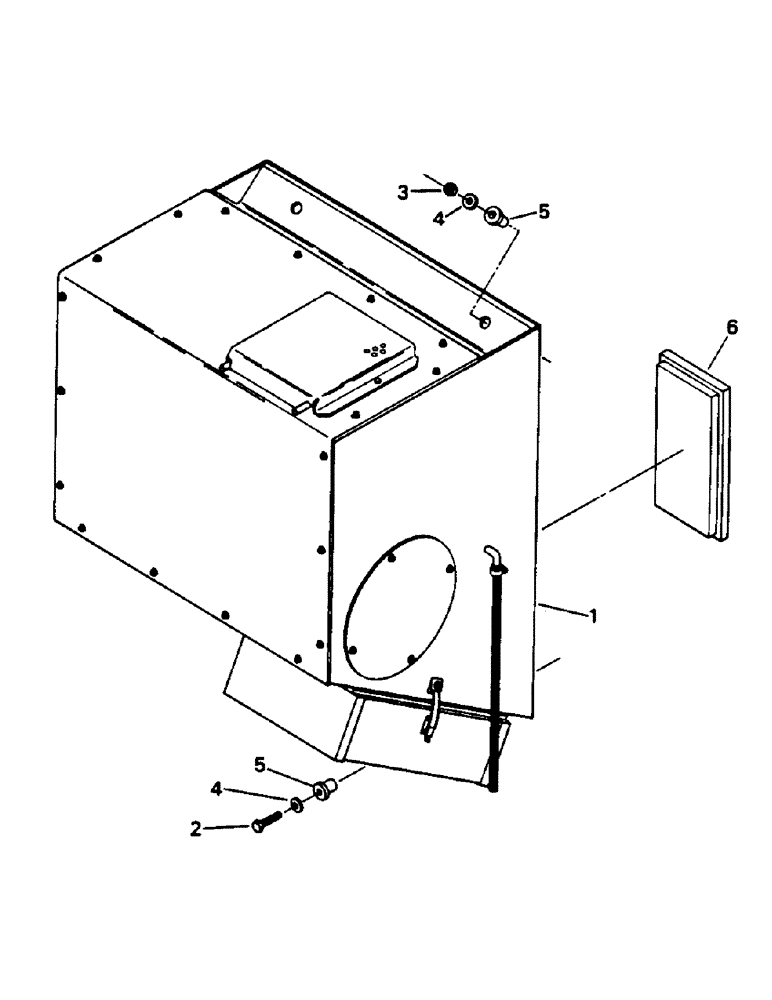

Запчасти Case IH 9130 (03-01) - AIR CONDITIONER AND HEATER MODULE MOUNTING, DELUXE CAB (03) - Climate Control

1

60-4780T93

CONTROL

MODULE ASSEMBLY - A/C and heater (60-4780T91 and 60-4780T92), See Figures 3-02, 3-04, 3-06, and 3-07

1шт.

2

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 UNC x 1-3/4 G-5

2шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

4

19-107

WASHER

- flat, 3/8

4шт.

5

1-3528

MOUNTING PARTS

MOUNT - rubber

4шт.

6

60-3846T2

FILTER

- air recirculation

2шт.
