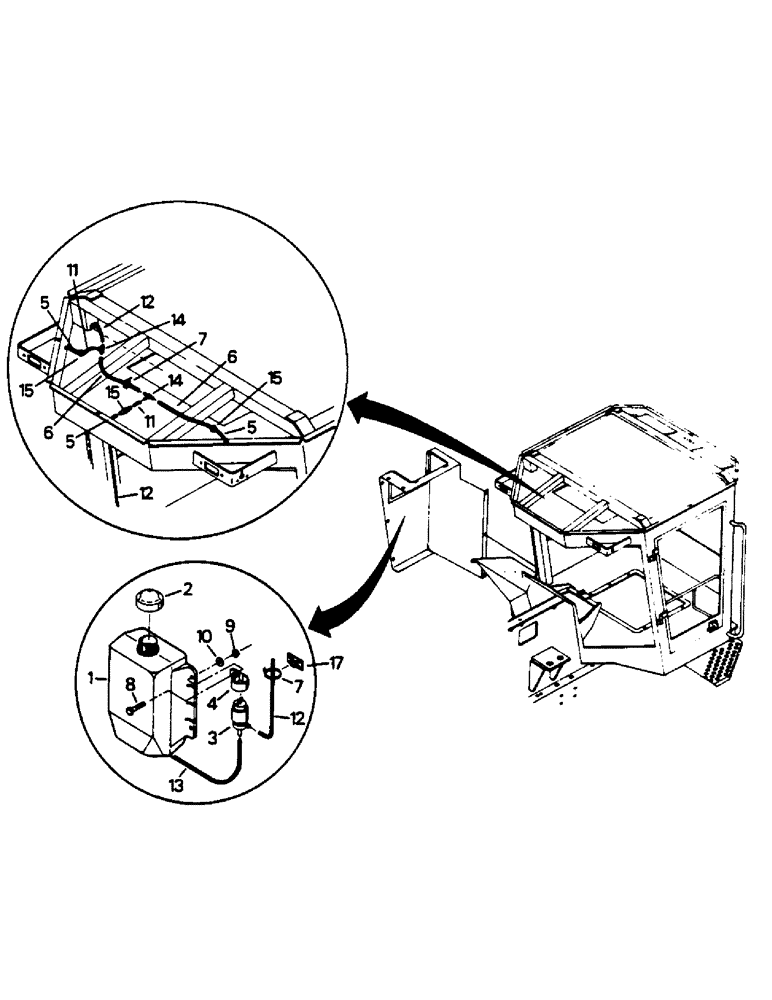

Запчасти Case IH 9130 (10-40) - WINDOW WASHER, PRIOR TO SERIAL NUMBER 17900707 Options & Miscellaneous

35-1608T91

WASHER

KIT - front window washer, Includes Ref. 1 - 10, 12, 13 and 15

1шт.

35-1609T91

KIT

- front and front side window washer and front side wiper, Includes: Ref. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 31-2370, 13, 14 and 15 (See page 10-36) for additional parts and information)

1шт.

1

60-4236T1

WASHER

TANK - washer

1шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

2

60-4241T1

FILLER CAP

CAP - vented, tank

1шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

3

60-3183T1

PUMP, WATER

PUMP - window washer

1шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

4

31-2361

MOUNTING CLIP

CLAMP - pump mounting

1шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

5

31-2608

TUBE,10.00"

HOSE, (Quantity 1 with P/N 35-1608T91) 10.00"

3шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

6

31-2423

HOSE,0.19" ID x 15.00"

2шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

8шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

8

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

5шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

9

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

5шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

10

19-105

WASHER,1/4", SAE

- flat, 1/4

5шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

11

31-2367

HOSE

2шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

12

31-2582

HOSE

1шт.

Part of front window washer kit P/N 35-1608T91

1шт.

31-2370

HOSE,4.7752 mm ID x 3302.00 mm

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

13

31-2422

HOSE,4.77 mm ID x 254.00 mm

1шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

14

31-2363

TEE

3/16

2шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

15

31-2364

FITTING

- barbed (Quantity 1 with P/N 35-1608T91)

3шт.

Part of front window washer kit P/N 35-1608T91

1шт.

Part of front and front side window washer and front side wiper kit P/N 35-1609T91

1шт.

16

1-2172

FLUID

- window washer (1 quart) (Not shown)

1шт.

17

22-823

MOUNT

MOUNT - adhesive backed

1шт.
