(10-35) - FRONT SIDE WIPERS AND MOUNTING, PRIOR TO SERIAL NUMBER 17900707

Запчасти Case IH 9130 (10-35) - FRONT SIDE WIPERS AND MOUNTING, PRIOR TO SERIAL NUMBER 17900707 Options & Miscellaneous

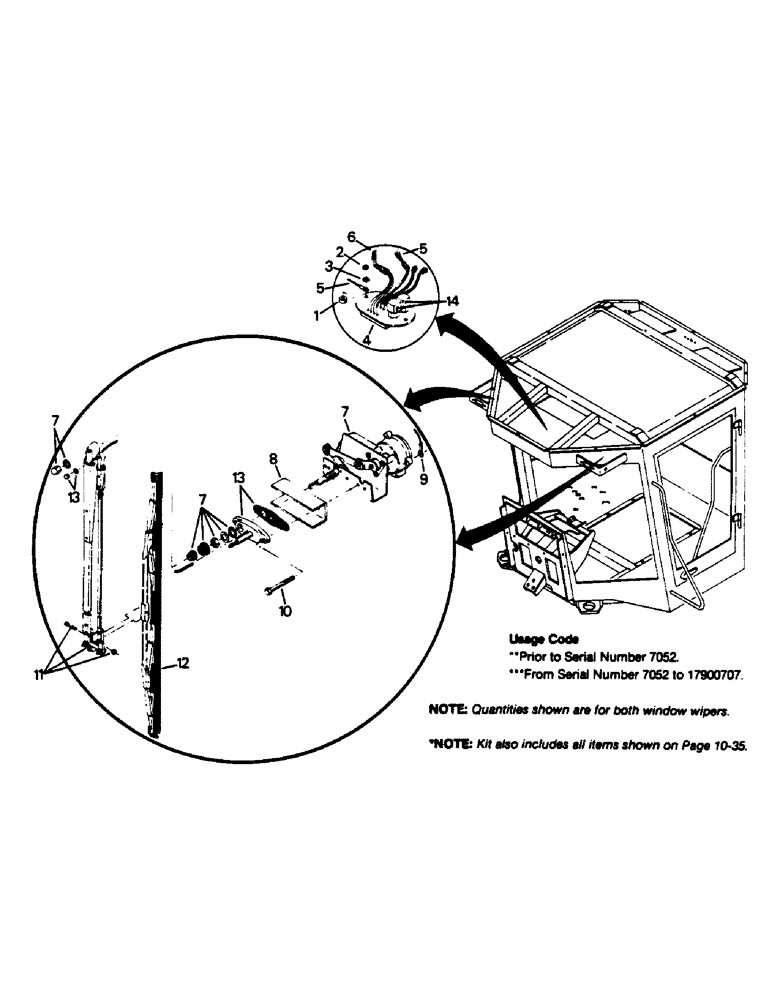

Схема запчастей Case IH 9130 - (10-35) - FRONT SIDE WIPERS AND MOUNTING, PRIOR TO SERIAL NUMBER 17900707 Options & Miscellaneous
13
14
11
7
7
3
13
4
2
5
5
12
6
9
8
7
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

35-1609T91

KIT

- front and front side window washer and front side wiper, Includes: Ref. 1 - 15

1шт.

Kit also includes all items shown on Figure 10-35

1шт.

1

19-6069

SPACER

no. 10 x 1/2 x 9/32 thk

2шт.

2

19-567

NUT,#10-24

no. 10 UNC G-A

2шт.

3

19-195

WASHER,#10

- flat, no. 10

2шт.

4

20-1669T1

CIRCUIT-BREAKER

CIRCUIT BOARD - wiper control, Includes: Ref. 14

1шт.

5

20-2108T1

HARNESS

- side wiper

2шт.

6

20-2107T1

HARNESS

- wiper jumper

1шт.

7

DRIVE ASSEMBLY - wiper, See Figure 1-48

2шт.

8

2-2822T1

SPACER

- wiper mounting

2шт.

9

20-1452T1

ELECTRICAL WIRE

WIRE - motor ground

2шт.

10

185080

CLAMP,Hex, 1/4" - 28 x 2.27", Gr 5

CAPSCREW, 1/4 UNF x 2-1/4 G-5

4шт.

11

60-1440T1

WIPER ARM

ARM - wiper, 22 inch

2шт.

Prior to serial number 7052

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

1шт.

From serial number 7052 to 17900707

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

12

60-1439T91

HALF BLADE

BLADE - wiper, 26 inch

2шт.

Prior to serial number 7052

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

2-4193T1

HALF BLADE

BLADE - wiper refill

1шт.

Prior to serial number 7052

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

60-1145T91

WIPER BLADE

BLADE - wiper, 18 inch

1шт.

From serial number 7052 to 17900707

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

2-4194T1

WIPER BLADE

BLADE - wiper refill

1шт.

From serial number 7052 to 17900707

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

13

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade (See Figure 1-47 for component parts)

2шт.

14

1-7877

RELAY

- electrical

2шт.
