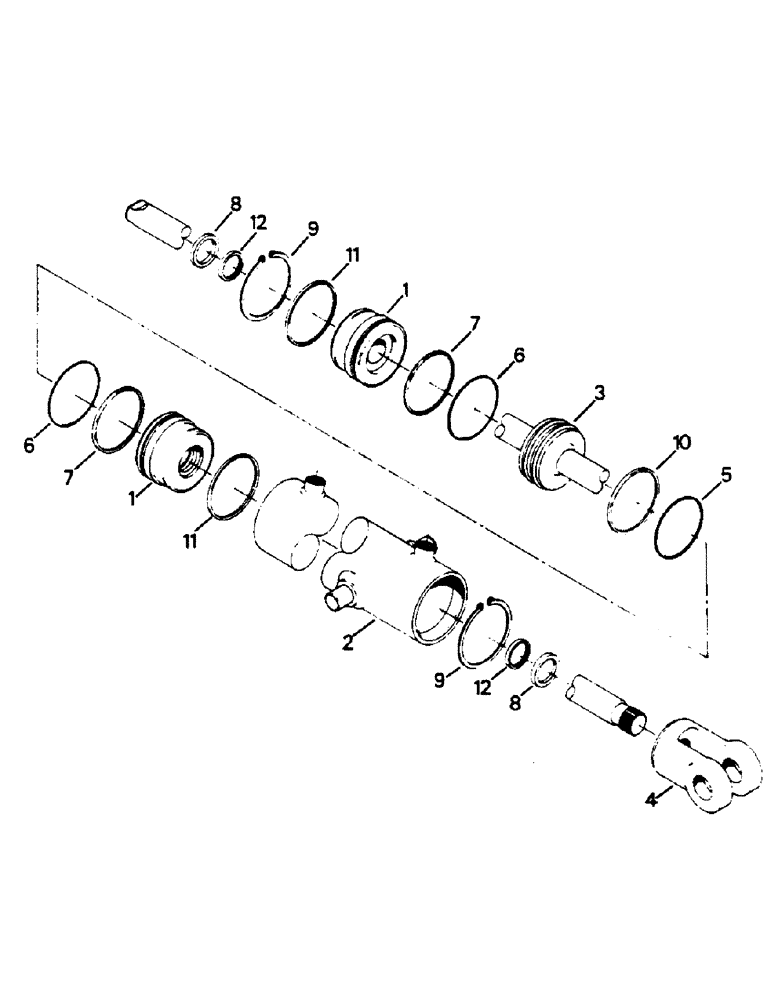

Запчасти Case IH 9130 (10-33) - STEERING CYLINDER ASSEMBLY, STEERABLE FRONT AXLE Options & Miscellaneous

50-3046T91

CYLINDER

(1-12) CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 12

1шт.

33-1037T1

SEAL

KIT - seal, Includes: Ref. 5 - 8, 10 - 12

1шт.

1

33-1032T1

GUIDE

- rod

2шт.

2

33-1382T1

SLEEVE CYLINDER

BARREL - cylinder

1шт.

3

33-1034T1

ROD

1шт.

4

33-1035T1

END

- rod

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of seal kit P/N 33-1037T1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

Part of seal kit P/N 33-1037T1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of seal kit P/N 33-1037T1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - wiper

2шт.

Part of seal kit P/N 33-1037T1

1шт.

9

33-1036T1

RING, SNAP

RING - snap

2шт.

10

NSS

NOT SOLD SEPARAT

SLIPPER - piston

1шт.

Part of seal kit P/N 33-1037T1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - lock

2шт.

Part of seal kit P/N 33-1037T1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

Part of seal kit P/N 33-1037T1

1шт.
