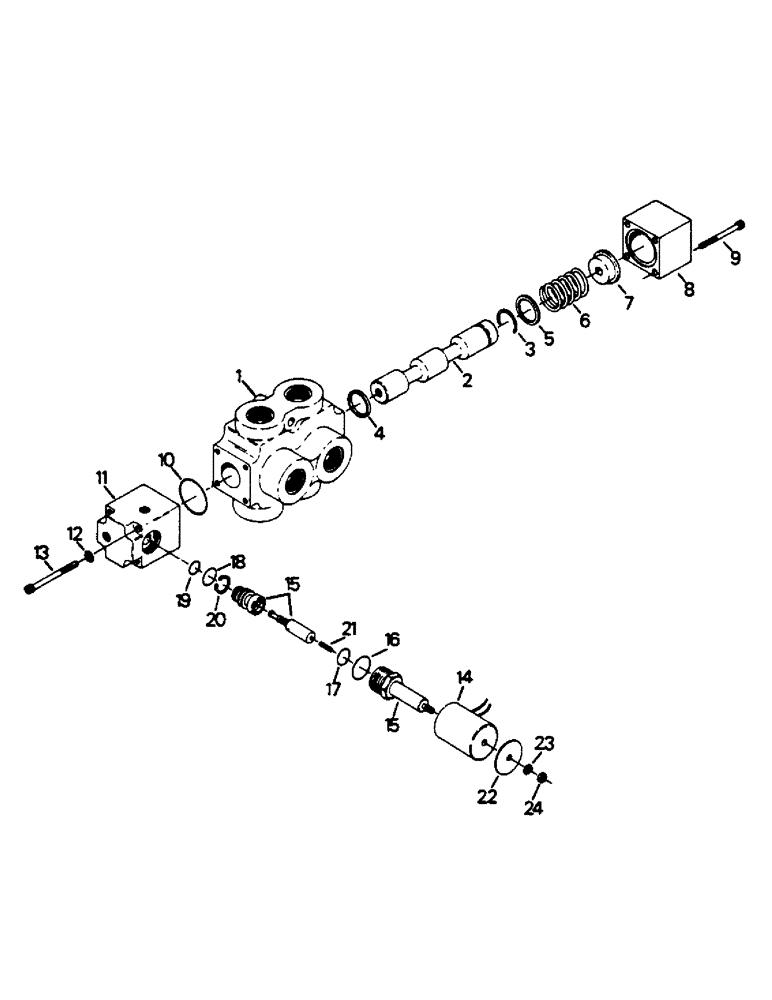

Запчасти Case IH 9130 (10-32) - DOUBLE SELECTOR VALVE ASSEMBLY, STEERABLE FRONT AXLE Options & Miscellaneous

50-2947T91

VALVE, CHECK

VALVE ASSEMBLY - double selector, Includes: Ref. 1 - 24

1шт.

33-1172T1

SEAL KIT

KIT - seal, Includes: Ref. 3, 4 and 10

1шт.

33-1317T1

KIT

- seal, Includes: Ref. 16 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

Part of seal kit P/N 33-1172T1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - spool

1шт.

Part of seal kit P/N 33-1172T1

1шт.

5

33-1164T1

WASHER

- spool

1шт.

6

33-1165T1

COMPRESSION SPRING

SPRING - compression

1шт.

7

33-1171T1

SPACER

- spring

1шт.

8

33-1170T1

CAP

End

1шт.

9

33-1168T1

HEX SOC SCREW

CAPSCREW - socket head, 1/4 UNC x 2 G-8

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of seal kit P/N 33-1172T1

1шт.

11

33-1169T1

BLOCK

- solenoid

1шт.

12

19-467

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4

4шт.

13

33-1167T1

HEX SOC SCREW

CAPSCREW - socket head, 1/4 UNC x 2-1/2 G-8

4шт.

33-1166T1

SOLENOID

ASSEMBLY, Includes: Ref. 14 - 24

1шт.

14

NSS

NOT SOLD SEPARAT

SOLENOID - electrical

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of seal kit P/N 33-1317T1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of seal kit P/N 33-1317T1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of seal kit P/N 33-1317T1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of seal kit P/N 33-1317T1

1шт.

20

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

Part of seal kit P/N 33-1317T1

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - nameplate

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

24

NSS

NOT SOLD SEPARAT

NUT - solenoid

1шт.
