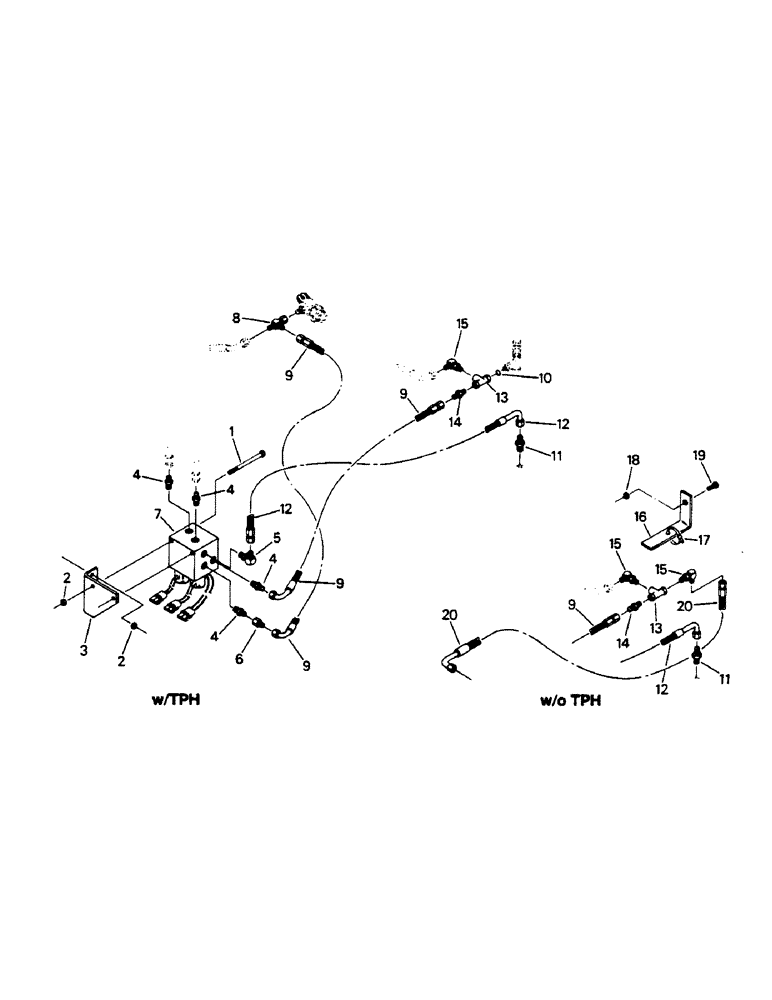

Запчасти Case IH 9130 (10-31) - STEERABLE AXLE HYDRAULIC SYSTEM, OUTSIDE FRAME Options & Miscellaneous

1

19-726

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3-3/4 G-5

2шт.

2

19-508

LOCK NUT

- lock, 5/16 UNC G-B

2шт.

3

50-3082T1

WASHER

BRACKET - valve mounting

1шт.

4

31-2411

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

ADAPTER (6), 9/16 -18 o-ring boss x 7/16 -20 JIC 37 degree male

4шт.

5

31-1344

ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring

(6), 9/16 -18 o-ring boss x 7/16 -20 JIC 37 degree male

1шт.

6

31-2543

ADAPTER

- (Special)

1шт.

7

VALVE ASSEMBLY - solenoid, See Figure 10-34

1шт.

8

31-2158

TEE,37 Degree, 7/16"-20, x 7/16"-20, Fem Sw Run

7/16 -20 JIC 37 degree female x 7/16 -20 JIC 37 degree male x 7/16 -20 JIC 37 degree male

1шт.

9

31-2332

HOSE ASSY.

HOSE - valve to shuttle valve and to control valve

2шт.

10

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

(4) 4-1, 90 Duro, .351" ID x .072" Thk

1шт.

11

31-1556

HYD CONNECTOR,7/16"-20, 37 Degree x 1/2"-14, NPTF

ADAPTER, 1/2 NPT male x 7/16 -20 JIC 37 degree male

1шт.

12

18-1576

HOSE

-, Serial Range: valve-tank

1шт.

13

31-1778

VALVE

- shuttle

1шт.

14

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

ADAPTER (4), 7/16 -20 o-ring boss x 7/16 -20 JIC 37 degree male

1шт.

15

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

(4), 7/16 -20 o-ring boss x 7/16 -20 JIC 37 degree male (Quantity 2 with 3 point hitch)

1шт.

16

60-4775T1

SUPPORT

BRACKET - fitting (Without 3 point hitch only)

1шт.

17

50-2037T1

STRAP

- nylon (Without 3 point hitch only)

1шт.

18

19-341

LOCK NUT,3/8" - 16, GB

NUT - lock, 3/8 UNC G-A (Without 3 point hitch only)

1шт.

19

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5 (Without 3 point hitch only)

1шт.

20

31-2332

HOSE ASSY.

HOSE - elbow to control valve (Without 3 point hitch only)

1шт.
