(10-28) - STEERABLE AXLE MOUNTING GREASE LINES

Запчасти Case IH 9130 (10-28) - STEERABLE AXLE MOUNTING GREASE LINES Options & Miscellaneous

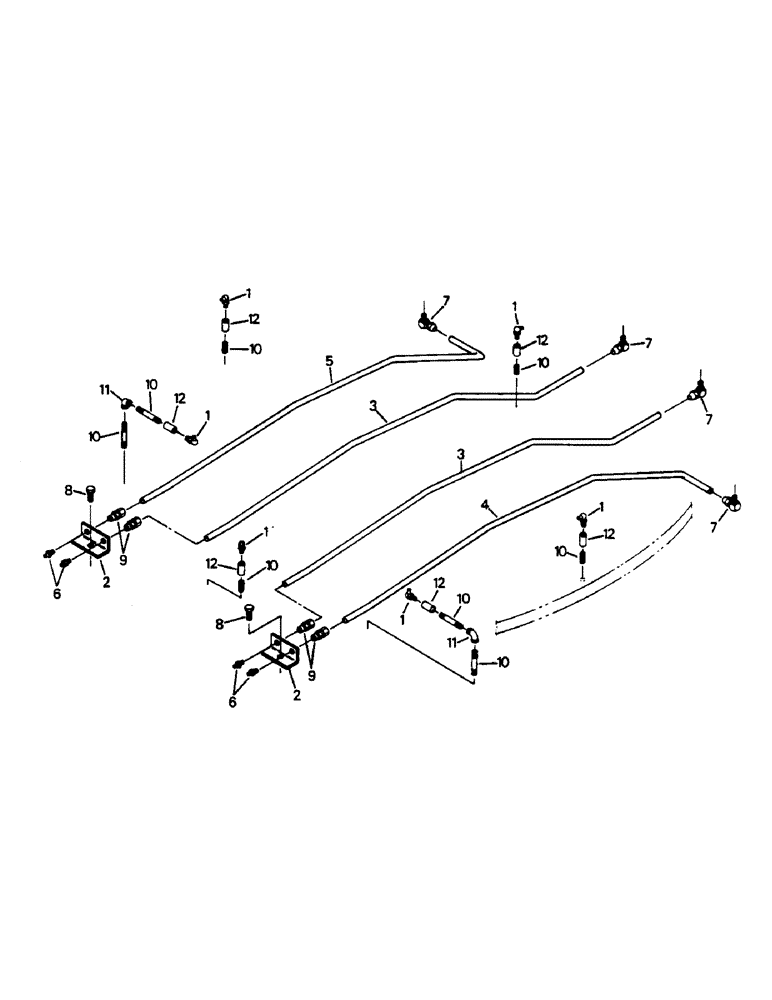

Схема запчастей Case IH 9130 - (10-28) - STEERABLE AXLE MOUNTING GREASE LINES Options & Miscellaneous
1
8
12
3
9
10
10
10
10
7
7
12
4
9
10
6
7
10
5
1
6
7
2
11
10
12
12
1
1
12
12
8
3
1
1
10
11
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31-93

FITTING

- grease, 1/8 NPT

6шт.

2

70-5171T1

BRACKET

- line mount

2шт.

3

70-5169T1

TUBE,0.25" OD, 31.5, 3.88" Length

- grease line

2шт.

4

70-5170T1

TUBE

- grease line

1шт.

5

70-5199T1

TUBE

- grease line

1шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

7

31-599

ELBOW

- compression, 1/8 NPT male x 1/4 tube

4шт.

8

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

2шт.

9

31-2785

FITTING

- compression, 1/8 NPT female x 1/4 tube

4шт.

10

114794

NIPPLE,Nipple, 1/8" NPT x 2"

1/8 NPT male x 2 inch

8шт.

11

31-77

ELBOW

1/8 NPT female x 1/8 NPT female

2шт.

12

31-57

COUPLING

1/8 NPT female x 1/8 NPT female

6шт.
