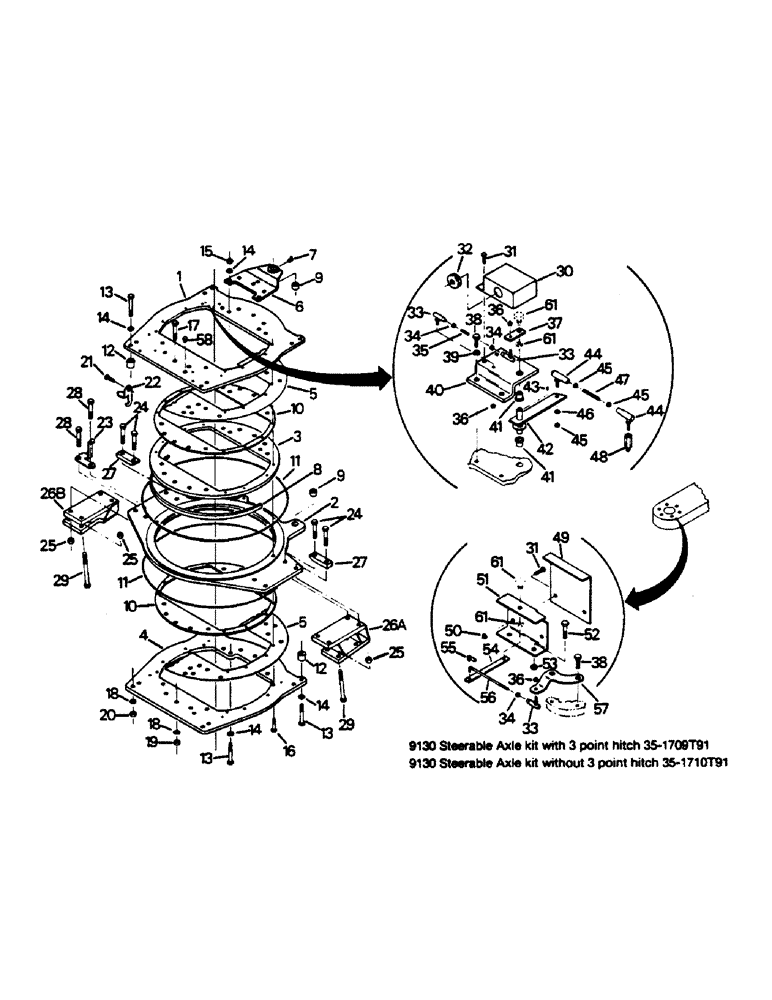

Запчасти Case IH 9130 (10-26) - STEERABLE AXLE MOUNTING, SERIAL NUMBER 17901057 AND AFTER Options & Miscellaneous

1

70-5297T1

PLATE

- frame base

1шт.

70-5323T1

KIT

PLATE - axle and bearing, set, Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - axle

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

4

70-5293T1

PLATE

- clamp

1шт.

5

70-5298T1

PLATE

BEARING - nylatron

4шт.

6

70-5296T1

BRACKET

- cylinder mounting

2шт.

7

31-93

FITTING

- grease, 90 degrees, 1/8 NPT

2шт.

8

70-4541T2

BUSHING,48 mm OD x 0.98"

- nylatron

2шт.

9

70-4557T1

BALL JOINT

BUSHING - self aligning, 1-1/4 inch (Replaces 70-4541T2)

3шт.

10

70-5287T1

PLATE

- bearing

2шт.

11

70-5299T1

SEAL

- dust

2шт.

12

70-5301T1

SPACER

13/16 x 1-3/4 x 1-41/64 thk

8шт.

13

9430296

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

CAPSCREW, 3/4 UNC x 5-1/2 G-8

13шт.

14

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32

14шт.

15

19-651

LOCK NUT

- lock, 3/4 UNC G-C

5шт.

16

19-827

BOLT,Hex, 1/2" - 13 x 3", Gr 8

CAPSCREW, 1/2 UNC x 3 G-8

8шт.

17

19-614

BOLT,3/4" - 10 x 4 1/2", Gr 5

CAPSCREW, 3/4 UNC x 4-1/2 G-5

7шт.

18

19-712

WASHER,3/4", SAE

- flat, 3/4 x 1-1/2 x 1/8 thk

15шт.

19

19-84

NUT,3/4"-10, G5

3/4 UNC G-B

7шт.

20

19-85

LOCK NUT

- lock, 3/4 UNC G-B

4шт.

21

19-476

BOLT,Hex, 3/4" - 10 x 2", Gr 8

CAPSCREW, 3/4 UNC x 2 G-8

2шт.

22

90-6949T1

FORK

INDICATOR - frame

1шт.

23

90-6950T1

DIPSTICK

INDICATOR - axle

1шт.

24

223493

SCREW

CAPSCREW, 1 UNC x 4-1/2 G-8

4шт.

25

19-859

LOCK NUT

- lock, 1 UNC G-B

12шт.

26a

70-5125T2

ADAPTER

MOUNT - axle, left

1шт.

26b

70-5126T2

SHOCK ABSORBER

MOUNT - axle, right

1шт.

27

90-6942T2

BAR

- axle (90-6942T1)

2шт.

Old part must not be used. Part is defective or inadequate. Scrap or return old part.

1шт.

28

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

CAPSCREW, 1 UNC x 3-1/2 G-8

4шт.

29

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

CAPSCREW, 1 UNC x 9-1/4 G-8

8шт.

30

70-4653T1

COVER

- potentiometer

1шт.

31

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

4шт.

32

22-765

GROMMET

- hole

1шт.

33

6-1431

BALL JOINT

JOINT - ball, no. 10 UNF

3шт.

34

19-308

NUT,#10 - 32

no. 10 UNF G-A

3шт.

35

19-6228

ROD

- threaded, no. 10 UNF x 1-1/4

1шт.

36

9411893

LOCK NUT,#10-32, GB

NUT - lock, no. 10 UNF G-A

3шт.

37

70-4658T1

LEVER

Potentiometer Actuating

1шт.

38

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

4шт.

39

19-117

LOCK WASHER,3/8"

3/8"

2шт.

40

70-4912T1

BRACKET

- lever pivot

1шт.

41

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flange, lever pivot

2шт.

42

70-4654T1

LEVER

Potentiometer Mounting

1шт.

43

140880

SCREW - set, no. 10 UNF x 1/4

1шт.

44

19-173

GASKET

JOINT - ball, 5/16 UNF

2шт.

45

19-88

NUT,5/16"-24, G5

5/16 UNF G-B

3шт.

46

19-116

LOCK WASHER,5/16"

5/16"

1шт.

47

19-6229

ROD,THREADED

ROD - threaded, 5/16 UNF x 2-5/16

1шт.

48

70-4661T1

SPACER

- ball joint

1шт.

49

70-4997T1

LARGE PLATE

PLATE, Cover, Potentiometer

1шт.

50

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

51

70-4675T2

BRACKET

Potentiometer Mounting

1шт.

52

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 UNC x 1-1/4 G-5

2шт.

53

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

2шт.

54

70-4678T1

LEVER

Potentiometer, Actuating

1шт.

55

60-2404T1

RETAINER

- actuating rod

1шт.

56

70-4642T1

ROD

Actuating

1шт.

57

70-4680T1

BRACKET

- actuator mounting

1шт.

58

70-5302T1

CAP

- hole plug

2шт.

59

60-1928T3

ADHESIVE

(Not shown) (For attaching seals ref. 11)

1шт.

60

1-1055

SEALANT

ANT - RTV (Not shown) (For attaching bearings ref. 5)

1шт.

61

POTENTIOMETER, electrical (See page 10-29)

2шт.
