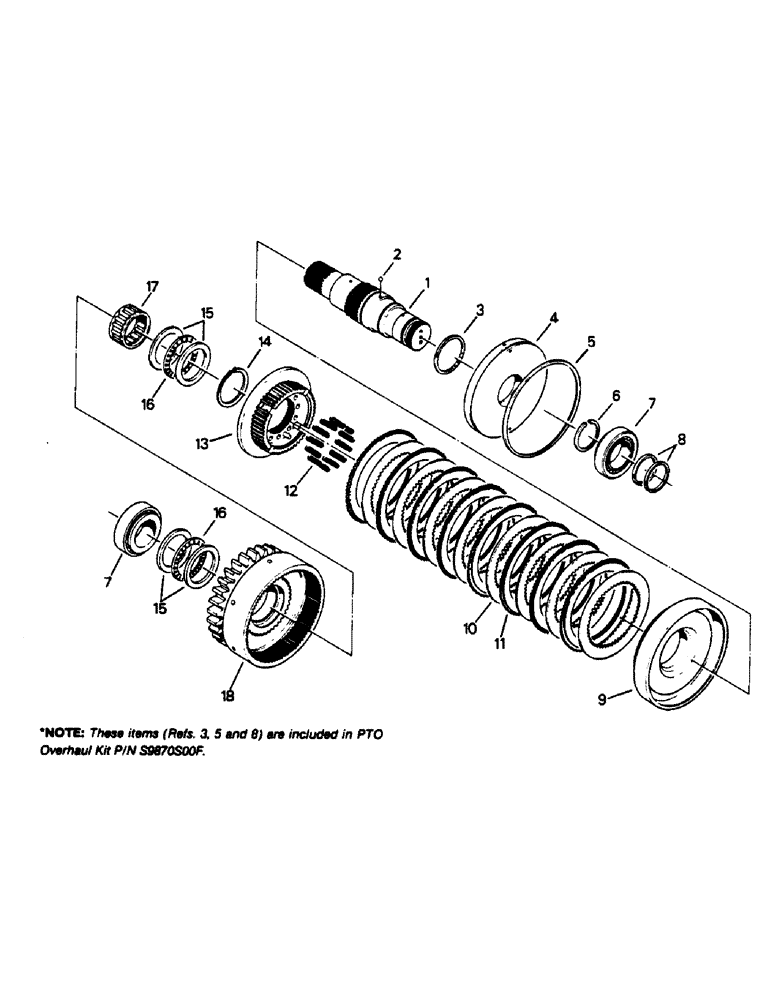

Запчасти Case IH 9130 (10-19) - PTO CLUTCH PACK ASSEMBLY Options & Miscellaneous

S8590S00F

CLUTCH PLATE

CLUTCH ASSEMBLY - PTO, Includes: Ref. 1 - 18

1шт.

1

S8610S00F

SHAFT

- PTO input

1шт.

2

SM3272036

BALL

- steel

1шт.

3

S2610S00F

RING

- sealing

1шт.

4

S9190S00F

LARGE PLATE

PLATE - reaction

1шт.

5

S2630S00F

RING

- sealing

1шт.

6

S2240S00F

RING, SNAP

RING - retaining

1шт.

7

S8730S00F

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

BEARING - roller

2шт.

8

S3070S00F

RING

- sealing

2шт.

9

S8660S00F

PISTON

- clutch

1шт.

10

S2080S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel (Flat)

5шт.

11

S2050S00F

LARGE PLATE

PLATE - faced

5шт.

12

S8690S00F

SPRING

- compression

12шт.

13

S2850S00F

HUB

- clutch

1шт.

14

S2100S00F

RING, SNAP

RING - snap

1шт.

15

S2200S00F

BEARING WASHER

WASHER - thrust

4шт.

16

S2230S00F

BEARING

- thrust

2шт.

17

S2030S00F

BEARING, ROLLER

BEARING - needle

1шт.

18

S8700S00F

GEAR

- drive

1шт.
