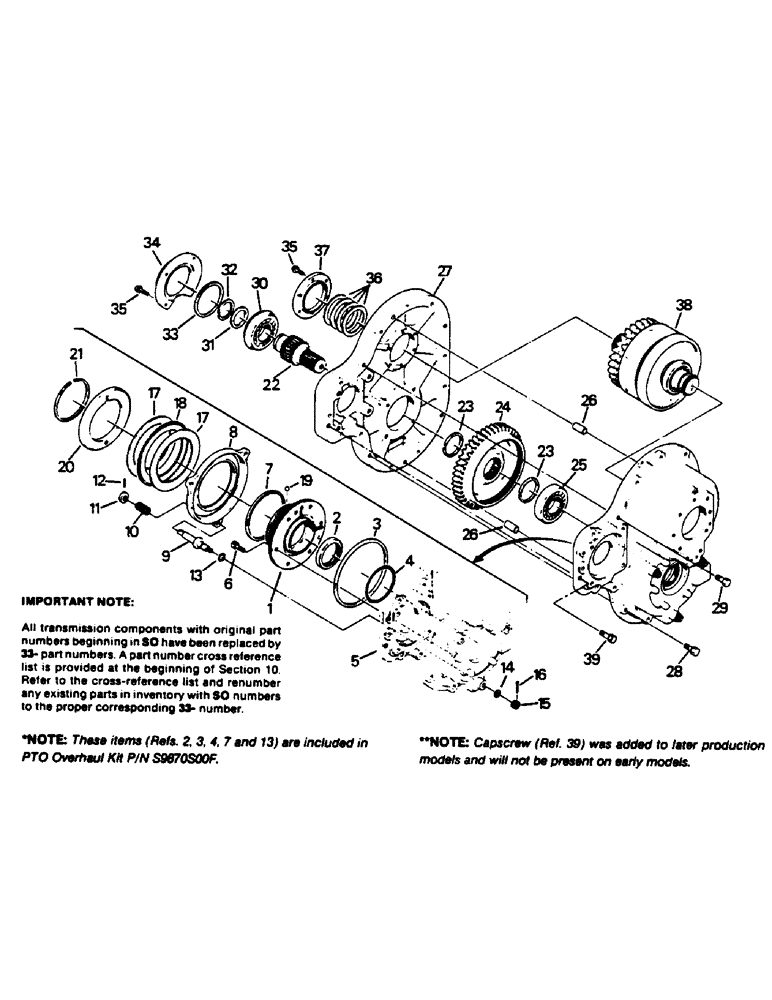

Запчасти Case IH 9130 (10-18) - PTO CLUTCH ASSEMBLY Options & Miscellaneous
№
Артикул
Название
Примечание
Количество
1
S8740S00F
HUB
- clutch brake
1шт.
2
S8820S00F
OIL SEAL
SEAL - oil
1шт.
3
S2630S00F
RING
- sealing
1шт.
4
S8850S00F
GASKET
O-RING - seal
1шт.
5
S8520S00F
HOUSING
- PTO
1шт.
6
S8840S00F
SCREW
CAPSCREW - socket head
6шт.
7
S8960S00F
RING
- sealing
1шт.
8
S8750S00F
PISTON
- brake
1шт.
9
S8890S00F
LARGE PIN
PIN - guide
3шт.
10
S8910S00F
SPRING
- compression
3шт.
11
S9900S00F
WASHER
- spring retaining
3шт.
12
S9890S00F
PIN, ROLL
PIN - roll
3шт.
13
S89800S00F
O-RING - seal
3шт.
14
SM8915440
WASHER
- flat, M10
3шт.
15
SM8911040
NUT
- slotted, M10 x 1.25
3шт.
16
SM9212221
PIN, SPLIT (COTTER)
PIN - cotter
3шт.
17
S2080S00F
CLUTCH DISC,2.4mm Thk
PLATE - steel (Flat)
2шт.
18
S2050S00F
LARGE PLATE
PLATE - steel (Paper)
1шт.
19
SM3272036
BALL
- steel
1шт.
20
S8760S00F
LEDGER PLATE
PLATE - reaction
1шт.
21
S8770S00F
RING, SNAP
RING - retaining
1шт.
22
S8790S00F
SHAFT
- output
1шт.
23
S2240S00F
RING, SNAP
RING - retaining
2шт.
24
S8780S00F
PINION
GEAR - driven
1шт.
25
S8800S00F
BEARING, BALL
BEARING - ball
1шт.
26
33-1467T1
DOWEL
PIN - dowel (See note)
1шт.
27
S8510S00F
HOUSING
- PTO
1шт.
28
SM8124250
BOLT
CAPSCREW, M12 x 1.25 x 50 MM G8.8
3шт.
29
SM8124240
BOLT
CAPSCREW, M12 x 1.25 x 40 MM G8.8
1шт.
30
S8810S00F
BEARING, BALL
BEARING - ball
1шт.
31
S8970S00F
WASHER
- bearing spacer
1шт.
32
S8980S00F
RING
- retaining
1шт.
33
S9990S00F
SHIM
1шт.
34
S8990S00F
SHIN
RETAINER - bearing
1шт.
35
SM8120830
BOLT
CAPSCREW, M8 x 1.25 x 30 MM G8.8
10шт.
36
S9910S00F
SHIM,0.1mm Thk
Clutch pack 0.1mm Thk
1шт.
S9920S00F
SHIM,0.3mm Thk
Clutch pack 0.3mm Thk
1шт.
S9930S00F
SHIM,0.5mm Thk
Clutch pack 0.5mm Thk
1шт.
S9940S00F
SHIM,0.7mm Thk
Clutch pack 0.7mm Thk
1шт.
37
S8570S00F
SHIN
RETAINER - bearing
1шт.
38
CLUTCH ASSEMBLY - PTO, See Figure 10-19
1шт.
39
SM8124230
BOLT
CAPSCREW, M12 x 1.25 x 30 MM G8.8
1шт.
Выбрано товаров: 42
