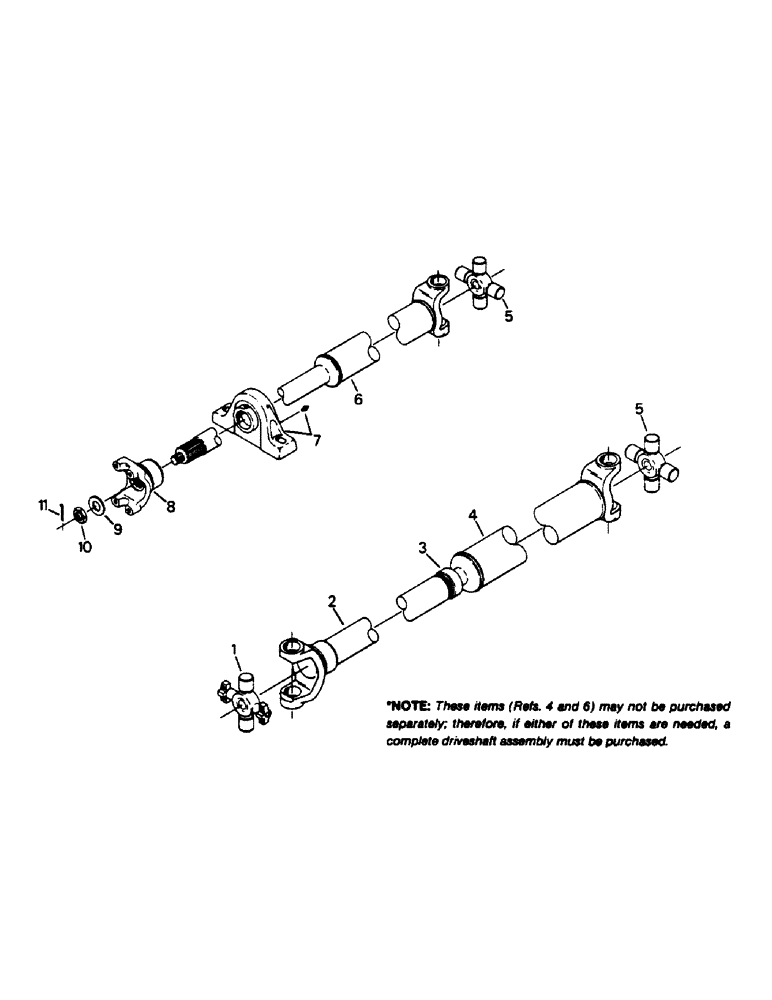

Запчасти Case IH 9130 (10-15) - PTO DRIVESHAFTS Options & Miscellaneous

90-6644T92

DRIVE SHAFT

DRIVESHAFT ASSEMBLY, Includes: Ref. 1 - 5

1шт.

1

33-1006T1

UNIVERSAL JOINT

U-JOINT - driveshaft

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - driveshaft yoke

1шт.

3

33-1002T1

SEAL ASSY.

SEAL ASSEMBLY - retaining

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - slip

1шт.

5

33-1003T1

SPIDER ASSY.

U-JOINT - driveshaft

2шт.

90-6641T92

DRIVE SHAFT

DRIVESHAFT ASSEMBLY, Includes: Ref. 5 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - driveshaft yoke

1шт.

7

33-1007T1

PILLOW BLOCK

BEARING - pillow block

1шт.

8

33-1307T1

FORK

YOKE - driveshaft

1шт.

9

33-1308T1

WASHER

- flat, retainer

1шт.

10

33-1309T1

NUT

- driveshaft yoke

1шт.

11

33-1310T1

PIN, SPLIT (COTTER)

PIN - cotter

1шт.
