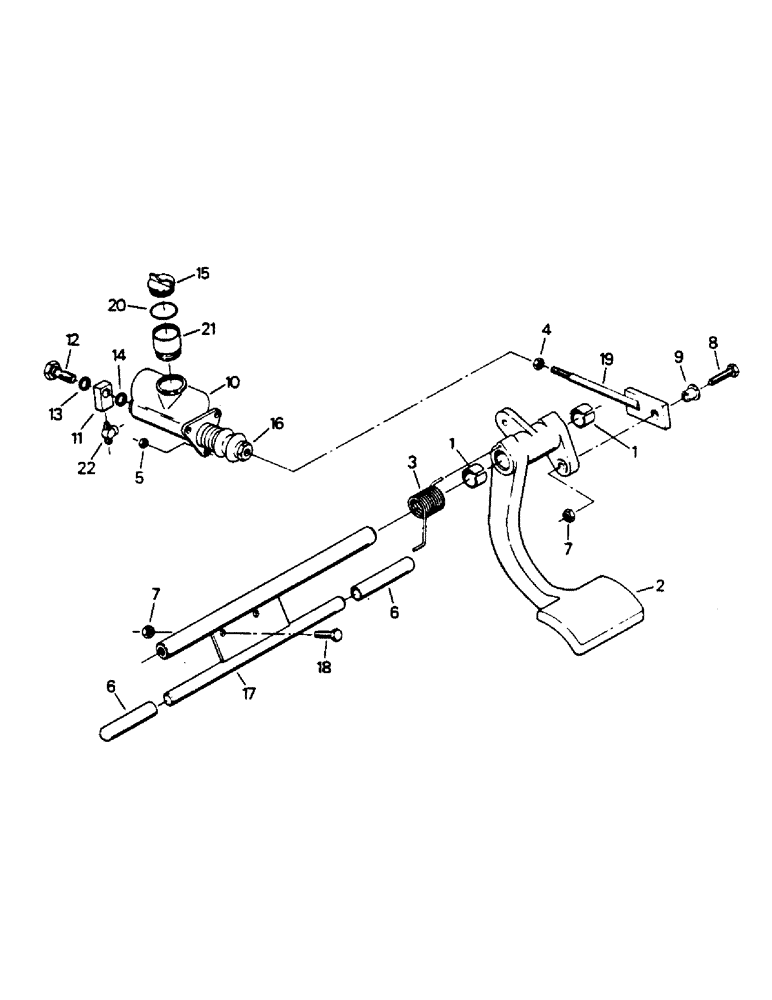

Запчасти Case IH 9130 (05-4) - BRAKE CONTROLS (5.1) - BRAKES

1

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

BEARING - brake controls

2шт.

2

60-4251T2

PEDAL

- brake

1шт.

3

11-19

SPRING

- brake pedal return

1шт.

4

19-92

NUT,7/16"-20, G2

- 7/16 UNF G-B

1шт.

5

19-341

LOCK NUT,3/8" - 16, GB

NUT - lock, 3/8 UNC G-A

3шт.

6

1-3520

BUMPER

COVER - rubber molding

2шт.

7

19-653

LOCK NUT

- lock, 1/2 UNC G-A

3шт.

8

19-46

BOLT,1/2" - 13 x 2", Gr 5

CAPSCREW, 1/2 UNC x 2 G-5

1шт.

9

60-4337T1

FLANGED BEARING

BEARING - flanged

1шт.

10

1-2961T91

KIT

CYLINDER ASSEMBLY - brake master, Includes: Ref. 11 - 16

1шт.

35-1079

SEAL KIT

REPAIR KIT - minor

1шт.

35-1079 THIS IS SEAL KIT FOR 1-2961T91 CYLINDER WHICH HAS A 1.000" BORE. 35-1894T91 IS SEAL KIT FOR 90-7554T91 WHICH HAS A .88" BORE.

1шт.

11

31-664

FITTING

- swivel, brake

1шт.

12

31-663

BANJO BOLT

BOLT - brake outlet port

1шт.

13

1-1799

GASKET

- brake fitting, outer

1шт.

14

1-1800

GASKET

- brake fitting, inner

1шт.

15

1-9956

PLUG

CAP - master cylinder

1шт.

16

1-2960

STEM

ROD - push, brake

1шт.

17

60-5074T1

PEDAL

MOUNT - pedal, clutch and brake

1шт.

18

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2 UNC x 1-1/4 G-5

2шт.

19

60-4306T1

THREADED ROD

ROD - push, pedal

1шт.

20

60-4581T1

GASKET

- brake cap

1шт.

21

60-4546T1

INSERT

EXTENSION - brake fill

1шт.

22

1-3100

TEE

- brake line

1шт.
