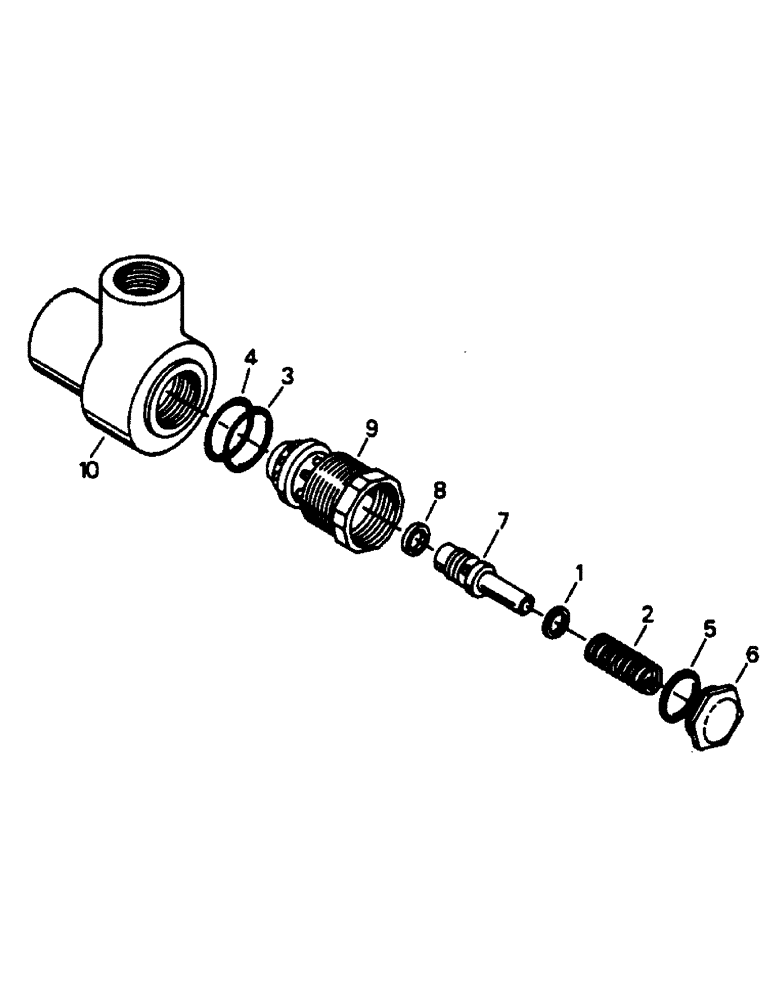

Запчасти Case IH 9130 (10-13) - RELIEF VALVE ASSEMBLY Options & Miscellaneous

50-2291T91

VALVE

ASSEMBLY, relief, Includes: Ref. 1 - 10

1шт.

1

18-1509

SHIM

- relief poppet

1шт.

2

18-1711

SPRING

- compression

1шт.

18-1418

SEAL KIT

KIT - seal, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

6

18-923

PLUG

CAP - relief

1шт.

18-1417

SEAL

RELIEF ASSEMBLY - poppet and seal, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET - relief

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

9

18-924

VALVE PRESSURE RELIE

BODY - relief

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.
