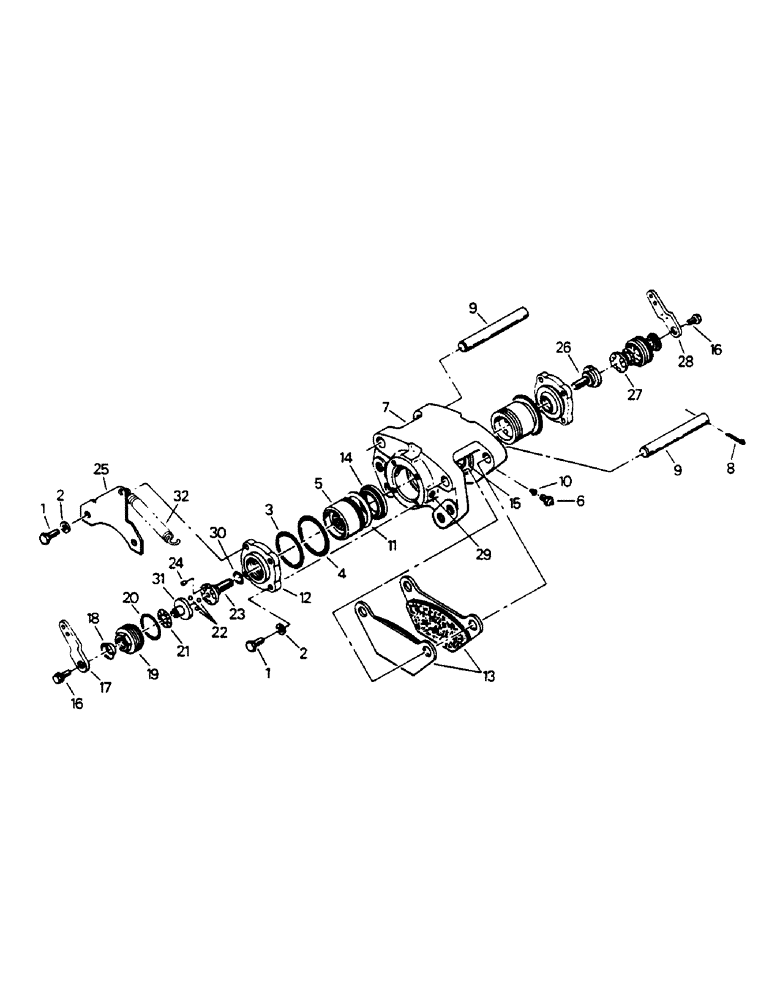

Запчасти Case IH 9130 (05-2) - BRAKE CALIPER ASSEMBLY (5.1) - BRAKES

90-1352T91

CALIPER

ASSEMBLY - brake, Includes: Ref. 1 - 32

1шт.

1

90-3445T1

SCREW,Hex, 3/8" - 16 x 1"

CAPSCREW

8шт.

2

19-117

LOCK WASHER,3/8"

3/8"

4шт.

3

90-3479T1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

O-RING

2шт.

4

90-3480T1

SEAL

- piston

2шт.

5

90-3443T1

PISTON

- brake

2шт.

6

90-3460T1

SCREW

- bleeder

3шт.

7

90-3422T1

PLUG

HOUSING - caliper

1шт.

8

323-1

COTTER PIN,5/32" x 1 1/4"

PIN - cotter, 1/8 x 1-1/2 (19-658)

4шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

9

90-3458T1

PIN

- brake pad

2шт.

10

90-3459T1

INSERT

- tube seat

4шт.

11

90-3481T1

INSULATOR

- piston

2шт.

12

90-3444T1

ANCHOR

MOUNT - park brake actuator

2шт.

13

90-3457T1

BRAKE LINING

PAD - brake

2шт.

14

90-3461T1

RETAINER

2шт.

15

90-3482T1

BOOT

- dust

2шт.

16

90-3456T1

SERRATED SCREW,Hex Serrated Washer

MACHINE SCREW

2шт.

17

90-3454T1

LEVER

- park brake actuating right

1шт.

18

90-3477T1

SEAL

- actuator shaft

2шт.

19

90-3453T1

RETAINER

- actuating linkage

2шт.

20

90-3478T1

O-RING

- retainer

2шт.

21

90-3452T1

THRUST BEARING

- thrust

2шт.

22

90-3449T1

BALL

6шт.

23

90-3446T1

SCREW

- thrust, right

1шт.

24

90-3448T1

PIN

2шт.

25

90-3462T1

SUPPORT

BRACKET - spring

2шт.

26

90-3447T1

SCREW

- thrust, left

1шт.

27

90-3451T1

SHAFT

- actuator, left

1шт.

28

90-3455T1

LEVER

- park brake actuating, left

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG - cap

1шт.

30

90-3483T1

O-RING

O-RING

2шт.

31

90-3450T1

SHAFT

- actuator, right

1шт.

32

90-2902T1

SPRING

- return

2шт.
