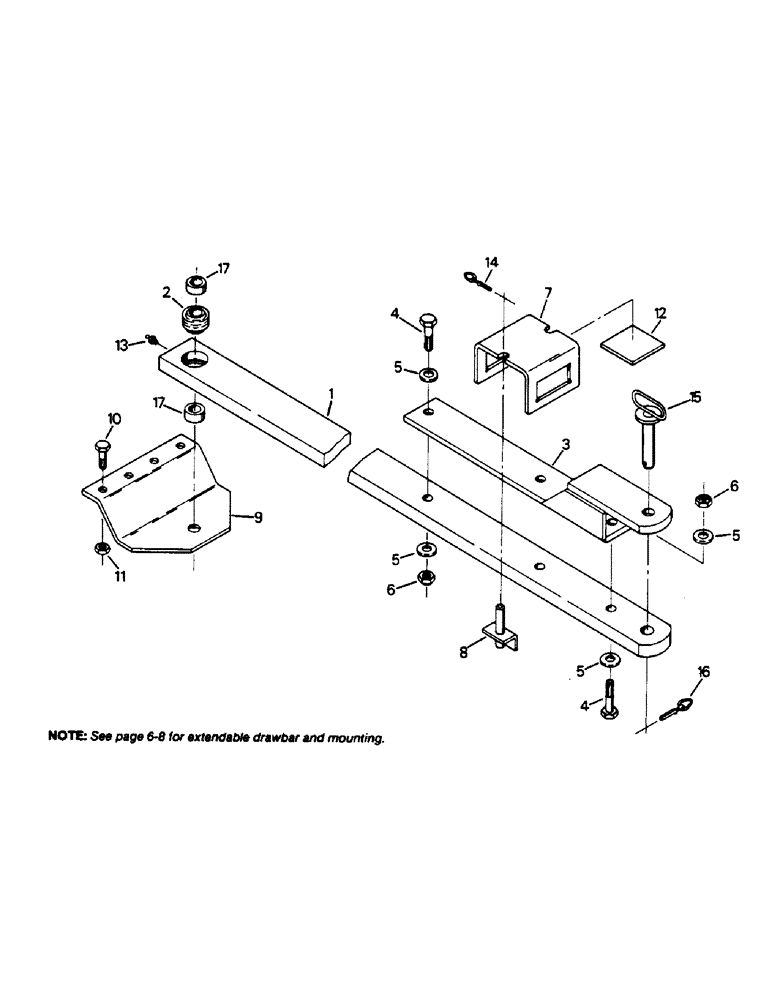

Запчасти Case IH 9130 (06-7) - DRAWBAR AND MOUNTING (12) - FRAME

1

70-3139T1

DRAWBAR

1шт.

2

15-19

BEARING

- drawbar pivot

1шт.

3

70-3140T1

CLEVIS

- drawbar

1шт.

4

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

CAPSCREW, 1 UNC x 3-1/2 G-8

3шт.

5

19-5739

WASHER

- hardened, 1 x 2 x 5/32 thk

6шт.

6

19-859

LOCK NUT

- lock, 1 UNC G-B

3шт.

7

70-3144T1

YOKE

- drawbar slide

1шт.

8

70-3148T1

STOP

PIN - stop, drawbar slide

2шт.

9

70-3150T1

PLATE

- drawbar hinge

1шт.

10

19-63

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAPSCREW, 3/4 UNC x 2-1/2 G-5

4шт.

11

19-85

LOCK NUT

- lock, 3/4 UNC G-A

4шт.

12

70-3151T1

LARGE PLATE

PLATE - slide

1шт.

13

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

14

19-6056

LOCK PIN,7/16" x 1 3/4"

PIN - klik

2шт.

15

70-4712T1

PIN

- implement

1шт.

16

19-6226

PIN

- klik

1шт.

17

70-3138T1

SPACER

- drawbar mounting

2шт.
