Запчасти Case IH 9130 (06-6) - DRAWBAR HANGER AND MISCELLANEOUS, WITHOUT THREE POINT HITCH (12) - FRAME

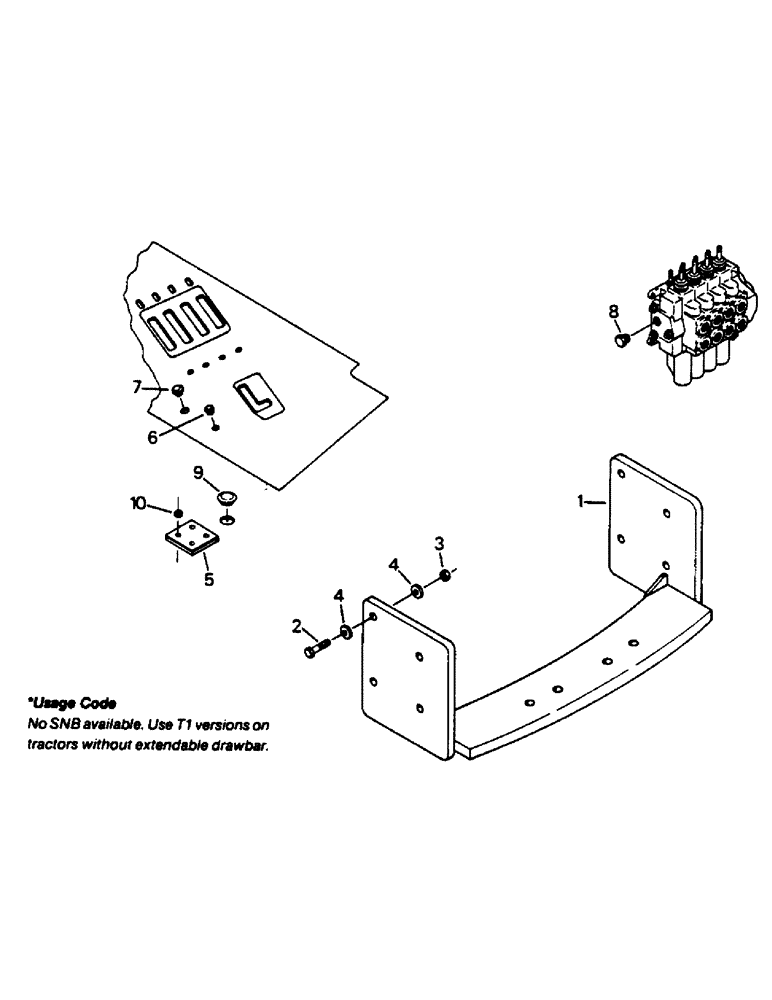

Схема запчастей Case IH 9130 - (06-6) - DRAWBAR HANGER AND MISCELLANEOUS, WITHOUT THREE POINT HITCH (12) - FRAME
3
10
9
6
5
2
4
8
7
1
4

Артикул

Название

Примечание

Количество

1

70-3154T2

HANGER

- drawbar (70-3154T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

2

19-6173

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

CAPSCREW, 3/4 UNC x 2-1/4 G-8

8шт.

3

19-85

LOCK NUT

- lock, 3/4 UNC G-B

8шт.

4

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 thk

16шт.

5

60-4652T1

COVER

- console floorboard

1шт.

6

60-4258T1

PLUG

- hole, 3/8

1шт.

7

64-146

PLUG

- hole, 1/2

1шт.

8

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- with o-ring (6)

1шт.

9

22-619

GROMMET

PLUG - hole, 1-1/4

1шт.

10

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 UNC G-A

4шт.

Выбрано товаров: 11
