(01-49) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS SERIAL NUMBER 17900707 AND AFTER

Запчасти Case IH 9130 (01-49) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS SERIAL NUMBER 17900707 AND AFTER (10) - CAB

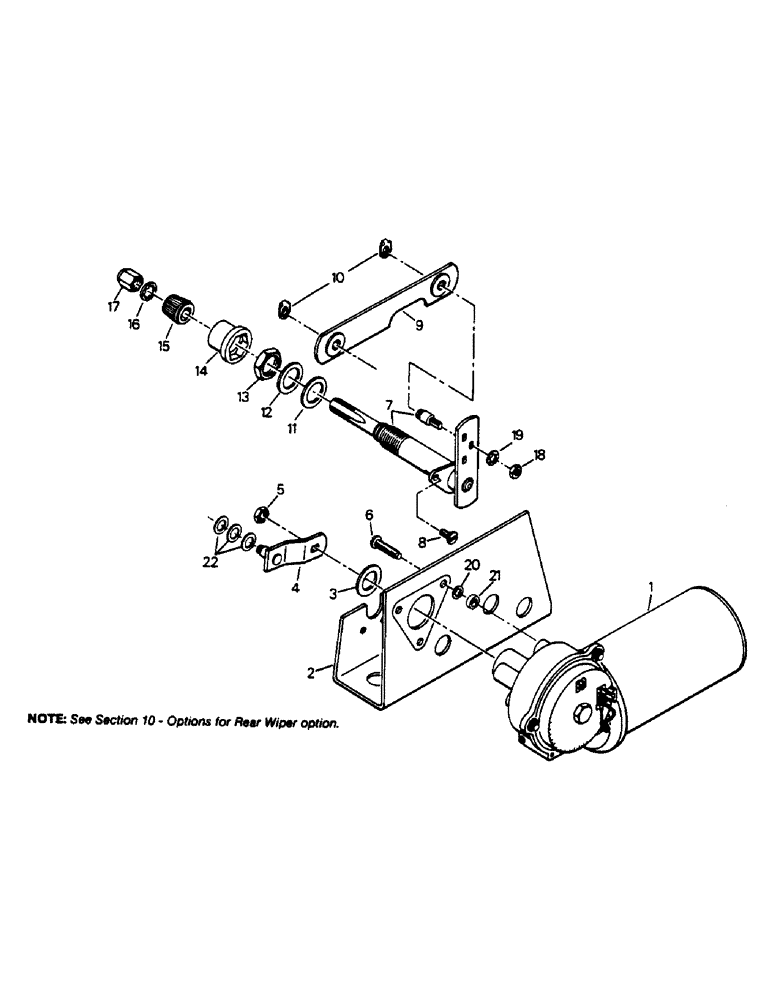

Схема запчастей Case IH 9130 - (01-49) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS SERIAL NUMBER 17900707 AND AFTER (10) - CAB
17
15
20
1
6
11
10
5
8
9
16
3
7
13
18
12
14
22
4
21
2
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

60-5908T91

WIPER MOTOR

DRIVE ASSEMBLY - wiper (Front windows), Includes: Ref. 1 - 21

1шт.

1

2-6866T1

MOTOR, ELECTRIC

MOTOR - wiper

1шт.

2

1-2681

SUPPORT

BRACKET - motor mounting

1шт.

3

1-2678

WASHER

- wave

1шт.

4

60-5914T1

LEVER

- drive

1шт.

5

1-2680

NUT

NUT - with lock washer

1шт.

6

1-2682

BOLT

SCREW - with lock washer

3шт.

7

2-6869T1

SHAFT AND PIVOT - wiper

1шт.

8

2-6870T1

SCREW

- with lock washer

2шт.

9

1-2683

LINK

- connecting

1шт.

10

1-2685

CLIP

- spring, retaining

2шт.

11

60-3495T1

WASHER

1шт.

12

60-3496T2

WASHER

1шт.

13

60-3497T1

NUT

1шт.

14

60-3498T1

COVER

CAP

1шт.

15

60-3499T1

BLOCK DRIVER

DRIVER - knurled, wiper arm

1шт.

16

60-3501T1

WASHER

1шт.

17

60-3500T1

CAP

NUT

1шт.

18

19-936

JAM NUT

- jam, 1/4 UNF G-B

1шт.

19

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal lock, 1/4

1шт.

20

60-5913T1

SPACER

3шт.

21

19-6265T1

SPACER

3шт.

22

19-700

WASHER,5/16"

- flat, 5/16 (Qty 1 with side and rear wiper option)

3шт.
