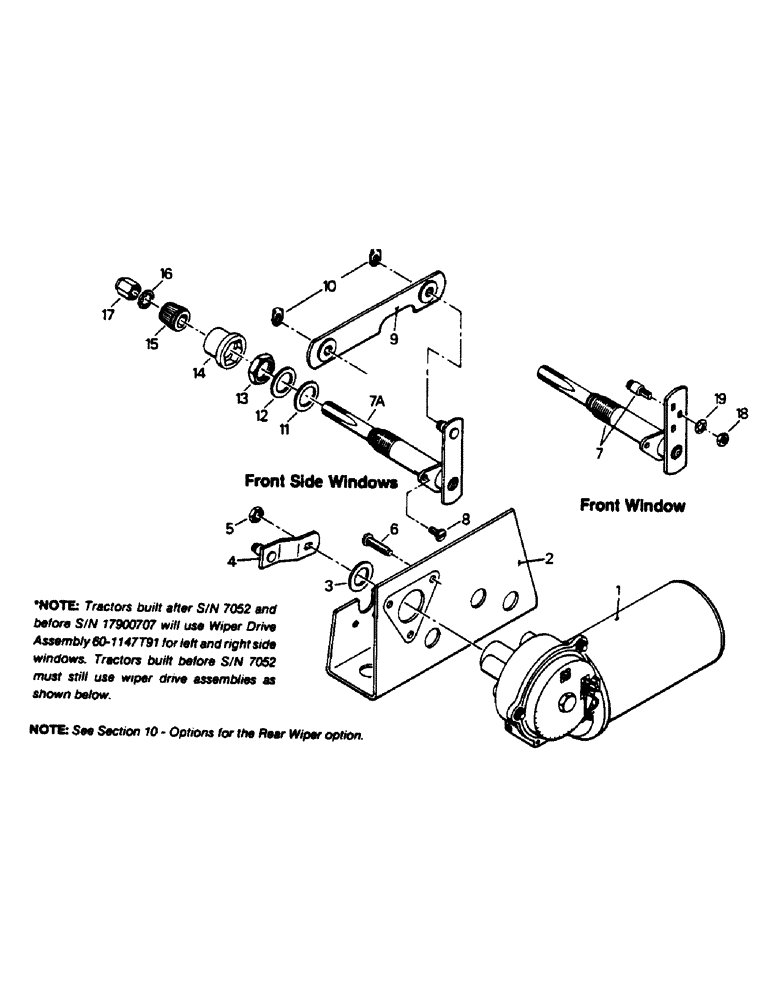

Запчасти Case IH 9130 (01-48) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS PRIOR TO SERIAL NUMBER 17900707 (10) - CAB

60-1147T91

DRIVE

ASSEMBLY - wiper (Front window), Includes: Ref. 1 - 19

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

60-1437T91

DRIVE

ASSEMBLY - wiper (Left front side window), Includes: Ref. 1 - 17

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

60-1438T91

DRIVE

ASSEMBLY - wiper (Right front side window)

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

1

20-1205T1

ADAPTER

MOTOR - wiper (Front window)

1шт.

2-6866T1

MOTOR, ELECTRIC

MOTOR - wiper (Front side windows)

1шт.

2

1-2681

SUPPORT

BRACKET - motor mounting

1шт.

3

1-2678

WASHER

- wave

1шт.

4

2-6867T1

ARM

LEVER - drive

1шт.

5

1-2680T1

NUT - with lock washer

1шт.

6

1-2682T1

SCREW - with lock washer

3шт.

7

2-6869T91

SHAFT ASSY.

SHAFT AND PIVOT - arm, Includes: Ref. 18 and 19

1шт.

7a

2-6868T1

SHAFT ASSY.

SHAFT AND PIVOT - arm

1шт.

8

2-6870T1

SCREW

- with lock washer

2шт.

9

1-2683

LINK

- connecting

1шт.

10

1-2685

CLIP

- spring, retaining

2шт.

11

60-3495T1

WASHER

1шт.

12

60-3496T2

WASHER

1шт.

13

60-3497T1

NUT

1шт.

14

60-3498T1

COVER

CAP

1шт.

15

60-3499T1

BLOCK DRIVER

DRIVER - knurled, wiper arm

1шт.

16

60-3501T1

WASHER

1шт.

17

60-3500T1

CAP

NUT

1шт.

18

19-936

JAM NUT

- jam, 1/4 UNF G-B

1шт.

19

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal lock, 1/4

1шт.
