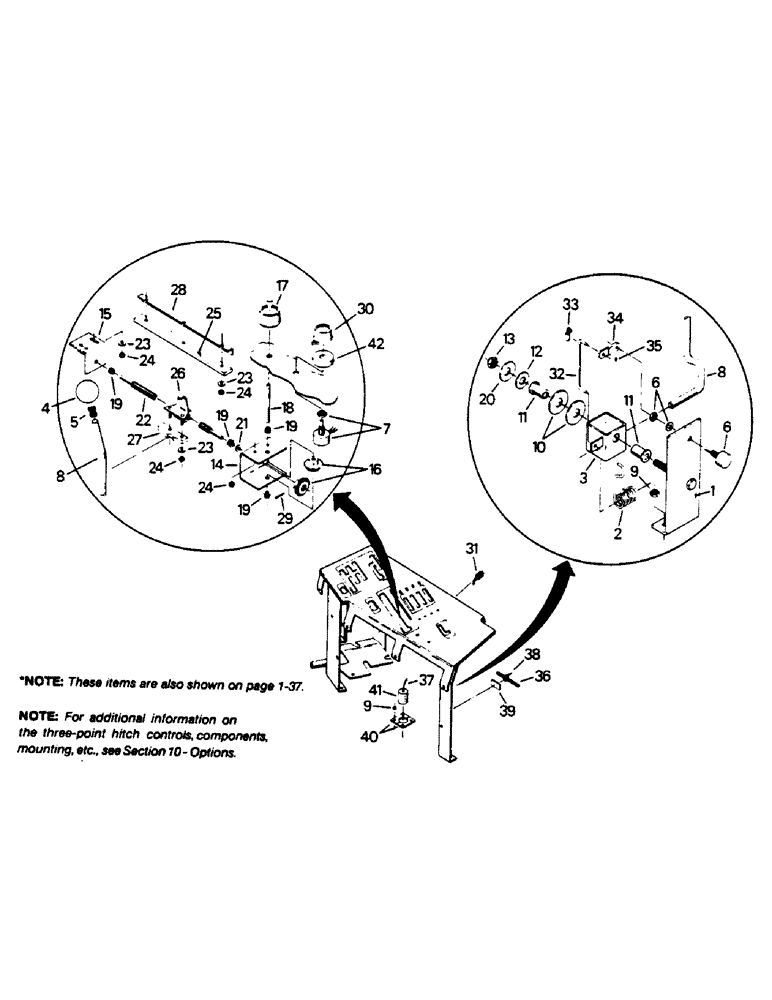

Запчасти Case IH 9130 (01-45) - THREE-POINT HITCH CONTROLS (10) - CAB

1

60-4691T1

BRACKET

- control mounting

1шт.

2

60-4294T1

SPRING

- lever return

1шт.

3

60-3941T1

LEVER

Potentiometer Actuating

1шт.

4

60-4273T1

BALL KNOB

KNOB - three-point hitch lever

1шт.

5

90-4332T1

OIL SEAL

TOLERANCE RING - knob mount

1шт.

6

20-2125T2

POTENTIOMETER

1шт.

7

20-2093T1

POTENTIOMETER

1шт.

8

60-3943T1

THREADED ROD

LEVER - three-point hitch

1шт.

9

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 UNC G-A

6шт.

10

19-711

WASHER,5/8", SAE

- flat, 5/8

2шт.

11

90-4367T1

BRONZE BUSHING

BEARING - flanged

2шт.

12

19-109

WASHER,1/2"

- flat, 1/2

1шт.

13

19-653

LOCK NUT

- lock, 1/2 UNC G-A

1шт.

14

60-4757T1

SUPPORT

BRACKET - gear mounting

1шт.

15

60-4758T1

SUPPORT

BRACKET - indicator rod mount

1шт.

16

60-4275T1

GEAR, BEVEL

GEAR SET - depth control

1шт.

17

60-3957T1

BUTTON

KNOB - depth control

1шт.

18

60-3949T1

ROD

- gear actuating

1шт.

19

19-6129

NYLON BEARING

BEARING

4шт.

20

19-5648

SPRING WASHER

- spring, 1/2

1шт.

21

19-5924

SPRING WASHER

- spring, 1/4

1шт.

22

60-3955T1

STEM

ROD - threaded, indicator

1шт.

23

19-195

WASHER,#10

- flat, no. 10

7шт.

24

19-5563

LOCK NUT

- lock, no. 10 UNC G-A

9шт.

25

60-3954T1

LARGE PLATE

WEARSTRIP - indicator

1шт.

26

60-3950T1

INDICATOR

- depth

1шт.

27

60-3953T1

LARGE PLATE

TAB - lever restraint

1шт.

28

60-4276T1

SUPPORT

BRACKET - console stiffener

1шт.

29

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

30

60-3958T1

BUTTON

Knob, Lowering Rate Adjustment

1шт.

31

1-7128

IGNITION SWITCH

SWITCH ASSEMBLY - calibration

1шт.

32

60-2802T1

STEM

Rod, Potentiometer Actuating

1шт.

33

60-2404T1

RETAINER

- rod

2шт.

34

60-1561T2

ARM

Actuating, Potentiometer, Includes Reference 35, 60-1561T1

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

35

178-863

SET SCREW,Hex Soc, #4-40 x 3/8"

SCREW - set, no. 4 UNC x 3/8 (Used with 60-1561T2)

1шт.

19-5385

SET SCREW,Hex Socket, #2-56 x 1/2"

SCREW - set, no.2 UNC x 1/4 (Used with 60-1561T1)

1шт.

36

20-2398T1

HARNESS

- wire, three-point control

1шт.

37

20-2399T1

HARNESS

- wire, three-point

1шт.

38

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

6шт.

39

22-823

MOUNT

MOUNT - adhesive backed

1шт.

40

60-4651T1

ANGLE

PLATE - seal retainer

2шт.

41

60-3705T1

FOAM

SEAL - foam

1шт.

42

60-4919T1

WASHER

- foam

1шт.
