(10-11) - PRESSURE REDUCING VALVE ASSEMBLY

Запчасти Case IH 9130 (10-11) - PRESSURE REDUCING VALVE ASSEMBLY Options & Miscellaneous

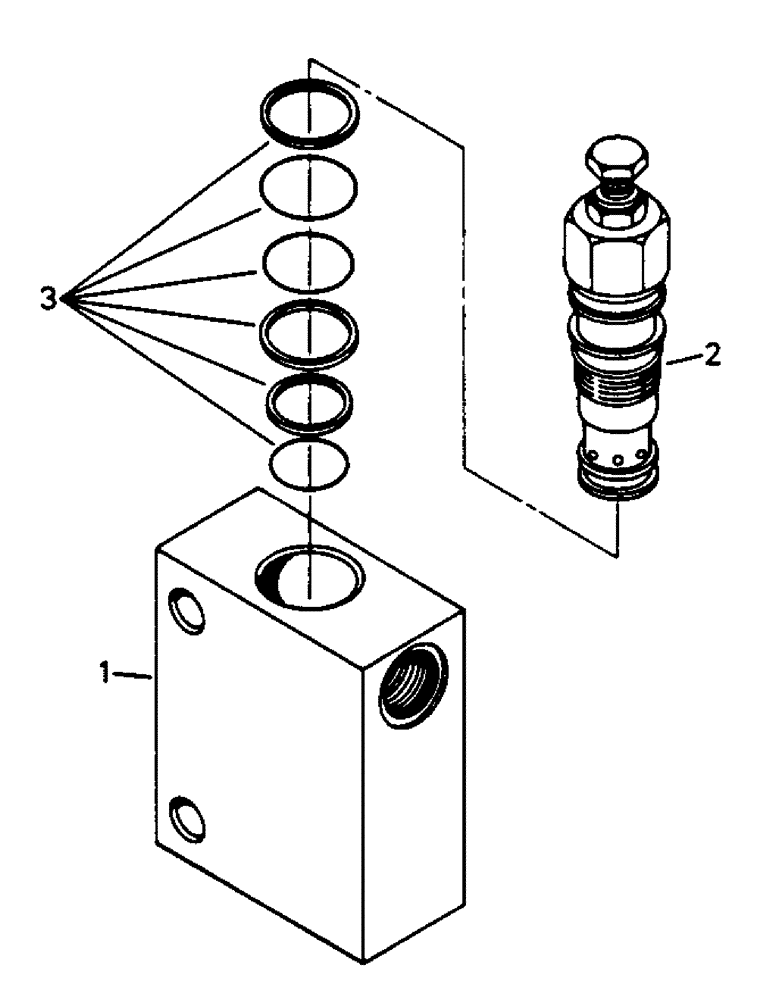

Схема запчастей Case IH 9130 - (10-11) - PRESSURE REDUCING VALVE ASSEMBLY Options & Miscellaneous
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-2390T92

VALVE

ASSEMBLY - pressure reducing, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

50-2715T91

CARTRIDGE

- pressure reducing, Includes: Ref. 3

1шт.

3

50-2717T1

SEAL KIT

KIT - seal

1шт.

Выбрано товаров: 4
