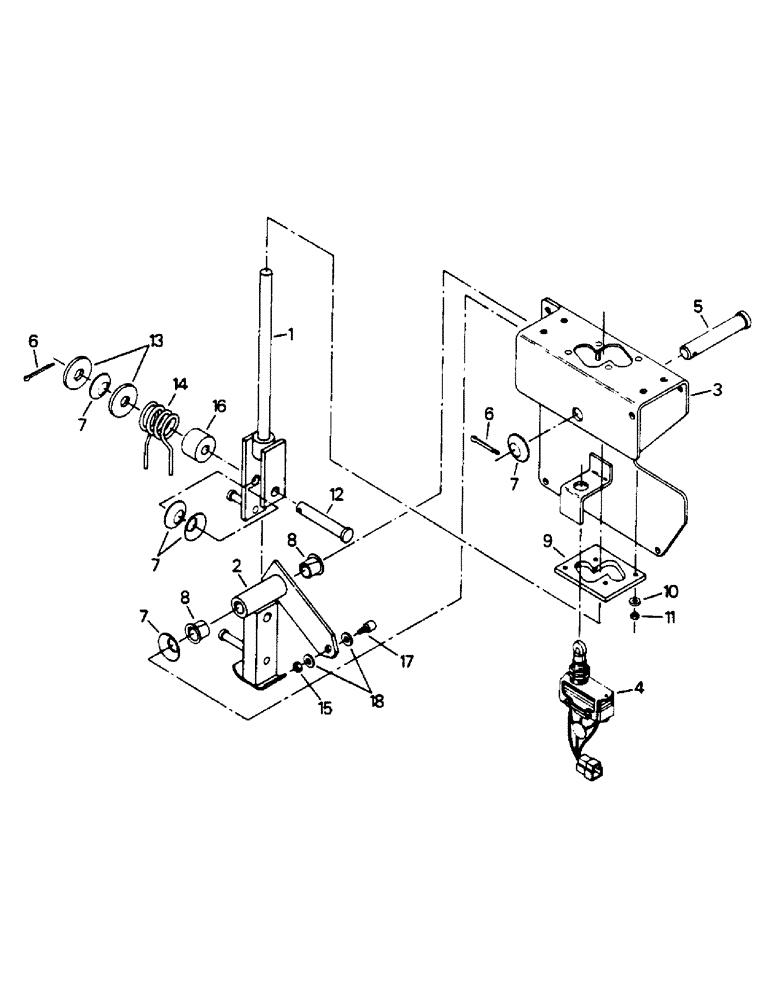

Запчасти Case IH 9130 (01-41) - MODE LEVER ASSEMBLY (10) - CAB

60-4446T93

LEVER

ASSEMBLY - mode, Includes: Ref. 1 - 18

1шт.

1

60-4517T3

LEVER

- mode

1шт.

2

60-4518T2

PIVOT

- mode lever

1шт.

3

60-4519T3

FRAME

- mode

1шт.

4

20-2050T2

IGNITION SWITCH

SWITCH ASSEMBLY

1шт.

5

19-6158

CLEVIS PIN,1/2" x 2 3/4"

PIN - clevis, 1/2 x 2-3/4 inch

1шт.

6

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

2шт.

7

19-6034

SPRING WASHER

- curved spring, 1/2

5шт.

8

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flanged

2шт.

9

60-4521T1

PLATE

- lever wear

1шт.

10

19-708

WASHER,#6

- flat, no. 6 x 3/8 x 1/16 thk

4шт.

11

19-5564

LOCK NUT,#6-32, GB

NUT - lock, no. 6 UNC G-A

4шт.

12

19-6159

CLEVIS

PIN - clevis, 3/8 x 2-1/4 inch

1шт.

13

19-6192

WASHER - flat, 3/8 x 1-1/4 x 7/64 thk

2шт.

14

70-4468T2

SPRING - lever return

1шт.

15

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- Keps, no. 8 UNC G-A

1шт.

16

60-4511T2

SPACER

- spring

1шт.

17

20-1316T1

ACTUATOR

- magnetic

1шт.

18

19-281

WASHER,#8

- flat, no. 8

2шт.
