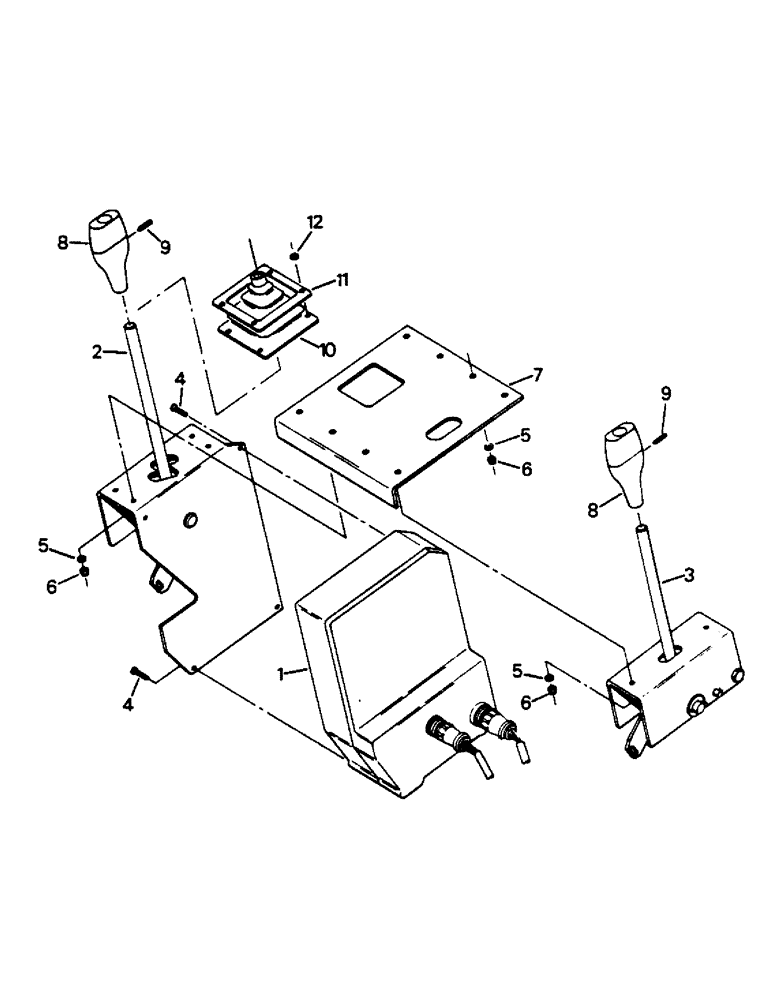

Запчасти Case IH 9130 (01-40) - TRANSMISSION CONTROLS (10) - CAB

60-5868T91

CONTROL

LER ASSEMBLY - transmission, Includes: Ref. 1 - 7

1шт.

60-6570T1R

REMAN ELECT CONTROL

9130 PRIOR TO P.I.N. JCB0003600 (12/86-6/89), Reman for New P/N 60-5868T91

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

20-2487T1

TERMINAL BOX

BOX ASSEMBLY - electronic

1шт.

60-6570T1R

REMAN ELECT CONTROL

9130 (12/86-6/89), Reman for New P/N 20-2487T1

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

LEVER ASSEMBLY - mode, See Figure 1-41

1шт.

3

LEVER ASSEMBLY - pulser, See Figure 1-42

1шт.

4

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

TAPPING SCREW, no. 10 UNS x 3/4

4шт.

5

19-105

WASHER,1/4", SAE

- flat, 1/4

14шт.

6

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

14шт.

7

60-5058T1

SUPPORT

BRACKET - lever mounting

1шт.

8

60-6036T1

KNOB

KNOB - control lever (60-4512T1)

2шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

9

19-5926

SET SCREW

SCREW - set, no. 8 UNC x 3/8

2шт.

10

60-5847T1

BOOT

- lever inclosure (Used on ROPS only cab only)

2шт.

11

60-5846T1

RETAINER

- boot (Used on ROPS only cab only)

2шт.

12

19-5564

LOCK NUT,#6-32, GB

NUT - lock, no. 6 UNC G-A (Used on ROPS only cab only)

8шт.
