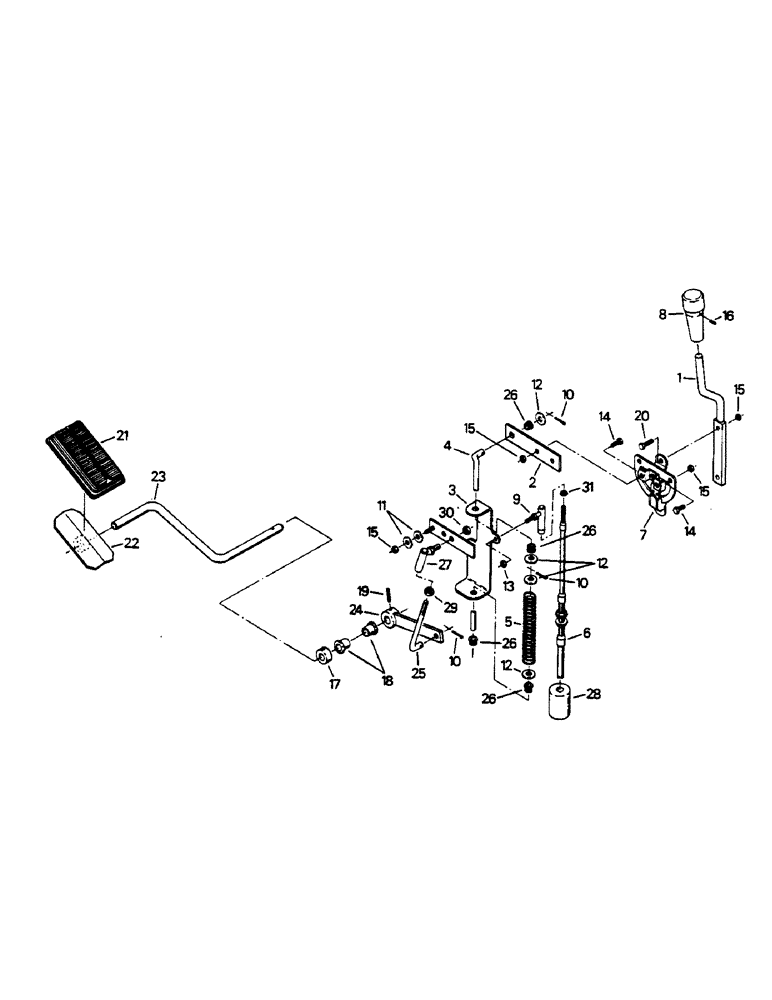

Запчасти Case IH 9130 (01-38) - THROTTLE AND DECELERATOR, DELUXE CAB ONLY (10) - CAB

1

60-4686T2

CONTROL LEVER

LEVER - throttle

1шт.

2

60-3696T1

LINING

STRAP - quadrastat

1шт.

3

60-4935T1

BRACKET

- throttle and decelerator

1шт.

4

60-4931T1

ROD

- throttle actuating

1шт.

5

60-3702T1

SPRING

- actuating

1шт.

6

60-3703T1

CABLE

- throttle, push-pull

1шт.

7

60-3783T1

ACTUATOR

QUADRASTAT - throttle

1шт.

8

60-2050T3

BALL KNOB

KNOB - throttle (60-2050T2)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

9

6-1431

BALL JOINT

JOINT - ball, no. 10 UNF

1шт.

10

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

3шт.

11

19-6188

WASHER

- nylon, 5/16 x 1-3/16 x 1/8 thk

2шт.

12

19-107

WASHER

- flat, 3/8

4шт.

13

9411893

LOCK NUT,#10-32, GB

NUT - lock, no. 10 UNF G-A

1шт.

14

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 5/8 G-5

4шт.

15

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

7шт.

16

19-5798

SET SCREW

SCREW - set, no. 8 UNC x 5/16

1шт.

17

19-490

COLLAR

- set, 1/2

1шт.

18

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flange

2шт.

19

19-505

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

20

19-541

BOLT,1/4" - 20 x 7/8", Gr 5

CAPSCREW, 1/4 UNC x 7/8 G-5

2шт.

21

24-13

PROTECTION STRIP

PAD - pedal, decelerator

1шт.

22

60-3688T1

PEDAL

- decelerator

1шт.

23

60-4926T1

STEM

ROD - actuating decelerator

1шт.

24

60-4928T1

CONTROL LEVER

LEVER - decelerator

1шт.

25

60-4930T1

ROD

- decelerator linkage

1шт.

26

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BEARING - nylon

4шт.

27

19-173

GASKET

JOINT - ball, 5/16 UNF

1шт.

28

60-3705T1

FOAM

SEAL - foam

1шт.

29

19-236

JAM NUT,5/16" - 24, Gr 5

- jam, 5/16 UNF G-A

1шт.

30

22-1129

JAM NUT

- locking jam, 5/16 UNF G-A

1шт.

31

19-308

NUT,#10 - 32

no. 10 UNF G-A

1шт.
