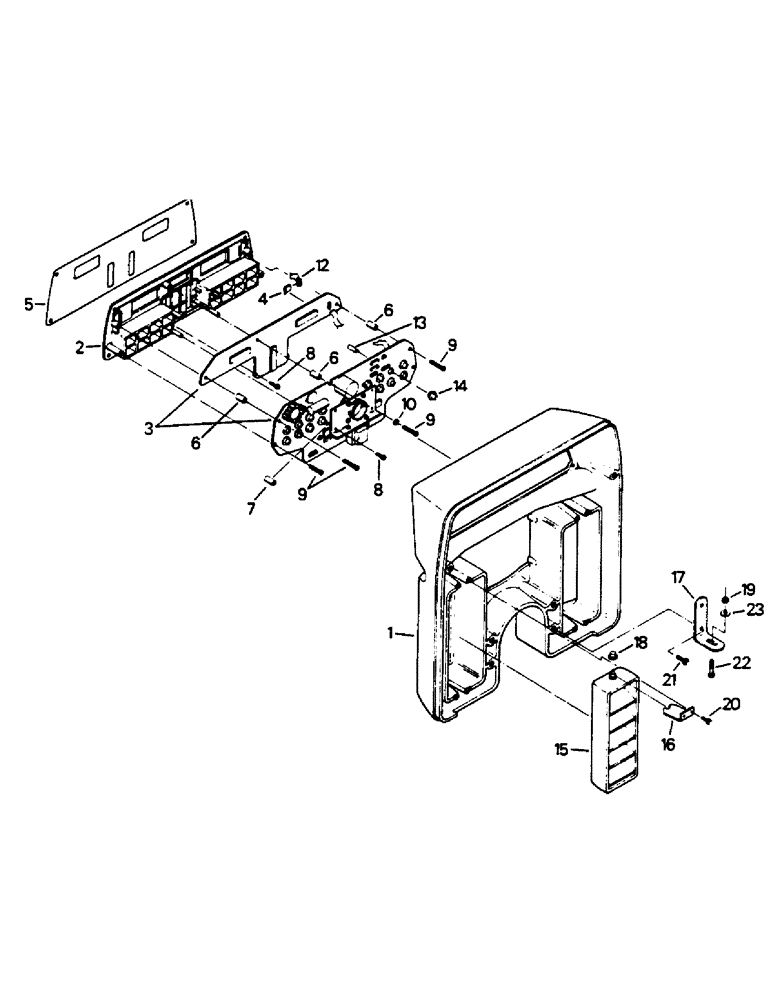

Запчасти Case IH 9130 (01-36) - DELUXE DASH ASSEMBLY (10) - CAB

1

60-5966T1

PANEL, INSTRUMENTS

HOUSING - dash, plastic (Gray)

1шт.

60-4786T1

PANEL ASSY.

PANEL - dash, plastic (Tan)

1шт.

20-2504T1

CONTROL

MODULE ASSEMBLY - electronic dash (Without ROPS post gauges and with tan interiors), Includes: Ref. 2 - 14

1шт.

20-2507T1

CONTROL

MODULE ASSEMBLY - electronic dash (Without ROPS post gauges and with gray interiors), Includes: Ref. 2 - 14

1шт.

25-2503T1

MODULE ASSEMBLY - electronic dash (With ROPS post gauges and with tan interiors), Includes: Ref. 2 - 14

1шт.

20-2506T1

CONTROL

MODULE ASSEMBLY - electronic dash (With ROPS post gauges and with gray interiors), Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

DASH

1шт.

3

NSS

NOT SOLD SEPARAT

PRINTED CIRCUIT BOARD - dash

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING

2шт.

5

NSS

NOT SOLD SEPARAT

PANEL - dash

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER

3шт.

7

NSS

NOT SOLD SEPARAT

SPACER

4шт.

8

NSS

NOT SOLD SEPARAT

TAPPING SCREW, no. 3 UNS x 3/8

6шт.

9

NSS

NOT SOLD SEPARAT

TAPPING SCREW, no. 8 UNS x 1-1/8

5шт.

10

NSS

NOT SOLD SEPARAT

WASHER - flat, no. 8

1шт.

11

NSS

NOT SOLD SEPARAT

SEALER - (Not shown)

1шт.

12

27-5047T1

KIT

SWITCH KIT - dash

2шт.

13

20-1179T1

LAMP

BULB - lamp (No. 194)

16шт.

14

20-1179T1

LAMP

SOCKET - bulb

16шт.

15

60-2008T1

DIFFUSER

LOUVER - air deflecting

2шт.

16

60-4019T1

ANCHOR

CLIP - louver retainer

4шт.

17

60-4020T1

SUPPORT

MOUNT - lower dash

2шт.

18

60-1948T1

BUSHING,0.3135" ID x 0.5" OD x 0.312"

BEARING - louver pivot

4шт.

19

19-82

LOCK NUT

- lock, 1/2 UNC G-B

2шт.

20

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

TAPPING SCREW, no. 8 UNS x 5/8

12шт.

21

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

CAPSCREW - flanged, 1/4 UNC x 1/2 G-5

4шт.

22

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 UNC x 1-1/2 G-5

2шт.

23

19-109

WASHER,1/2"

- flat, 1/2

2шт.
