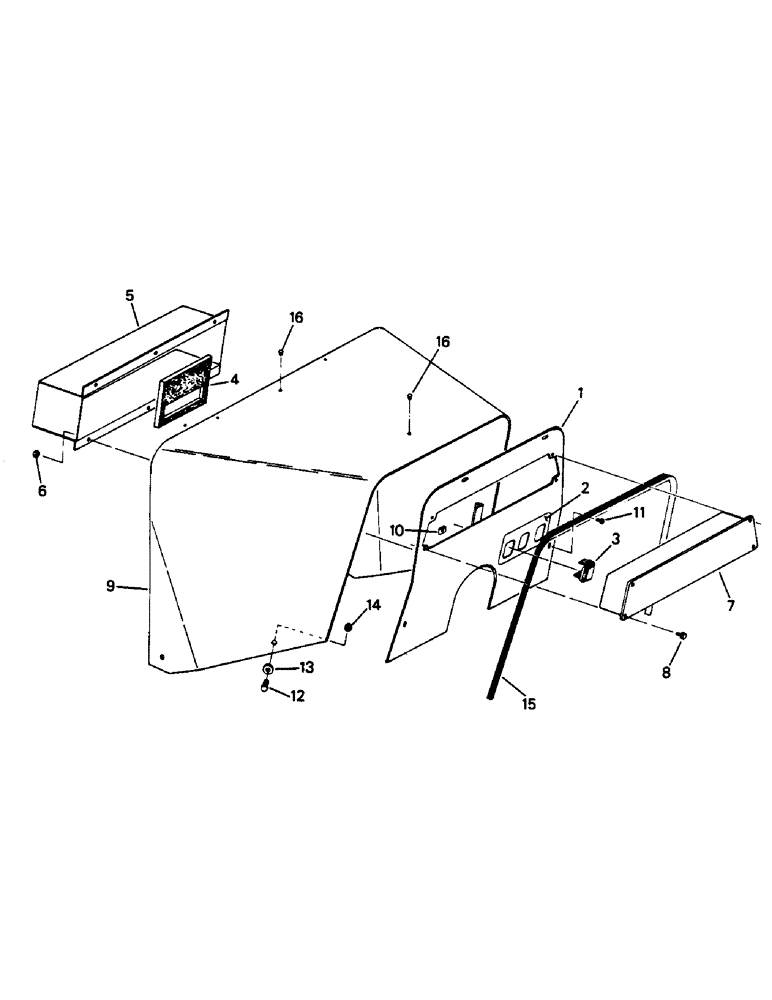

Запчасти Case IH 9130 (01-35) - DASH AND MOUNTING, ROPS ONLY CAB (10) - CAB

1

60-5832T1

PANEL

- dash

1шт.

2

60-5980T1

DECAL

- switch (With gray interiors)

1шт.

60-5860T1

DECAL

- switch (With tan interiors)

1шт.

3

60-3210T1

PLUG

- switch hole

2шт.

4

60-5828T1

SEAL

SEAL - foam

1шт.

5

60-5836T1

COVER

- dash

1шт.

6

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

6шт.

7

20-2504T1

CONTROL

MODULE ASSEMBLY - elctronic dash (With tan dash decals)

1шт.

20-2507T1

CONTROL

MODULE ASSEMBLY - electronic dash (With gray dash decals) (Dash modules include the following)

1шт.

20-1179T1

LAMP

BULB - lamp (No. 194)

16шт.

20-1178

SOCKET - bulb

16шт.

8

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

TAPPING SCREW, no. 8 UNS x 5/8

4шт.

9

60-5834T1

PANEL

CONSOLE - cover

1шт.

10

19-6119

STEEL SHEET NUT

NUT - U type, no. 10 UNC

6шт.

11

159950

NUT

MACHINE SCREW, no. 10 UNC x 3/4

6шт.

12

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

4шт.

13

19-106

WASHER,5/16", SAE

- flat, 5/16

4шт.

14

19-508

LOCK NUT

- lock, 5/16 UNC G-B

4шт.

15

60-5859T1

GASKET

MOLDING - edge cover

1шт.

16

60-4582T1

PLUG

- nylon

2шт.
