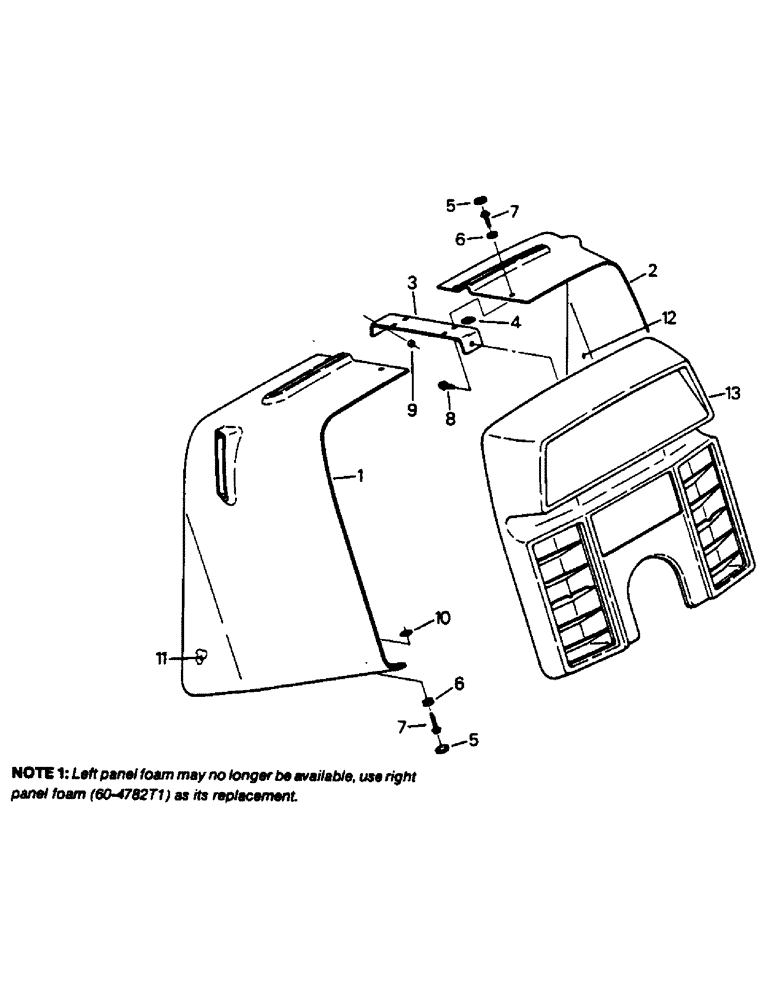

Запчасти Case IH 9130 (01-34) - DELUXE DASH AND MOUNTING (10) - CAB

1

60-5963T1

PANEL, SIDE

PANEL - dash, left (Gray)

1шт.

60-4787T1

PANEL ASSY.

PANEL - dash, left (Tan)

1шт.

2

60-5964T1

PANEL, SIDE

PANEL - dash, right (Gray)

1шт.

60-4788T1

PANEL ASSY.

PANEL - dash, right (Tan)

1шт.

3

60-4122T1

SUPPORT

STRAP - support

1шт.

4

19-6119

STEEL SHEET NUT

NUT - U type, no. 10 UNC

4шт.

5

60-5920T1

CAP

- trim (Gray)

8шт.

19-5735

CAP

- trim (Tan)

1шт.

6

1-8674

CAP WASHER

- trim cap

8шт.

7

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

SCREW, SELF TAPPING, (19-5986) Hex Hd, #10 x 1 1/4"

1шт.

Error correction only.

1шт.

8

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

CAPSCREW - flanged, 1/4 UNC x 1-1/4 G-5

1шт.

9

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

1шт.

10

19-105

WASHER,1/4", SAE

- flat

1шт.

11

60-4783T1

FOAM

- panel, left (See note 1)

1шт.

12

60-4782T1

FOAM

- panel, right

1шт.

13

DASH ASSEMBLY (See Figure 1-36)

1шт.
