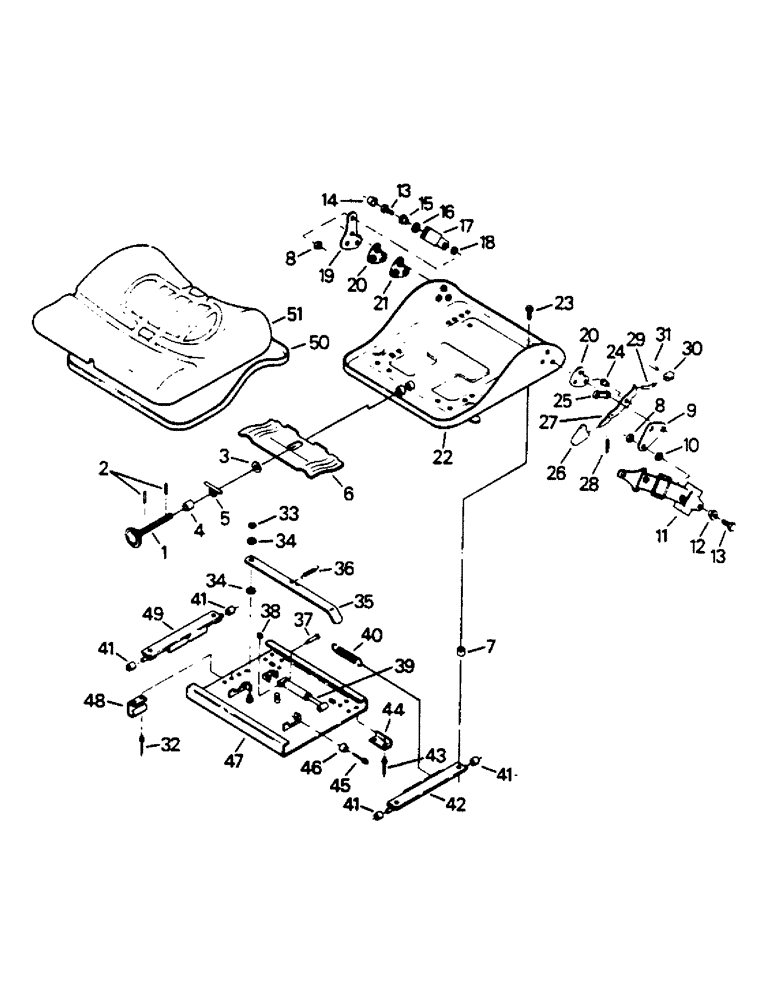

Запчасти Case IH 9130 (01-29) - SEAT ASSEMBLY, SEAT CUSHION AND LATERAL ISOLATOR (10) - CAB

1

60-4848T1

KNOB

SPINDLE ASSEMBLY - seat inclination

1шт.

2

40-1175

PIN

- spring, M3 x 18 MM

2шт.

3

40-1153

WASHER

- flat, M13

1шт.

4

60-3203T1

BUSHING

- spacer

1шт.

5

60-1687T1

NUT

- retaining

1шт.

6

60-1694T1

PLATE

- support

1шт.

7

60-3237T1

BUSHING

SPACER - seat pan mounting

4шт.

60-4869T91

SAFETY BELT

BELT ASSEMBLY - seat, safety, Includes: Ref. 8 - 19

1шт.

8

60-4870T1

NUT

7/16 UNF

2шт.

9

60-4871T1

ANCHOR

MOUNT - safety belt

1шт.

10

40-1159

WASHER

- flat, M13

1шт.

11

60-4872T1

STRAP

- safety belt

1шт.

12

60-3197T1

BUSHING

- strap swivel

1шт.

13

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

7/16 UNF x 1

2шт.

14

60-1656T1

COVER

- protective

1шт.

15

60-1666T1

BUSHING

- buckle swivel

1шт.

16

60-1662T1

WASHER

- spring, M15

1шт.

17

60-1658T1

BUCKLE

- safety belt

1шт.

18

60-1667T1

WASHER

- flat, M11

1шт.

19

60-1668T1

BRACKET

- safety belt

1шт.

20

60-1638T1

LARGE PLATE

SPACER - safety belt mount

2шт.

21

60-4844T1

PLATE

SPACER - safety belt bracket

1шт.

22

60-3236T1

PAN

- seat bottom

1шт.

23

60-1628T1

BOLT

CAPSCREW, M8 x 20 mm

4шт.

24

60-4855T1

BUSHING

- lever pivot

1шт.

25

60-4854T1

SPACER

- safety belt mount

1шт.

26

60-4861T1

HANDLE

- back reclining lever

1шт.

27

60-4856T1

LEVER

- back reclining

1шт.

28

60-4853T1

SPRING

- lever return

1шт.

29

60-4857T1

ROD

1шт.

30

60-4841T1

STOP

- reclining lever

1шт.

31

40-1232

PIN

- spring, M4 x 14 MM

1шт.

32

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 dia. x 1/4

2шт.

60-3235T91

LEVER ASSY.

LEVER ASSEMBLY, Includes: Ref. 33 - 35

1шт.

33

40-1155

CIRCLIP,M10

RING - snap, M9

1шт.

34

40-1183

WASHER

M10

2шт.

35

NSS

NOT SOLD SEPARAT

LEVER - lateral isolator

1шт.

36

60-3234T1

SPRING

- lever return

1шт.

60-3230T91

SHOCK ABSORBER

ASSEMBLY, Includes: Ref. 37 - 39

1шт.

37

60-3233T1

PIN

- shock mounting

2шт.

38

40-1182

CIRCLIP,M6

RING - snap, M5

2шт.

39

NSS

NOT SOLD SEPARAT

SHOCK ABSORBER

1шт.

40

60-3232T1

SPRING

- lateral isolator return

2шт.

41

60-3228T1

NEEDLE BEARING

- needle roller

4шт.

42

60-3229T1

BRACKET

- isolator, left

1шт.

60-3226T91

BASE

ASSEMBLY - isolator, Includes: Ref. 43 - 47

1шт.

43

NSS

NOT SOLD SEPARAT

RIVET - pop

8шт.

44

NSS

NOT SOLD SEPARAT

ANGLE

4шт.

45

NSS

NOT SOLD SEPARAT

RIVET - pop

2шт.

46

60-3231T1

BUMPER

- isolator

2шт.

47

NSS

NOT SOLD SEPARAT

BASE - lateral isolator

1шт.

48

60-3366T1

SPRING

- leaf

1шт.

49

60-3227T1

BRACKET

- isolator, right

1шт.

50

60-1640T1

SUPPORT

EXTRUSION - plastic

1шт.

51

60-5951T1

CUSHION

- seat bottom (With gray cloth upholstery)

1шт.

52

60-4914T1

CUSHION

- seat bottom (With tan cloth upholstery)

1шт.
