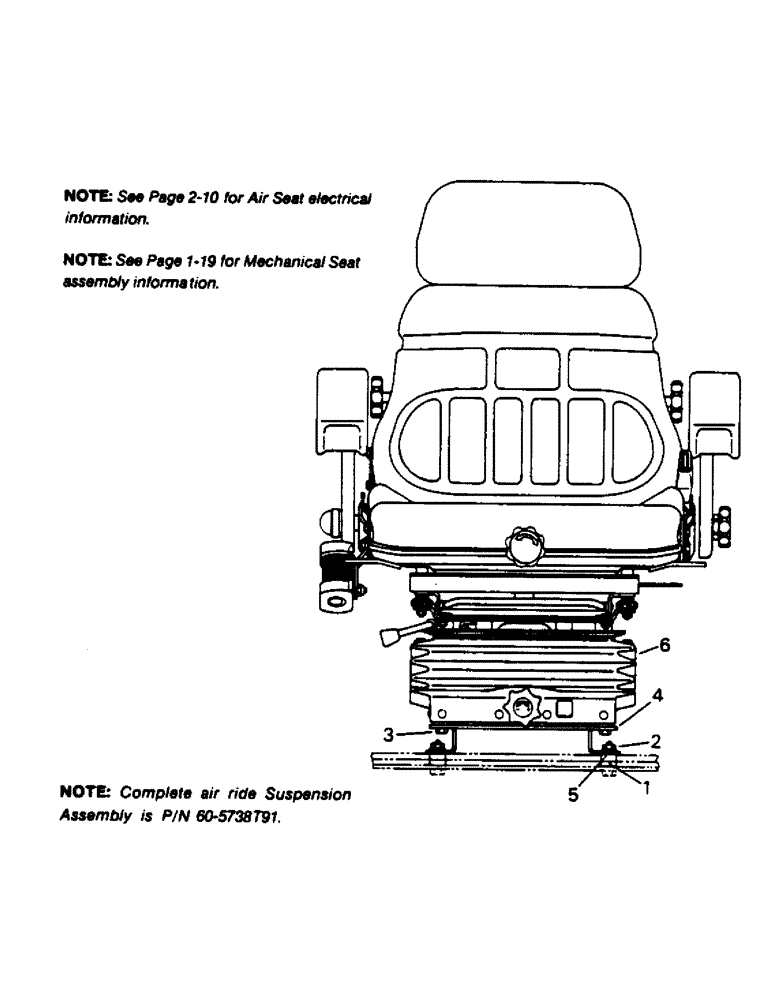

Запчасти Case IH 9130 (01-25) - SEAT AND SUSPENSION, AIR SEAT (10) - CAB

1

60-2286T1

SPACER

- seat, Serial Range: mount-floorboard

4шт.

2

19-82

LOCK NUT

- lock, 1/2 UNC G-B

4шт.

3

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

M8 x 1.25 x 20 MM

4шт.

4

60-4789T2

ANCHOR

MOUNT - seat

1шт.

5

19-463

WASHER,1/2", SAE

- flat, 1/2

4шт.

6

60-5949T91

SEAT

ASSEMBLY - air (With gray cloth upholstery) (See the following 7 Figures)

1шт.

60-4793T91

SEAT ASSY.

SEAT ASSEMBLY - air (With tan cloth upholstery) (See the following 7 Figures)

1шт.
