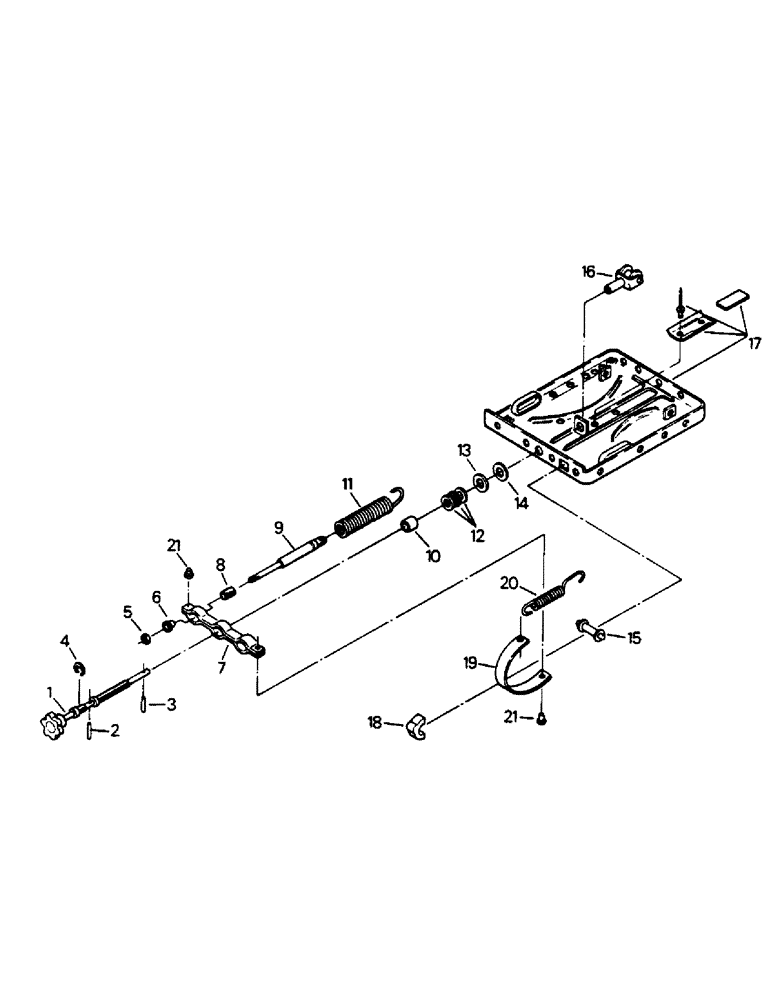

Запчасти Case IH 9130 (01-20) - SEAT ASSEMBLY, LOWER SUSPENSION (10) - CAB

1

60-3202T91

SPINDLE

ASSEMBLY - weight adjustment

1шт.

2

40-1180

PIN

- spring, 4 MM x 20 MM

1шт.

3

40-1179

PIN

- spring, 3 MM x 16 MM

1шт.

4

40-1178

RING

- snap, 15 MM

1шт.

5

43362

NUT,M8 x 1.25, Cl 10

- hex jam, M8

2шт.

6

60-1629T1

NUT

- weld, M8

2шт.

7

60-1583T1

SPRING

YOKE - spring

1шт.

8

60-1630T1

SLEEVE

- threaded

2шт.

9

60-1581T1

SHOCK ABSORBER

- seat

2шт.

10

60-1631T1

TUBE

TUBING - spacer

1шт.

11

60-1595T1

SPRING

- shock absorber

2шт.

12

60-1586T1

BEARING ASSY

ASSEMBLY - thrust

1шт.

13

60-1587T1

WASHER

- flat, M8

1шт.

14

60-1579T1

RUBBER WASHER

- flat, rubber

1шт.

15

60-1580T1

ROLLER

- weight indicator band

1шт.

16

60-3184T1

BEARING ASSY

AND BRACKET ASSEMBLY

1шт.

17

60-1614T1

PLATE

- lower suspension

1шт.

18

60-1584T1

LENS

- magnifier, weight indicator band

1шт.

19

60-1594T1

BAND

- weight indicator

1шт.

20

60-1596T1

SPRING

- weight indicator band

1шт.

21

60-1585T1

FASTENER

- snap, weight indicator band

1шт.
