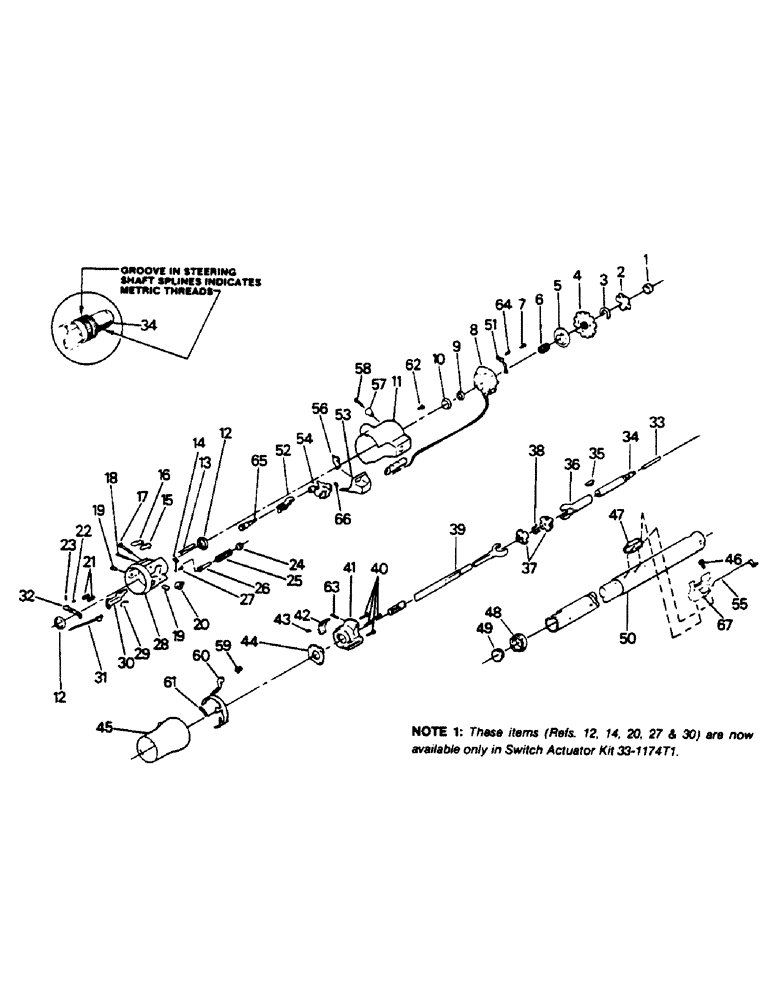

Запчасти Case IH 9130 (01-17) - STEERING COLUMN ASSEMBLY (10) - CAB

1-7630

STEERING COLUMN

COLUMN ASSEMBLY - steering, tilt and telescoping, Includes: Ref. 1 - 68

1шт.

1

1-1320

BUMPER

- retracted steering shaft

1шт.

2

1-1329

RETAINER

- carrier snap ring

1шт.

3

1-1331

RETAINER

- shaft lock

1шт.

4

1-1325

ARRESTER

LOCK - steering shaft

1шт.

5

1-1215

SUPPORT

CARRIER ASSEMBLY

1шт.

6

1-4507

SPRING

- upper bearing

1шт.

7

1-1333

SCREW

3шт.

8

1-4497

SWITCH

ASSEMBLY - turn signal

1шт.

9

1-1336

SEAT

- inner race

1шт.

10

1-1328

SPRING KIT

RACE - inner

1шт.

11

2-1454

HOUSING

COVER - lock housing

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY (See note 1)

1шт.

13

19-5460

LOCK BOLT

BOLT - lock

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - lock bolt (See note 1)

1шт.

15

1-1227

BRAKE SHOE

SHOE - steering wheel lock

1шт.

16

1-1226

BRAKE SHOE

SHOE - steering wheel lock

1шт.

17

1-1225

DRIVE SHAFT

1шт.

18

1-1220

SPLIT PIN/SAFETY PIN

PIN - dowel

1шт.

19

1-4509

PIVOT PIN

PIN, PIVOT

2шт.

20

NSS

NOT SOLD SEPARAT

SECTOR - switch actuator (See note 1)

1шт.

21

1-1301

SPRING

- shoe

2шт.

22

1-1230

SPRING

- release lever

1шт.

23

1-1221

PIN

- release lever

1шт.

24

1-1330

RETAINER

- spring

1шт.

25

1-4508

SPRING

- wheel tilt

1шт.

26

1-1323

GUIDE

- spring

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW (See note 1)

1шт.

28

1-4474

HOUSING ASSY.

HOUSING ASSEMBLY, Includes: Ref. 12-18, 20-23, 27, 29, 30 & 32)

1шт.

29

1-1229

SPRING

- rack preload

1шт.

30

NSS

NOT SOLD SEPARAT

RACK - switch actuator (See note 1)

1шт.

31

1-4465

ACTUATOR

ASSEMBLY - ignition switch

1шт.

32

1-4476

CONTROL LEVER

LEVER - shoe release

1шт.

2-1463

SHAFT

(33-39) SHAFT ASSEMBLY - steering

1шт.

33

1-4488

STEM

ROD - telescope locking

1шт.

34

2-1467

SHAFT

- upper steering

1шт.

35

1-1312

WEDGE

- locking

1шт.

36

1-4487

YOKE

ASSEMBLY - race and steering shaft

1шт.

37

NSS

NOT SOLD SEPARAT

SPHERE - centering

2шт.

Available in kit P/N 33-1175T1 only.

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING - joint preload

1шт.

Available in kit P/N 33-1175T1 only.

1шт.

39

1-4486

STEERING SHAFT

SHAFT ASSEMBLY - yoke and steering

1шт.

40

1-1334

SCREW

- support

4шт.

41

1-4493

SUPPORT ASSY.

SUPPORT - steering column housing, Includes Ref. 42, 43, and 63

1шт.

42

1-4494

FIXING BRACKET

PLATE - shroud retaining

1шт.

43

19-5459

SCREW

- oval head Phillips

1шт.

44

1-1326

LARGE PLATE

PLATE - lock

1шт.

45

1-4504

SHROUD

- steering column housing

1шт.

46

1-1335

SCREW

- washer head

1шт.

47

1-4496

IGNITION SWITCH

SWITCH ASSEMBLY - ignition

1шт.

48

1-4468

ADAPTER

- lower bearing

1шт.

49

1-4467

BEARING ASSY

BEARING ASSEMBLY

1шт.

50

2-1461

COLUMN JACKET

JACKET ASSEMBLY - steering column

1шт.

51

1-4466

ARM ASSY.

ARM ASSEMBLY - signal switch

1шт.

52

1-4498

ACTUATOR

- dimmer switch rod

1шт.

53

1-4469

COVER

CAP - column housing end cover

1шт.

54

2-1452

IGNITION SWITCH

PIVOT ASSEMBLY - switch actuator

1шт.

55

2-1462

THREADED ROD

ROD ASSEMBLY - dimmer switch

1шт.

56

1-4470

SHIELD

- tilt lever opening

1шт.

57

1-4500

BUTTON

KNOB - hazard warning

1шт.

58

19-5456

SCREW,Oval Hd, M3.5

1шт.

59

1-4499

PAD

- release lever finger

1шт.

60

1-4501

LEVER

- key release

1шт.

61

1-4506

SPRING

- key release

1шт.

62

1-6926

SCREW,Cross Oval Hd

- oval head Phillips

3шт.

63

1-6925

DOWEL

Pin

1шт.

64

1-6924

SCREW

1шт.

65

2-1455

PIVOT PIN

PIN - switch activating pivot

1шт.

66

1-6927

SPRING

- pin preload

1шт.

67

1-7739

SWITCH

ASSEMBLY - dimmer

1шт.

68

2-1481

STUD

- dimmer switch

1шт.
