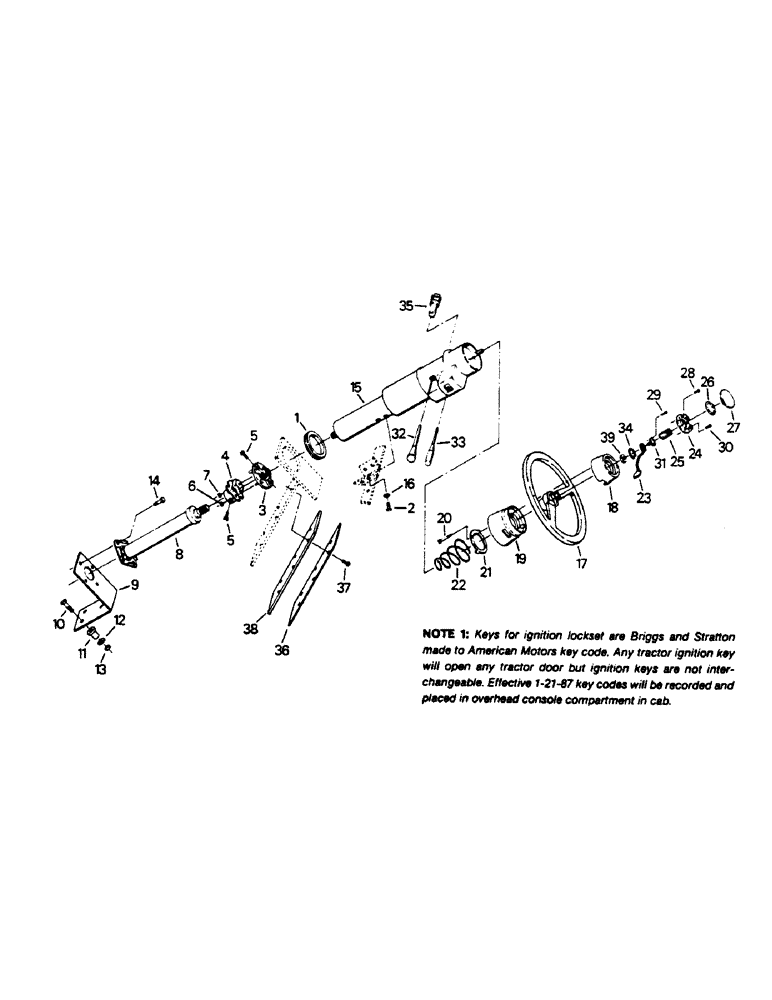

Запчасти Case IH 9130 (01-15) - STEERING COLUMN AND MOUNTING (10) - CAB

1

32-327

GROMMET

steering column

1шт.

2

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

CAPSCREW, M8 x 16 MM

4шт.

(11500763)

4шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

60-4390T91

COUPLING

COUPLER ASSEMBLY - steering, Includes: Ref. 3 - 7

1шт.

3

60-4436T1

FLANGE

COUPLING - steering column

1шт.

4

60-4437T1

FLANGE

- steering shaft

1шт.

5

CAS7807271

SCREW

CAPSCREW - 12 pt

2шт.

6

451399

NUT,5/16"-18, G5, Hvy

5/16 UNF G-B

1шт.

7

9420821

NUT

3/8 UNF G-B

1шт.

8

60-4230T1

STEERING COLUMN

SHAFT - steering

1шт.

9

60-4231T1

SUPPORT

BRACKET - steering shaft mounting

1шт.

10

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 UNC x 1-1/2 G-5

3шт.

11

1-3528

MOUNTING PARTS

MOUNT - bracket, rubber

3шт.

12

19-107

WASHER

- flat, 3/8

3шт.

13

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

3шт.

14

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

4шт.

15

COLUMN ASSEMBLY - steering, See Figure1-17

1шт.

16

19-700

WASHER,5/16"

- flat, 5/16

4шт.

2-3755T92

STEERING WHEEL

WHEEL ASSEMBLY - steering, Includes: Ref. 17 - 22

1шт.

17

60-1827T2

WHEEL (STEERING)

WHEEL - steering

1шт.

18

60-1828T1

CAP

COVER - upper hub

1шт.

19

60-1829T1

COVER

- lower hub

1шт.

20

19-5791

SELF-TAP SCREW,Cross Pan Hd, #6 x 1 1/4"

TAPPING SCREW, no. 6 UNS x 1-1/4

2шт.

21

60-1830T1

RETAINER

- telescoping spring

1шт.

22

60-1831T1

SPRING

- telescoping

1шт.

23

60-1951T1

CONTROL LEVER

LEVER - telescoping release

1шт.

24

60-1819T1

PLATE

- base

1шт.

25

60-1820T1

SPRING

1шт.

26

60-1821T1

CUPEL

CUP - horn contact

1шт.

27

60-1822T1

BUTTON

- horn (With tan interiors)

1шт.

60-5911T1

BUTTON

- horn (With gray interiors)

1шт.

28

260-14436

SELF-TAP SCREW,Cross Pan Hd, #8 x 2 1/4"

TAPPING SCREW, no. 8 UNS x 2-1/4

1шт.

29

488-1104

SCREW,Cross Flat Hd, #10-32 x 1/4"

MACHINE SCREW, no. 10 UNF x 1/4

2шт.

30

9414743

SCREW,Tap, Gr 5

TAPPING SCREW, no. 10 UNS x 5/8

3шт.

31

18-1565

LOCK SCREW,5/16" - 18 x 0.95"

SCREW - telescoping lock

1шт.

32

18-1567T1

CONTROL LEVER

LEVER - tilt actuating

1шт.

33

1-4188T1

CONTROL LEVER

LEVER - blinker, wiper, washer and hi-low beam

1шт.

34

18-1570

RING, SNAP

RETAINER

1шт.

35

22-752

LOCK ASSY

LOCKSET - ignition actuating (See note 1)

1шт.

36

60-4459T1

COVER

PLATE

1шт.

37

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

TAPPING SCREW, 1/4 UNC x 3/4

6шт.

38

60-4751T1

SEAL

FOAM - acoustic

1шт.

39

19-1026

JAM NUT,9/16" - 18, Gr 5

9/16 UNF G-C, Included with Ref. 15

1шт.
