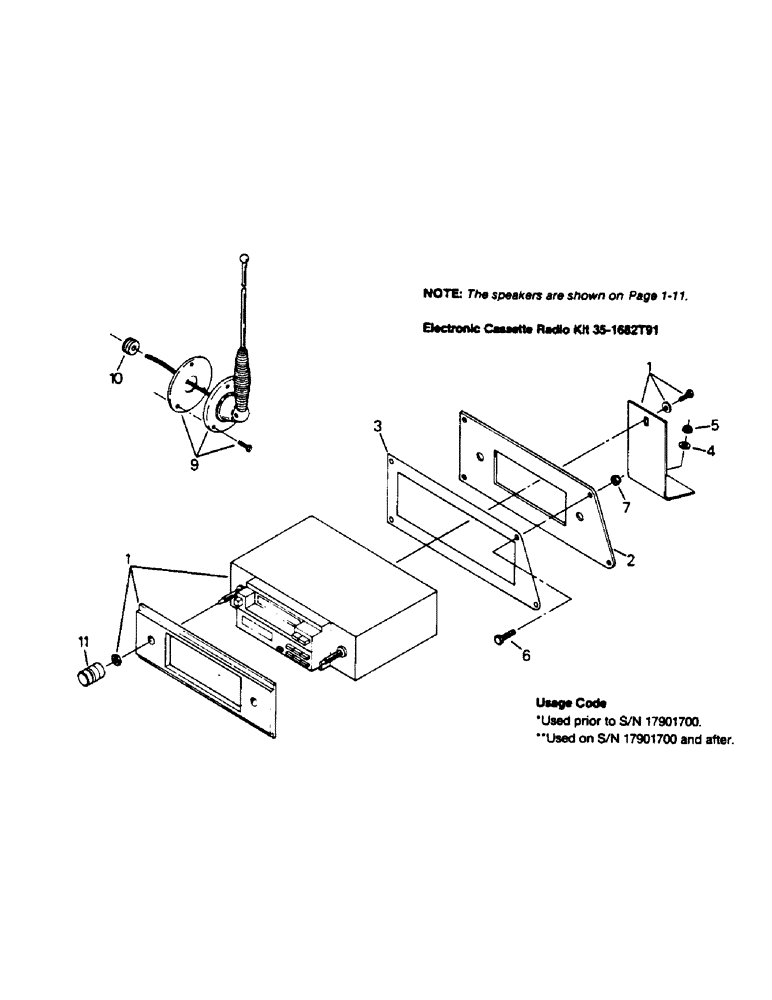

Запчасти Case IH 9130 (01-12) - RADIO AND MOUNTING, ELECTRONIC CASSETTE RADIO (10) - CAB

1

60-5747T1

RADIO

- AM FM stereo, with cassette, Includes: Ref. 11

1шт.

2

60-5749T1

PANEL ASSY.

PANEL - radio mounting

1шт.

3

60-5931T1

DECAL

- radio (For gray interiors)

1шт.

60-4242T1

DECAL

- radio (For tan interiors)

1шт.

4

9421089

WASHER

no. 10 x 1/2 x 1/16 thk

1шт.

5

9411893

LOCK NUT,#10-32, GB

NUT - lock, no. 10 UNF G-A

1шт.

6

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

MACHINE SCREW, no. 8 UNC x 3/4

4шт.

7

19-5621

LOCK NUT,#8-32, GB

NUT - lock, no. 8 UNC G-A

4шт.

8

20-2438T1

HARNESS

- speaker wire (Not shown)

1шт.

9

1-4545

ANTENNA

- radio

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

111237C1

ANTENNA

- radio

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

10

22-766

GROMMET

- antenna lead

1шт.

11

60-5876T1

KIT

KNOB SET (1-4352) (For Panasonic radio)

1шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

60-5878T1

KNOB

SET (For Audiovox radio)

1шт.
