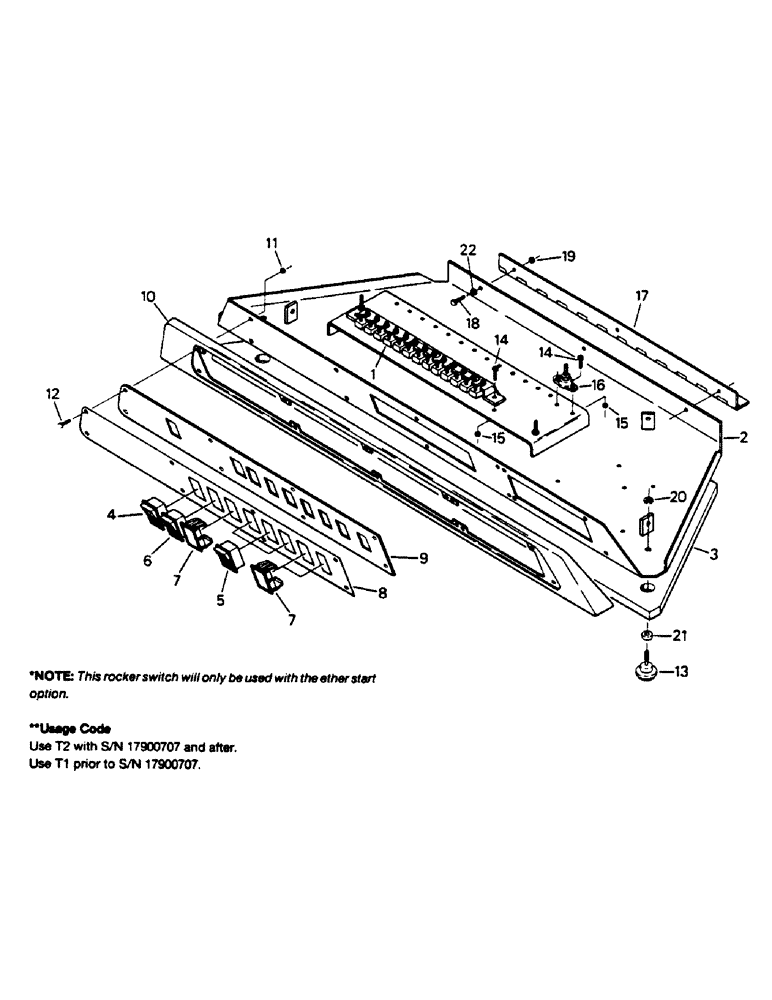

Запчасти Case IH 9130 (01-10) - DELUXE OVERHEAD DOOR (10) - CAB

1

BREAKER ASSEMBLY - circuit, See Figure 2-13

1шт.

2

60-4027T2

DOOR

- console (60-4027T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

3

60-5923T1

NOISE PROTECTION

INSULATION - door (Gray)

1шт.

60-4028T1

INSULATOR

INSULATION - door (Tan)

1шт.

4

1964752C1

SWITCH

- rocker, master light (20-1968T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

5

1964751C1

SWITCH

- rocker, ether start (1-6154)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

6

245012C1

SWITCH

- rocker, dome light, front outlet, rear outlet and dash lights (Quantity 3 without ROPS post gauges)

4шт.

7

60-3210T1

PLUG

- switch hole (Quantity 2 with ether start option, quantity 1 without ROPS post gauges)

3шт.

8

60-5910T1

DECAL

- overhead (With gray interiors and 8 rocker switch openings)

1шт.

60-4031T3

DECAL

- overhead (With tan interiors and 6 rocker switch openings)

1шт.

9

60-4032T2

PANEL

- rocker switch

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

60-4032T1

PANEL

- rocker switch

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

10

60-5928T1

COVER

- console door, (Gray)

1шт.

60-4009T1

COVER

- console door, (Tan)

1шт.

11

19-5621

LOCK NUT,#8-32, GB

NUT - lock, no. 8 UNC G-A

8шт.

12

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

- machine, no. 8 UNC x 3/4

8шт.

13

60-4033T1

BUTTON

KNOB ASSEMBLY

2шт.

14

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNF x 1/2

4шт.

15

19-481

SERRATED NUT

- Keps, no. 10 UNF G-A

4шт.

16

20-1451T1

BLOCK

JUNCTION BLOCK

1шт.

17

60-4034T1

HINGE

- console door

1шт.

18

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 1/2 G-5

3шт.

19

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

3шт.

20

2-7333T1

WASHER

RING - snap (19-6130)

2шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

21

19-6126

SPACER

2шт.

22

19-105

WASHER,1/4", SAE

- flat, 1/4

3шт.
